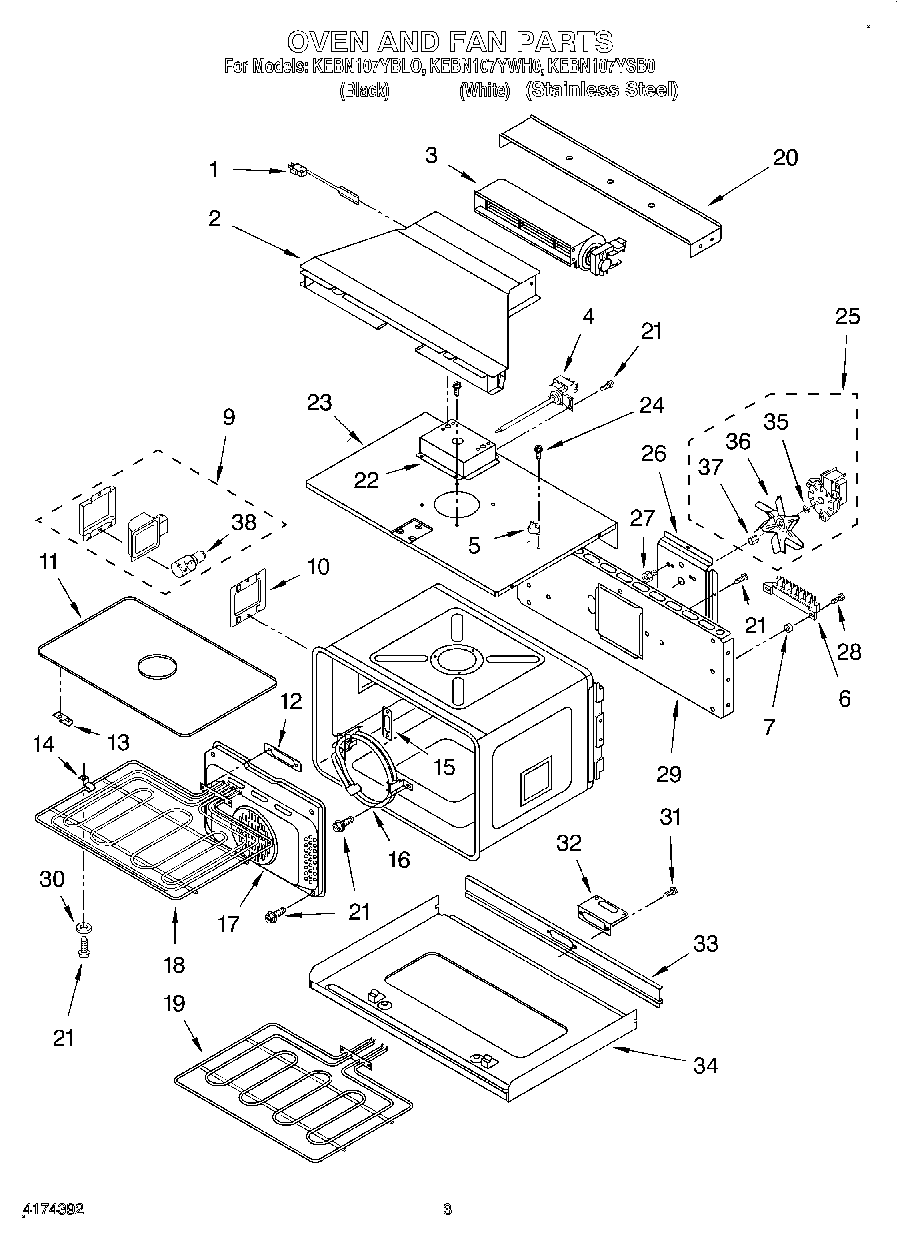

KEBN107YSB0 02 – OVEN AND FAN

KEBN107YSB0 02 – OVEN AND FAN

Written by

in

KEBN107YSB0 02 – OVEN AND FAN

Products

Position	Product
1	Microswitch
2	Channel, Cooling
3	Fan, Cooling
4	Thermostat, Fixed
5	Thermostat
6	Terminal Block
7	Spacer
9	Holder, Lamp & Bulb
10	Frame, Light
11	Reflector, Top Elements
12	Seal, Top Element
13	Reflector, Spring Fixing
14	Clamp
15	Seal, Ring Element
16	Element, Ring
17	Carter, Fan
18	Element, Top & Broil
19	Element, Down
20	Cover, Fan
21	Screw
22	Support
23	Cover, Cavity
24	Screw
25	Fan
26	Support, Fan
27	Screw
28	Screw
29	Liner Cover, Rear
30	Washer
31	Screw
32	Bracket, Element
33	Trim, Element
34	Support, Element
35	E-Ring
36	Fan
37	Nut (Left Hand)
38	Bulb, Light
