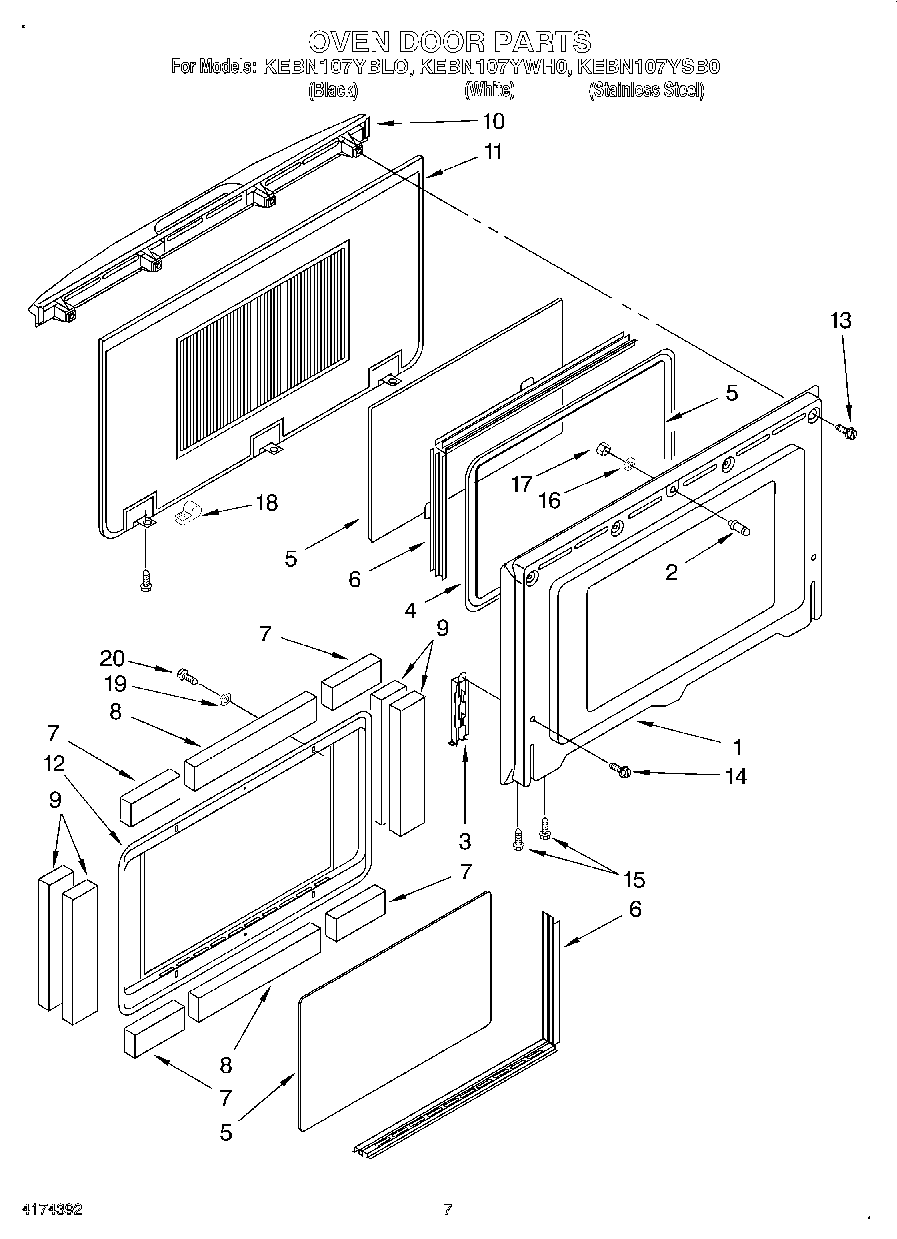

KEBN107YSB0 04 – OVEN DOOR

KEBN107YSB0 04 – OVEN DOOR

Written by

in

KEBN107YSB0 04 – OVEN DOOR

Products

PositionProduct
1Frame, Door
2Pin, Locking
3Hinge Slot
4Seal, Door
5Glass
6Spacer, Two-Sides
7Insulation, Corner
8Insulation, Center
9Insulation, Side
10Handle, Door (Black Model)
10Handle, Door (White Model)
11Glass, External (Black Model)
11Glass, External (White, Model)
12Reflector
13Screw
14Screw
15Screw
16Washer
17Nut
18Slip, Screw
19Washer
20Screw
