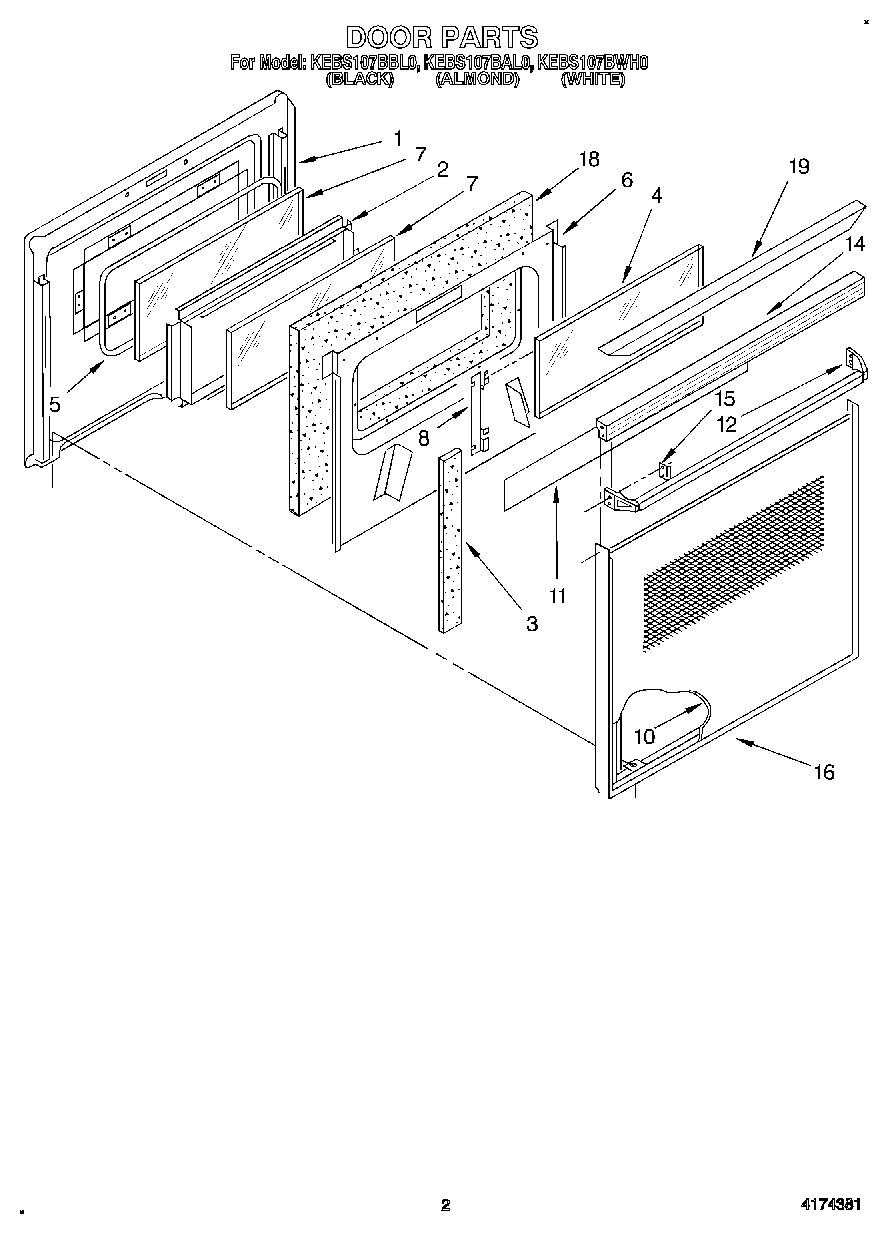

KEBS107BAL0 02 – DOOR

Products

Position	Product
1	Liner, Door
2	Frame, Inner
3	Seal, Flange (2)
4	Screw
4	Glass, Clear
5	Seal, Door
6	Screw
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
10	Glass, Panel (White Model)
10	Glass, Panel (Black Model)
10	Glass, Panel (Almond Model)
11	Foil, Door
12	Handle, Door (Almond)
12	Handle, Door (Black)
12	Handle, Door (Screw (4))
12	Handle, Door (White)
14	Top, Door (Black Model)
14	Top, Door (White Model)
15	Clip, Mtg (2)
15	Back Splash (Screw (4) 10AB x 1/2“)
16	Frame, Panel (White Model)
16	Frame, Panel (Black Model)
16	Frame, Door (Almond Model)
18	Insulation, Door
19	Cap, Top (White Model)
19	Cap, Top (Black Model)
19	Cap, Top Door (Almond Model)
