KEBS107BAL0 04 – OVEN, LITERATURE

Products

Position	Product
	Installation Instructions
	WPL LIT3188199
	Tech Sheet
	Cookbook T/C Oven
	Guide, Auto Set

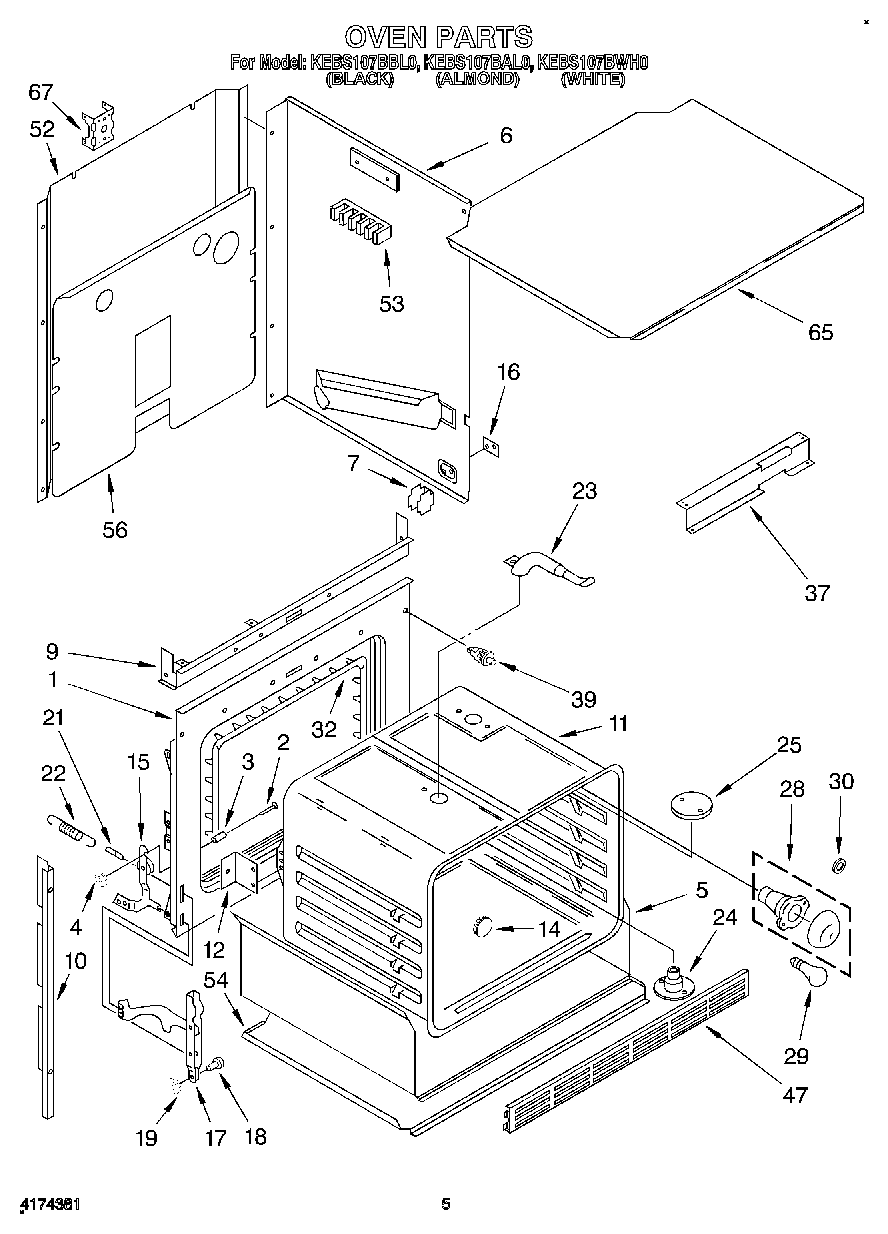

1	Front Frame
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (L.H.)
6	Side Wrapper (R.H.)
7	Support, Side Wrapper (4)
9	Baffle, Top Insulation
10	Side Trim (Black Model, L.H.)
10	Side Trim (White Model, R.H.)
10	Side Trim (Black Model, R.H.)
10	Side Trim (White Model, LH)
10	Side Trim (Almond Model, LH)
10	Side Trim (Almond Model, RH)
11	Screw (3)
11	Oven (30“ Pyro)
12	Bracket, Oven Mounting (2)
14	WPL 3185086
15	Hinge, Ear (Right Side)
15	Hinge, Ear (Left Side)
16	Plate, Side Panel (2)
16	WP308544 Whirlpool Screw
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	Tube, Vent
23	SCREW
24	Eliminator, Smoke
25	WPL 310662
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
30	WP3184533 Whirlpool Range Light Lens Gasket
32	WPL 3185197
37	screw
37	Bracket, Mounting Control Frame
39	Switch, Door
47	Bottom Grill (Almond)
47	Grill, Bottom (White)
47	Grill, Bottom (Black)
52	WPL 3185961
52	Screw
53	Screw (10-12 x .875)
53	WP8203546 Whirlpool Terminal Block
53	WP112432 Whirlpool Nut Assembly
54	Cover, Bottom
56	WP488729 Whirlpool Refrigerator Door Screw
56	Panel, Back
65	Cover, Top
67	Plate, Mounting (Fan Motor)
67	WPL 310435
67	WPL 3149328
67	WPL 310433
67	WPL 3171507
