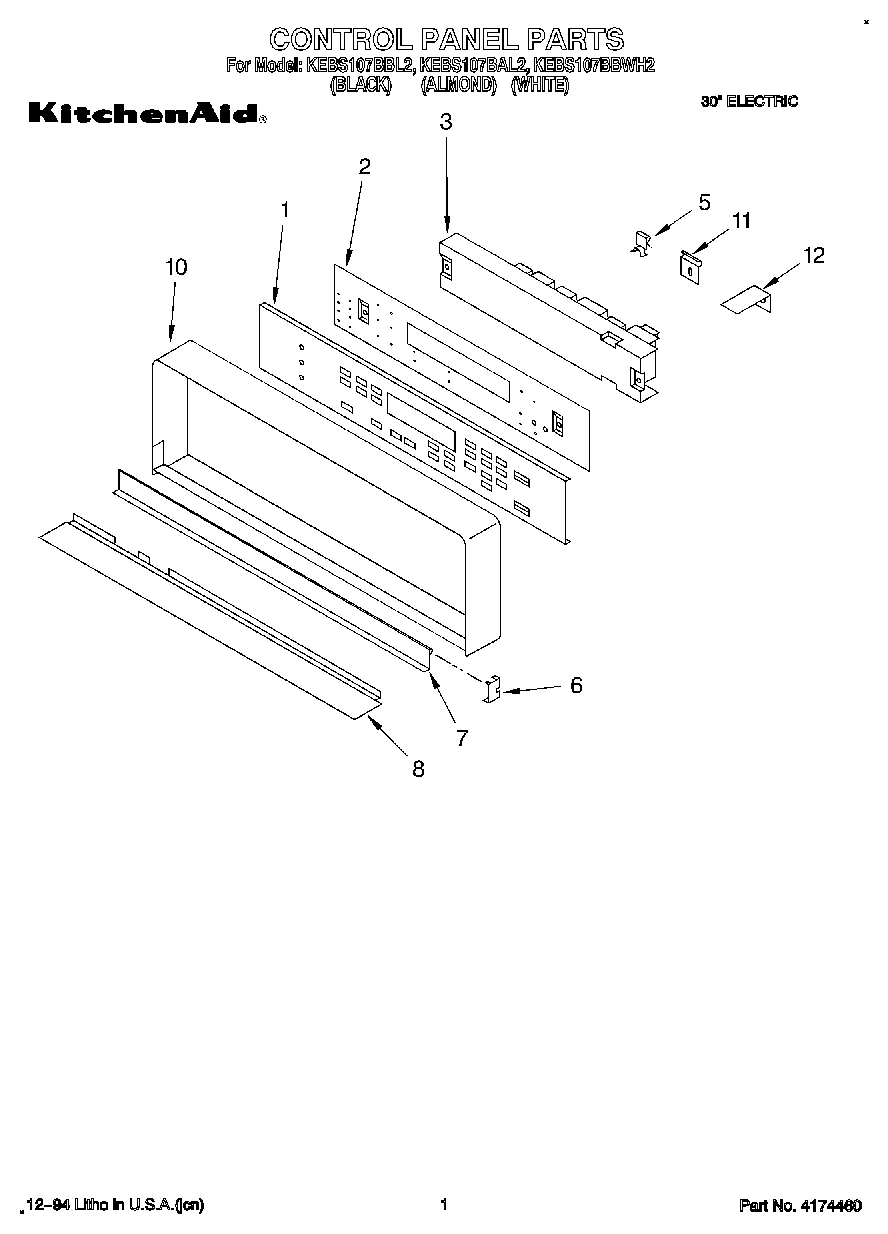

KEBS107BAL2 01 – CONTROL PANEL

Products

PositionProduct
1Switch, Membrane (Almond)
1Switch, Membrane (White)
1Switch, Membrane (Black)
2Bracket, Mounting Switch Membrane
3Microcomputer
5Clip, Retainer (3)
6Trim, Door (2)
7Door, Latch Handle (Black)
7Door, Latch Handle (White)
7Door, Latch Handle (Screw (2))
7Door, Latch handle (Almond)
8Trim, Panel
10Frame, Control Panel (Almond Model)
10Frame, Control Panel (White Model)
10Frame, Control Panel (Black Model)
11Screw
11Clip, Control Frame
12Screw (2)
12Bracket (2)
