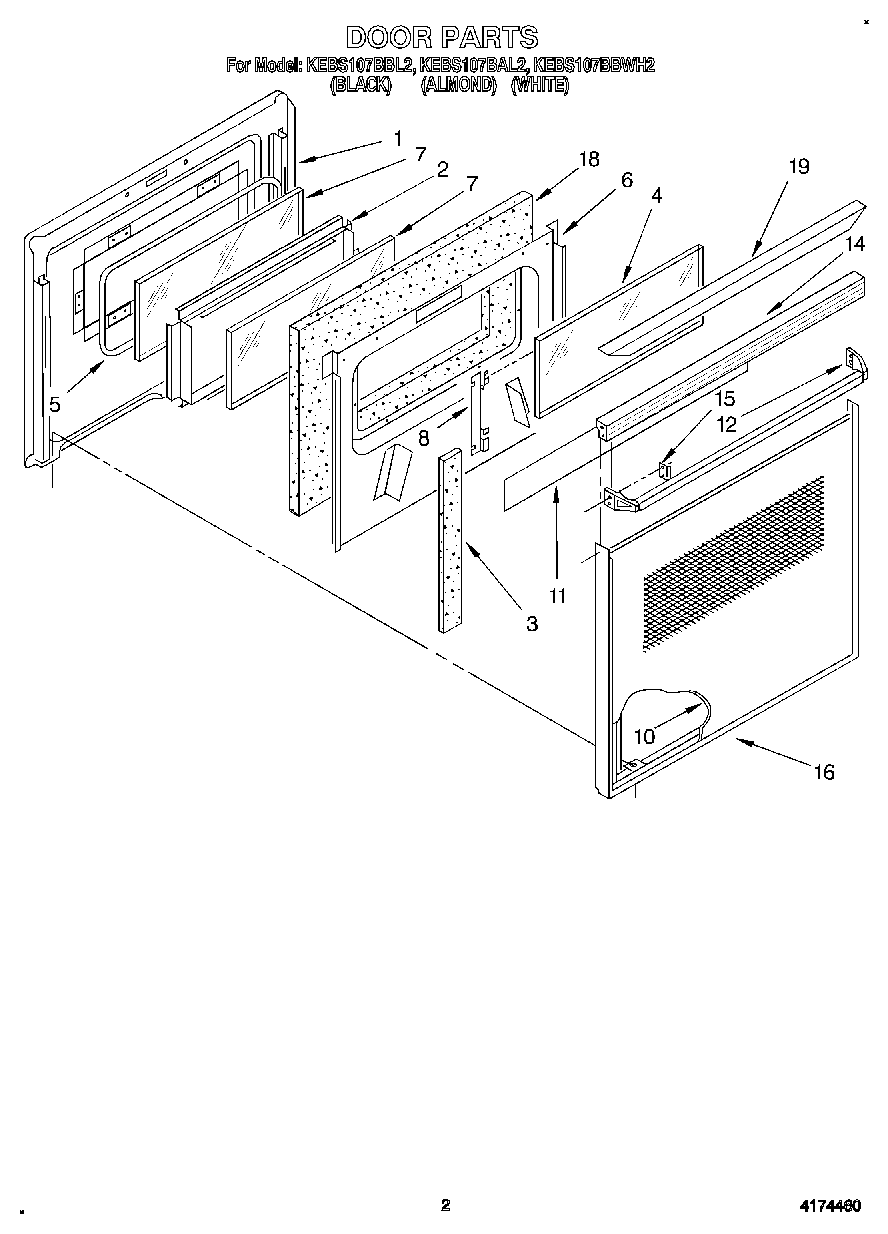

KEBS107BAL2 02 – DOOR

Products

Position	Product
1	Screw
1	Liner, Door
2	Frame, Inner
3	Seal, Flange (2)
4	Screw
4	Glass, Clear
5	Seal, Door
6	Retainer,
6	Screw
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
10	Glass, Panel (Almond Model)
10	Glass, Panel (White Model)
10	Glass, Panel (Black Model)
11	Foil, Door
12	Handle, Door (Screw (4))
12	Handle, Door (Black)
12	Handle, Door (White)
12	Handle, Door (Almond)
14	Top, Door (Black Model)
14	Top, Door (White Model)
15	Back Splash (Screw (4) 10AB x 1/2“)
15	Clip, Mtg (2)
16	Frame, Panel (Black Model)
16	Frame, Panel (White Model)
16	Frame, Door (Almond Model)
18	Insulation, Door
19	Cap, Top (White Model)
19	Cap, Top (Black Model)
19	Cap, Top Door (Almond Model)
