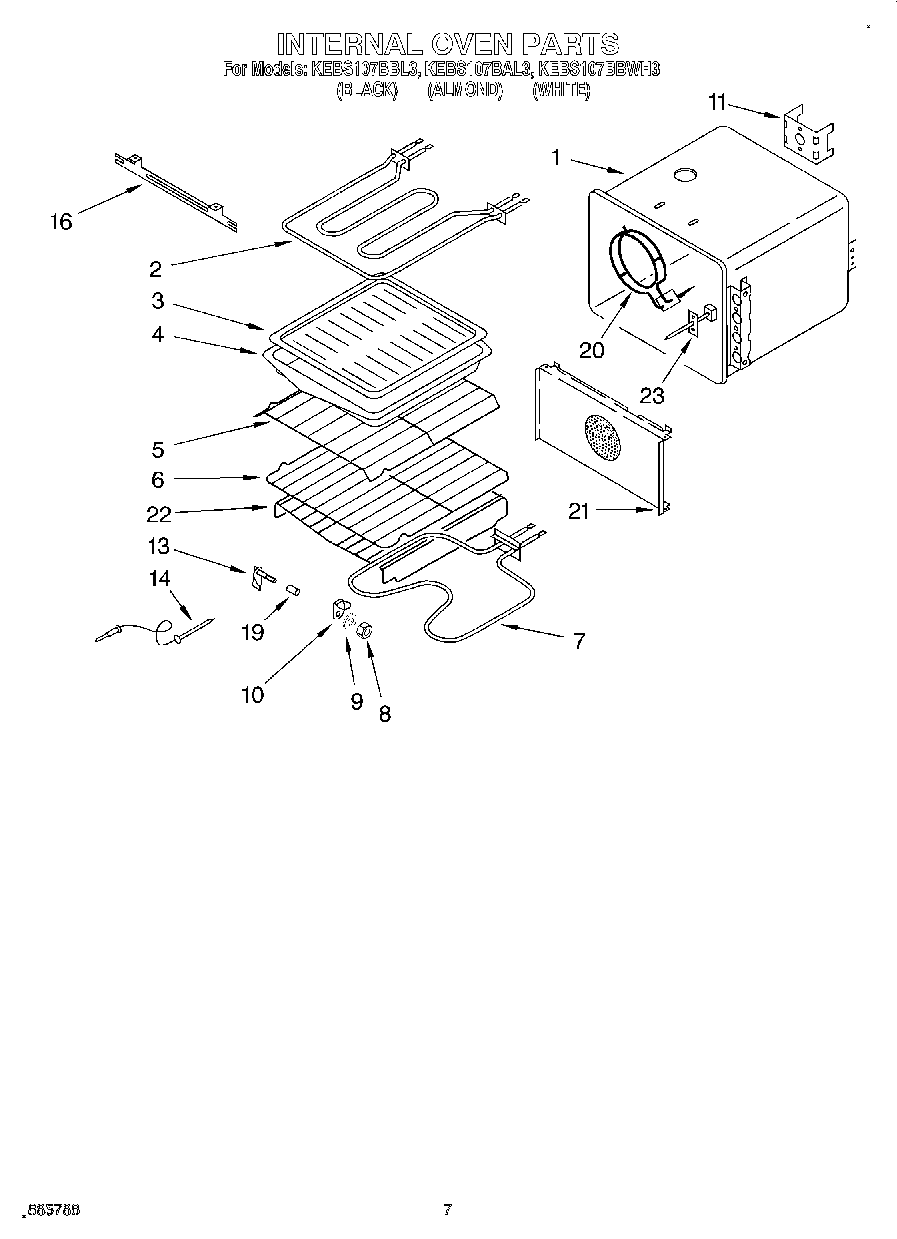

KEBS107BAL3 05 – INTERNAL OVEN

Products

Position	Product
1	Oven (30`` Pyro)
2	Element, Broil
3	4396923 Whirlpool Broil Pan Set Gray Porcelain
5	Rack, Offset
6	Rack, Straight
7	WP661416 Whirlpool Bake Element
8	Lock-Nut, Cvr.Jack
9	Gasket, Meat Probe
10	Jack Cover
11	Bracket, Support Motor
13	Receptacle, Probe
14	Probe
16	Screw (2)
16	Bracket, Element
19	Spacer - Tubing
20	Element, Convection
21	Cover, Fan
22	Rack, Roasting
23	Screw (3)
23	Sensor, Heat
