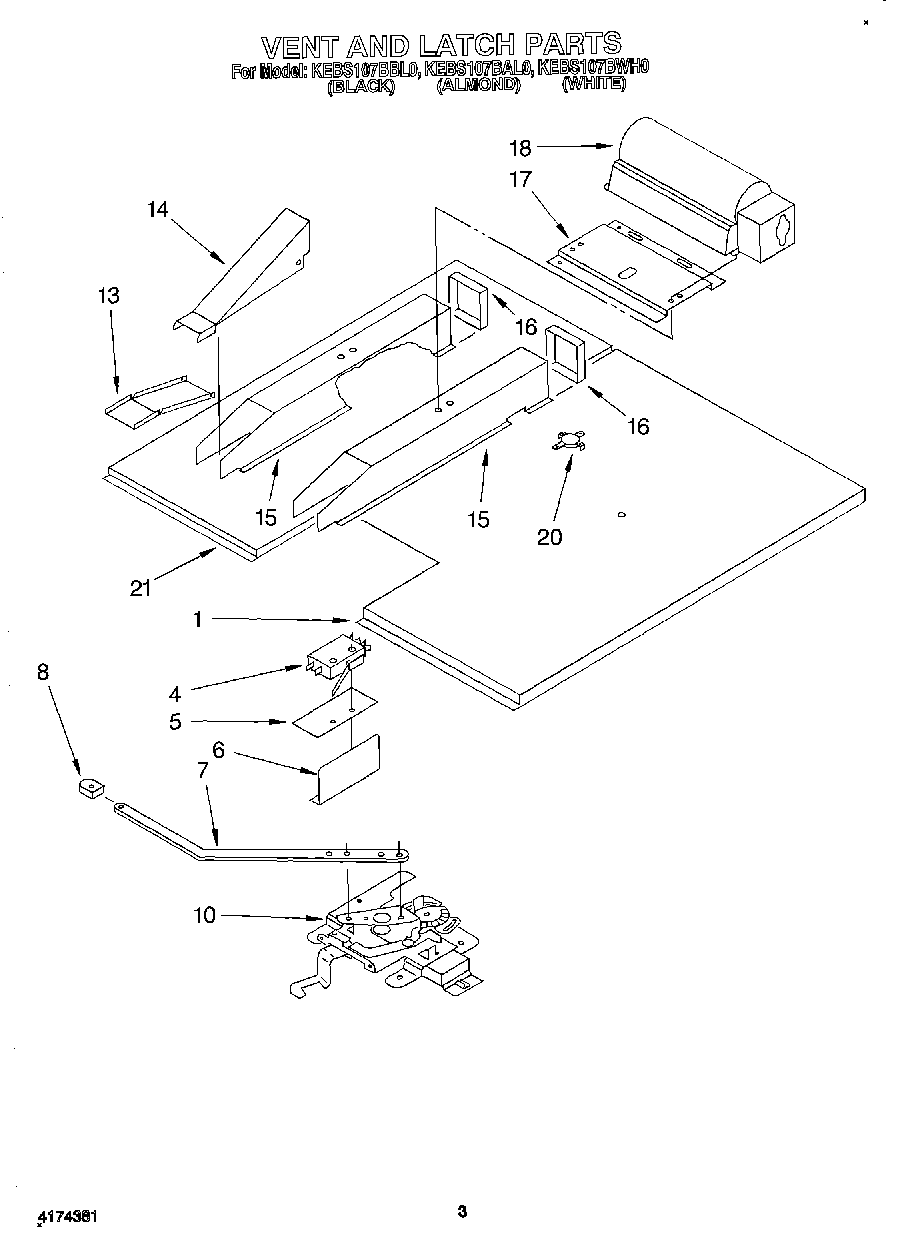

KEBS107BBL0 03 – VENT AND LATCH

Products

PositionProduct
1Baffle, Vent
4Switch, Latch
5Screw
5Insulator, Switch
6Screw
6Shield, Latch
7Screw
7Handle, Latch
8Knob, Latch Handle
8Screw
10Latch Mechanism
13Nozzle, Vent Bottom
14Nozzle, Vent Top
15Screw
15Box, Vent (2)
16End, Vent Box
17Bracket, Mounting
17WP3177991 Whirlpool Screw
18Blower, fan
20SPST Thermostat
21Baffle, Vent Mtg.
21WP488729 Whirlpool Refrigerator Door Screw
