KEBS107BWH3 04 – OVEN, LITERATURE

Products

Position	Product
	WPL LIT3188199
	Installation Instructions
	Tech Sheet
	Video, K/A T/C Ovens
	Guide, Auto Set
	Literature Parts (Cookbook (T/C Oven))

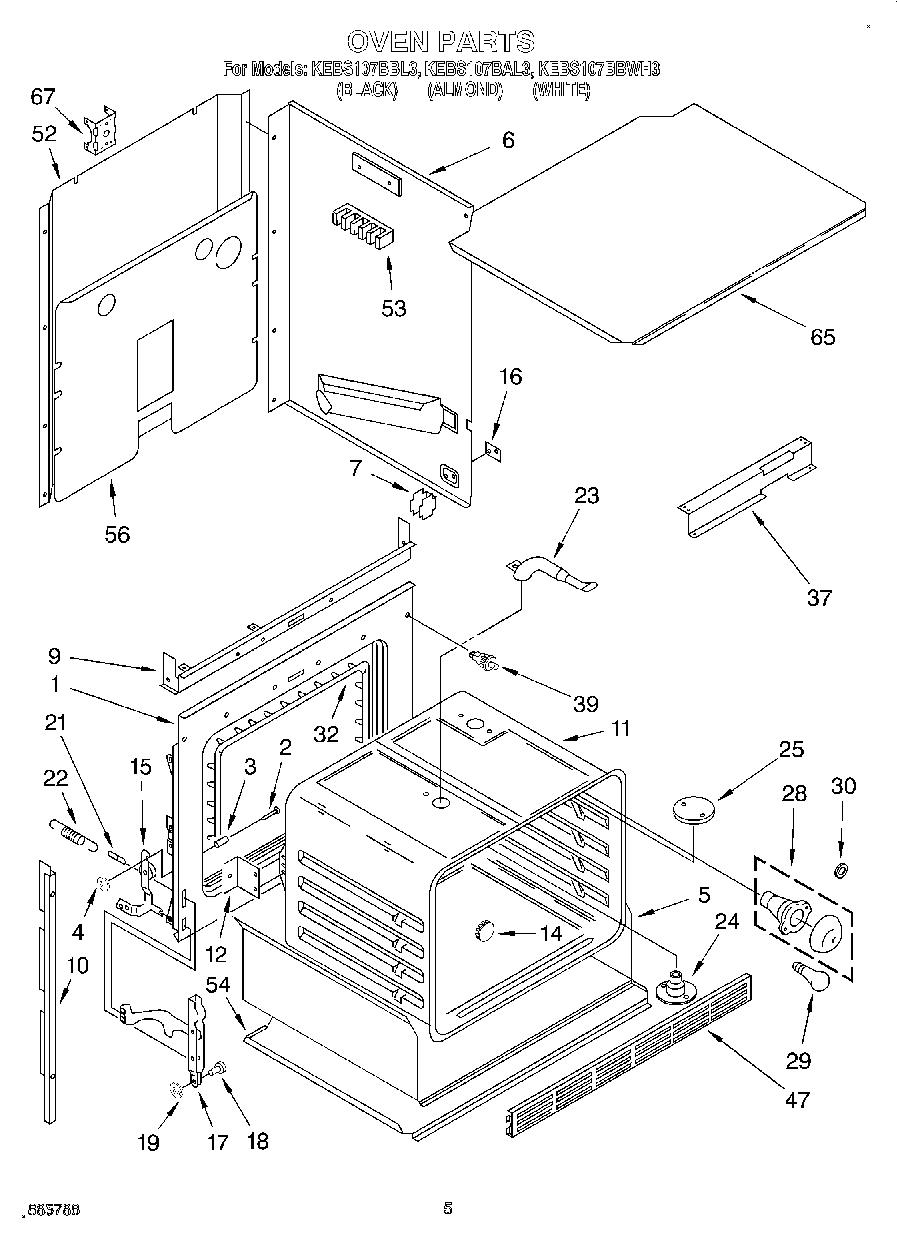

1	Frame Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (R.H.)
6	Side Wrapper (L.H.)
7	Support, Side Wrapper (4)
9	Baffle, Top Insulation
10	Side Trim (Black Model, LH)
10	Side Trim (Almond Model, LH)
10	Side Trim (Almond Model, RH)
10	Side Trim (White Model, R.H.)
10	Side Trim (Black Model, RH)
10	Side Trim (White Model, LH)
11	Oven (30“ Pyro)
11	Screw (3)
12	Bracket, Oven Mounting (2)
14	WPL 3185086
15	Hinge, Ear (Right Side)
15	Hinge, Ear (Left Side)
16	WP308544 Whirlpool Screw
16	Plate, Side Panel (2)
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	SCREW
23	Tube, Vent
24	Tube, Vent
25	WPL 310662
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
30	WP3184533 Whirlpool Range Light Lens Gasket
32	WPL 3185197
37	screw
37	Bracket, Mounting Control Frame
39	Switch, Door
47	Bottom Grill (Almond)
47	Grill, Bottom (Black)
47	Grill, Bottom (White)
52	WPL 3185961
53	WP112432 Whirlpool Nut Assembly
53	Screw (10-12 x .875)
53	WP8203546 Whirlpool Terminal Block
54	Cover, Bottom
56	Panel, Back
56	WP488729 Whirlpool Refrigerator Door Screw
65	Cover, Top
67	WPL 4454421
67	Plate, Mounting (Fan Motor)
67	WPL 3171507
67	WPL 3149328
