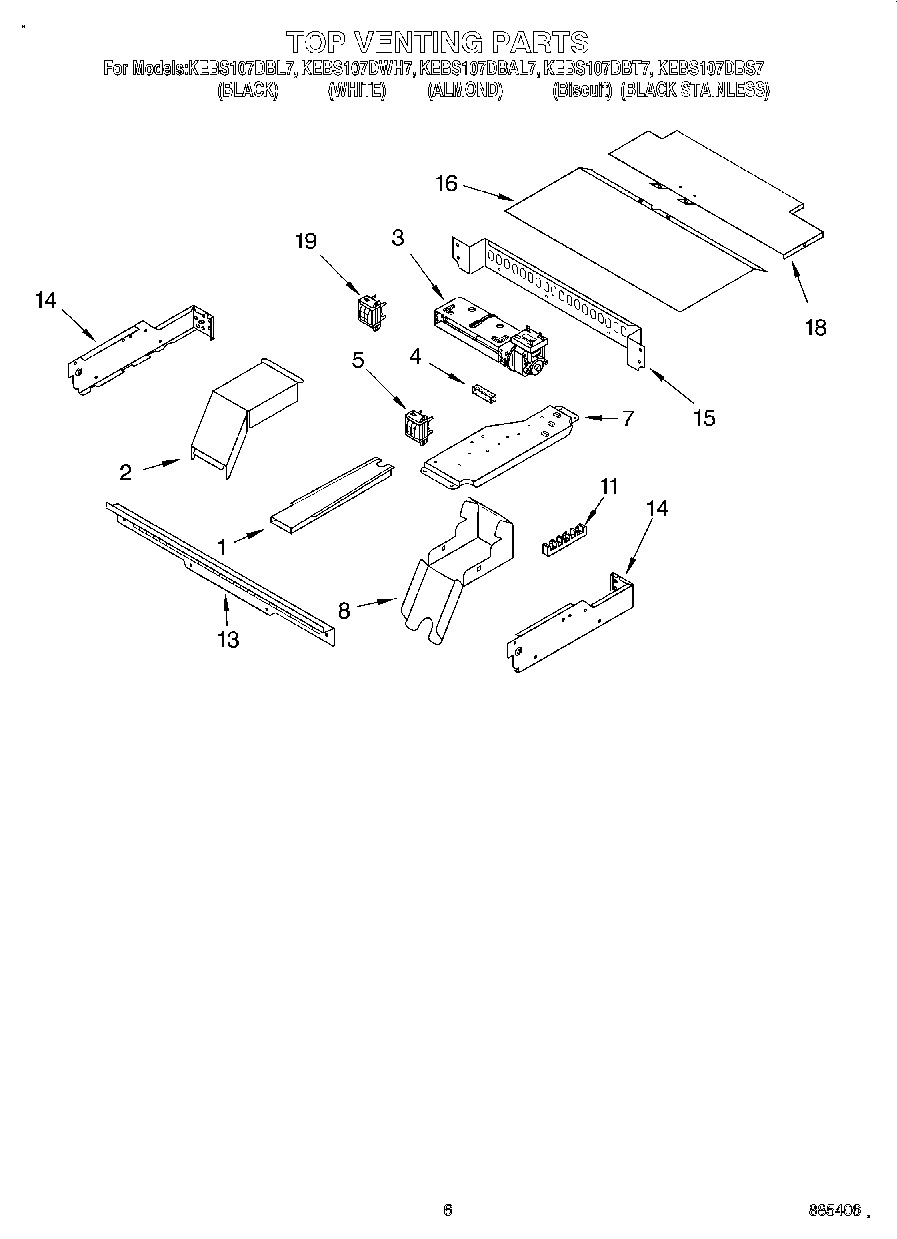

KEBS107DAL7 05 – TOP VENTING, OPTIONAL

KEBS107DAL7 05 – TOP VENTING, OPTIONAL

Written by

in

KEBS107DAL7 05 – TOP VENTING, OPTIONAL

Products

PositionProduct
14451759 Whirlpool Oven Exhaust Vent
24455178 Whirlpool Oven Top Elbow
3WPW10016550 Whirlpool Blower Cooling Fan
4W10491987 Whirlpool Foam Seal
5WP9760588 Whirlpool Transformer
7Plate, Mounting
84455177 Whirlpool Oven Bottom Elbow
11WP3387230 Whirlpool Screw
11WP8203546 Whirlpool Terminal Block
13WP4450038 Whirlpool Screw
13Vent, (Control Panel)
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
14WP4449154 Whirlpool Screw
15Back, Control
16WP4450551 Whirlpool Top Cabinet
18WP4452367 Whirlpool Top Cover
19Wire (14 Ga. 200 c Brown)
19Transformer, Control
1918 Ga. 80~c Rating (Red)
19WPL 591014
19WP4449809 Whirlpool Screw
191
19Harness, Wire (Main)
1972017 Whirlpool Appliance Touch-Up Paint White
194451761 Whirlpool Oven Support Bracket
19WP4450952 Whirlpool Conduit
19WP112432 Whirlpool Nut Assembly
19350930 Whirlpool White Spray Paint
19261900 Whirlpool Microwave Spray
19Wire (12 Ga. 150 c Black)
194392899 Whirlpool Biscuit Touch-Up Paint
194392901 Whirlpool Biscuit Spray Paint
19WP4448950 Whirlpool Screw
19814381 Whirlpool Pin
19Wire, 25“ Roll (White 14 GA.)
19WP482338 Whirlpool Refrigerator Adhesive
1972032 Whirlpool Touch Up Paint Black
19285006 Whirlpool Spray
19WPW10339879 Whirlpool Wire Tie
194450800 Whirlpool Oven Screw
19Wire, 25` Roll (Red 14 Ga.)
19Spacer, Harness
19Wire (14 Ga. 150 c Yellow)
19Wire (14 Ga. 150 c Orange)
19Wire (14 Ga. 150 c Green)
19Wire, 25` Roll (Black 14 Ga.)
19Wire (14 Ga. 150 c Brown)
19Wire (14 Ga. 150 c Blue)
19WP261869 Whirlpool Microwave Paint
19242831 Whirlpool Oven Wire
194448664 Whirlpool Oven Mounting Bracket
