KEBS107DBS11 01 – OVEN, LITERATURE

KEBS107DBS11 01 – OVEN, LITERATURE

Written by

in

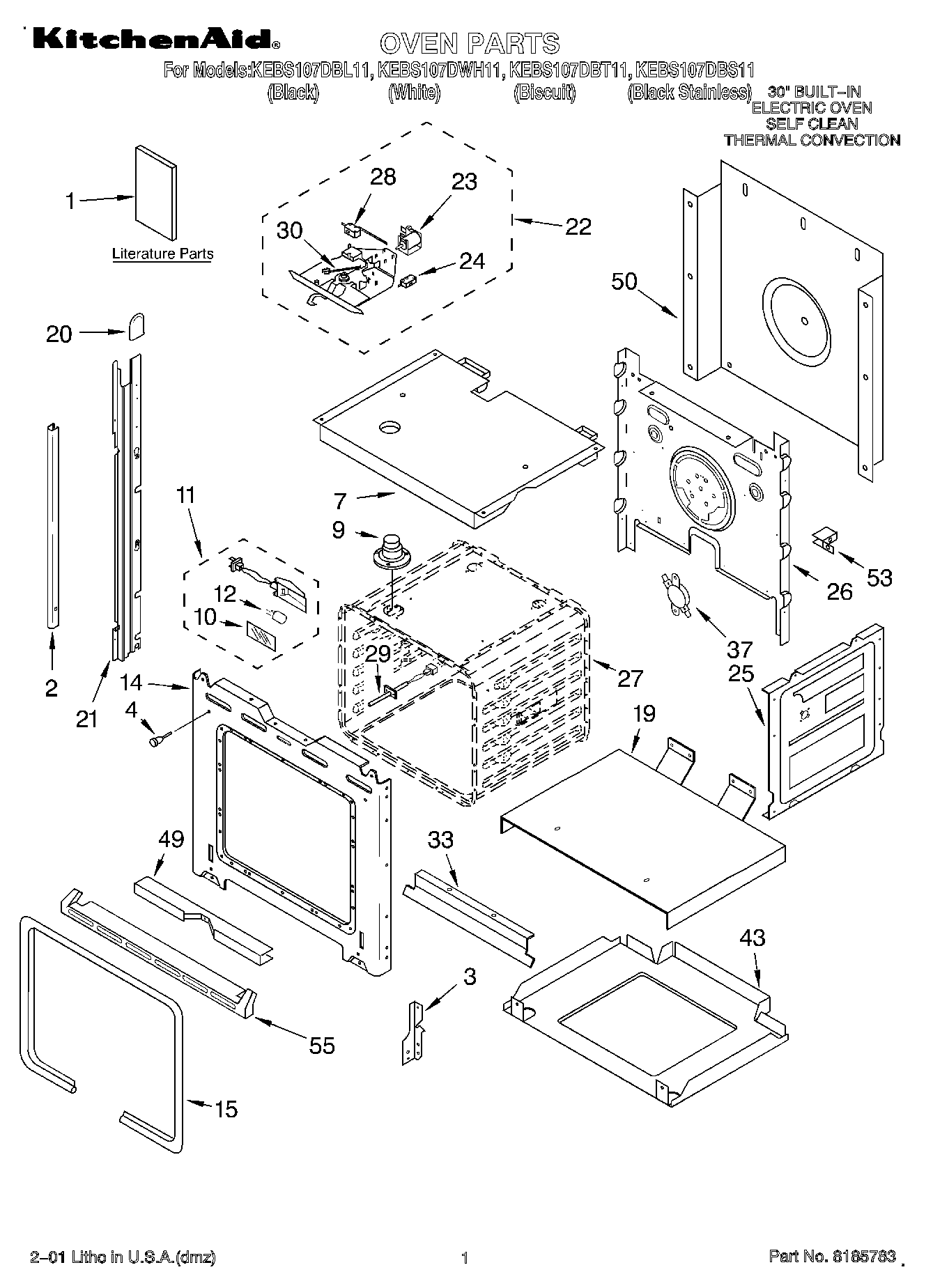

KEBS107DBS11 01 – OVEN, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Easy Set Guide)
1Literature Parts (Installation/ Undercounter)
1Literature Parts (Installation/ MWO Trim Kit)
1Literature Parts (Installation Instructions)
1Literature Parts (Tech Sheet)
1Literature Parts (Use & Care Guide)
2Trim, Side (LH Biscuit)
2WP8281236 Whirlpool Screw
2Trim, Side (RH Biscuit)
2Trim, Side (LH White Screw)
2Trim, Side (White)
2Trim, Side (LH Black)
2Trim, Side (White, Right)
2Trim, Side (RH Black)
3Reciever, Hinge (Left Hand)
3Reciever, Hinge (Right Hand)
44448520 Whirlpool Oven Bumper
7Top, Chassis
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WP4448972 Whirlpool Oven Light
114449748 Whirlpool Oven Screw
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
14Screw
14Frame, Front
14WP4450118 Whirlpool Nut
15W11675844 Whirlpool Oven Gasket
19Support, Insulation
20Cap, Spacer
21814372 Whirlpool Oven Rail Mount
21814371 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
22Latch Assembly
23Solenoid
24Microswitch N.C.
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner,
28Microswitch
29WPW10131825 Whirlpool Oven Temperature Sensor
30Spring, Latch
33WPL 4451619
37WP9759242 Whirlpool Thermostat
43WPL 4455530
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
53WPL 4449845
53WP4449809 Whirlpool Screw
55WPL 4452415
55WP3400832 Whirlpool Screw
55WPL 4450365
55WPL 4448477
55W11684730 Whirlpool Insulation
55WPL 4448478
