KEBS107DBS8 02 – OVEN DOOR
Written by
in

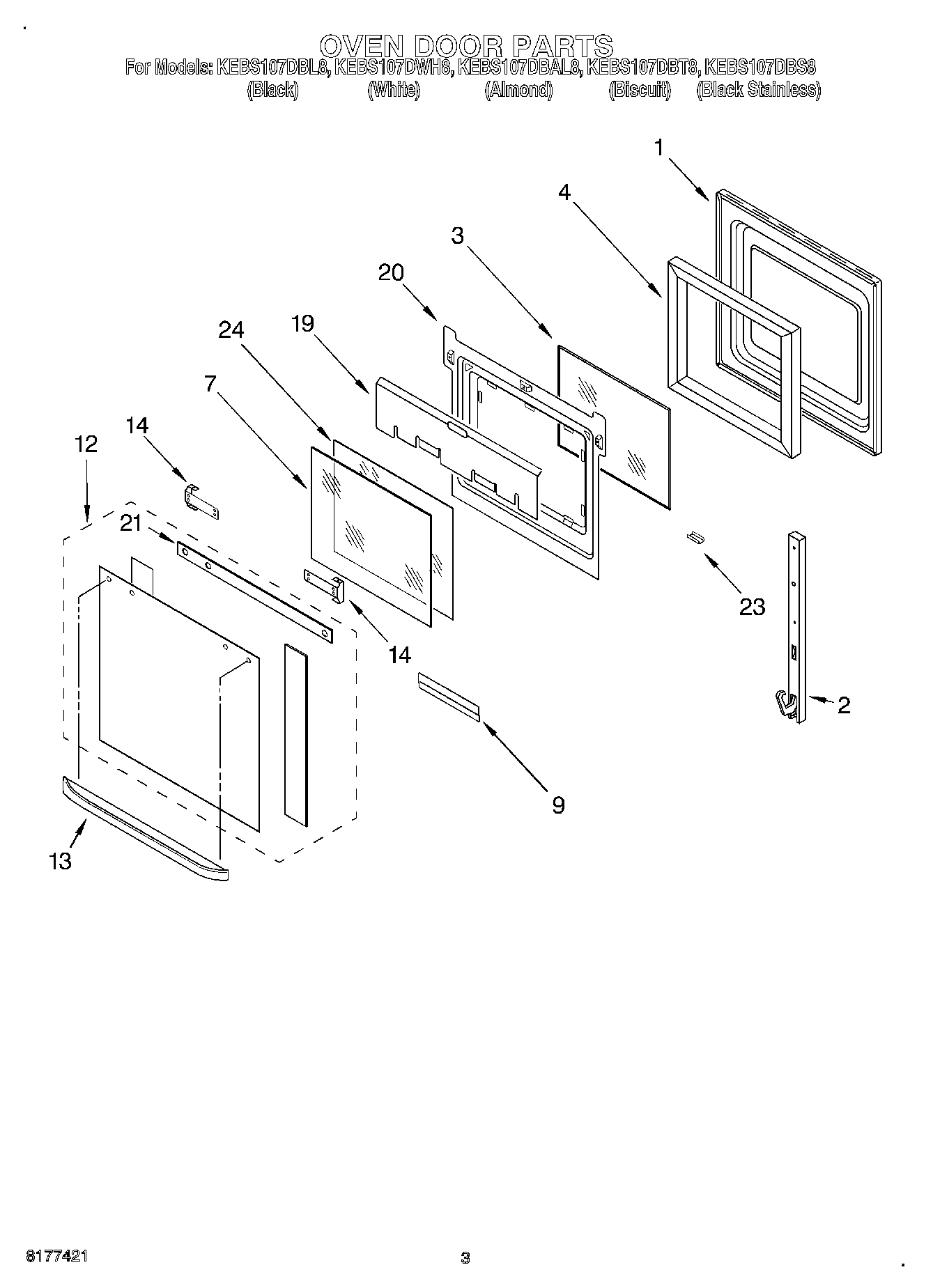

KEBS107DBS8 02 – OVEN DOOR
Products
Position
Product
1
WP9759413 Whirlpool Door Liner
2
WP4449743 Whirlpool Screw
2
WP4455525 Whirlpool Oven Door Hinge
2
WP4455524 Whirlpool Door Hinge
3
WP4449259 Whirlpool Glass Window
4
WP4451722 Whirlpool Door Insulation Assembly
7
WP4449263 Whirlpool Inner Door Glass
9
Retainer, Glass
12
Door Glass, Assy (Biscuit Model)
12
Door Glass, Assy (Almond Model)
12
Door Glass, Assy (Black-Stainless)
12
Door Glass, Assy (White Model)
12
WP9759641 Whirlpool Outer Door Glass
13
Handle, Door (Almond Model)
13
Handle, Door (Biscuit)
13
Handle, Door (White Model)
13
Door Handle (Black Model)
14
Screw
14
Bracket, Handle
19
Shield, Heat
20
Retainer, Glass
20
WP4449809 Whirlpool Screw
21
Seal, Door Top
23
RETAINER,GLASS CLIP (BISCUIT)
23
Retainer, Clip (Almond Model)
23
Clip, Retainer (White Model)
23
Clip, Retainer (Black Model)
24
Glass, Inner
←
