KEBS107DSS8 01 – OVEN, LITERATURE

KEBS107DSS8 01 – OVEN, LITERATURE

Written by

in

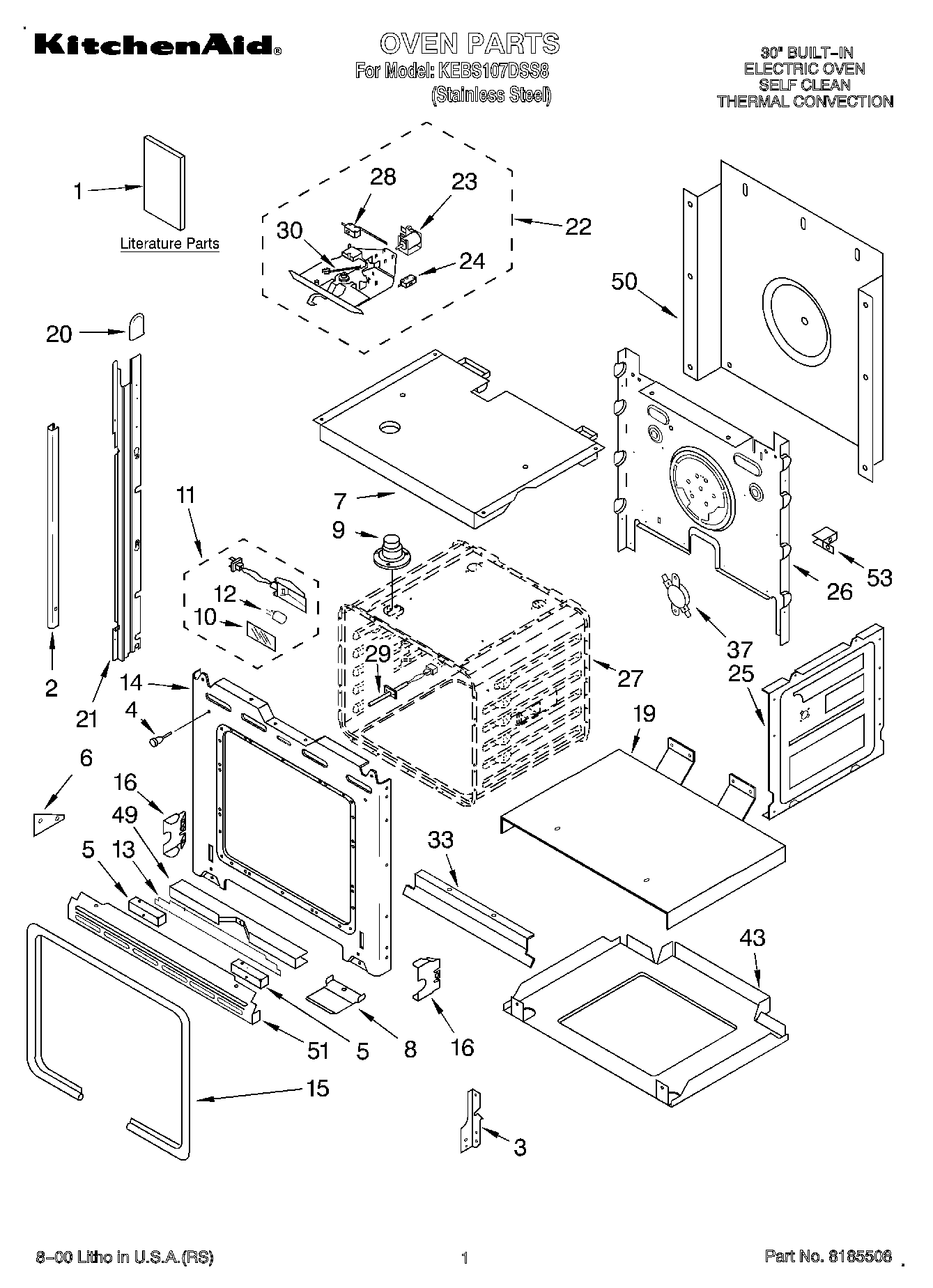

KEBS107DSS8 01 – OVEN, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Installation/ Undercounter)
1Literature Parts (Easy Set Guide)
1Literature Parts (Installation/ MWO Trim Kit)
1Literature Parts (Tech Sheet)
1Literature Parts (Cookbook (T/C Oven))
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide)
2WPW10144983 Whirlpool Trim
2WP694091 Whirlpool Screw
2W10144984 Whirlpool Trim
3Reciever, Hinge (Right Hand)
3Reciever, Hinge (Left Hand)
44448520 Whirlpool Oven Bumper
5Spacer, Foam
6WP4455509 Whirlpool Support Bracket
7Top, Chassis
8W10145009 Whirlpool Vent Deflector
9W10861715 Whirlpool Vent Tube
10Lens, Light
114449748 Whirlpool Oven Screw
11WP4448972 Whirlpool Oven Light
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13Insulation Bottom Vent
14Screw
14WP4450118 Whirlpool Nut
14Frame, Front
15W11675844 Whirlpool Oven Gasket
16Trim, Bottom (Screw)
164452152 Whirlpool Oven Mounting Bracket
19Support, Insulation
20Cap, Spacer
21814371 Whirlpool Oven Rail Mount
21814372 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
22Latch Assembly
23Solenoid
24Microswitch N.C.
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
28Microswitch
29Sensor
30Spring, Latch
339760677 Whirlpool Oven Vent Deflector
37WP9759242 Whirlpool Thermostat
43WPL 4455530
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
51WPL 4455147
53WPL 4449845
53WP4449809 Whirlpool Screw
53WPL 4450365
53W11684730 Whirlpool Insulation
