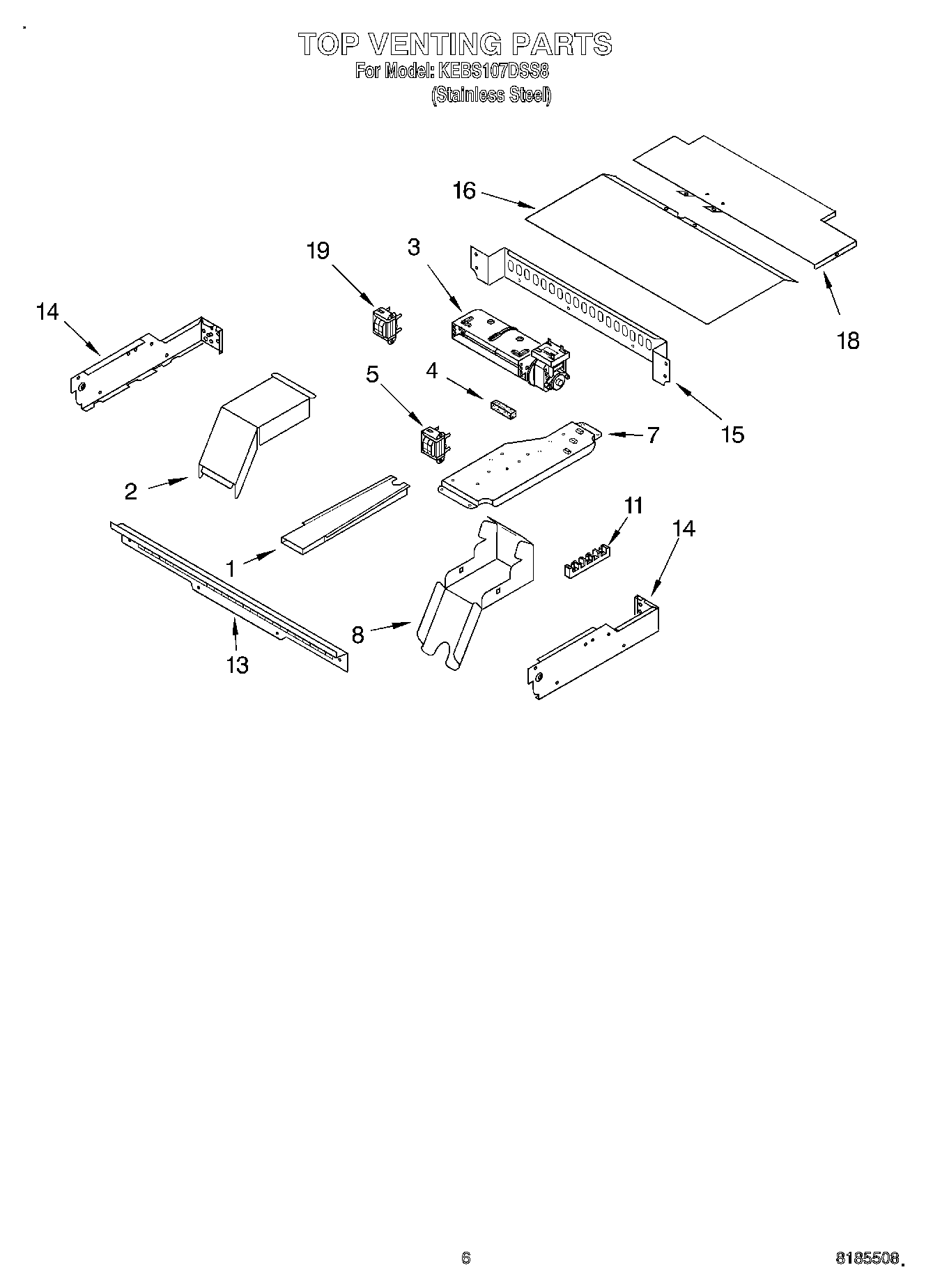

KEBS107DSS8 05 – TOP VENTING, OPTIONAL

KEBS107DSS8 05 – TOP VENTING, OPTIONAL

Written by

in

KEBS107DSS8 05 – TOP VENTING, OPTIONAL

Products

PositionProduct
14451759 Whirlpool Oven Exhaust Vent
24455178 Whirlpool Oven Top Elbow
3WP4455352 Whirlpool Mounting Bracket
3Blower
4W10491987 Whirlpool Foam Seal
5WP9760588 Whirlpool Transformer
7Plate, Mounting
84455177 Whirlpool Oven Bottom Elbow
11WP3400016 Whirlpool Screw Assembly
11WP8203546 Whirlpool Terminal Block
13Vent, Control Panel
13Screw, (2)
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
14WP4449154 Whirlpool Screw
15Back, Control
16WP4450551 Whirlpool Top Cabinet
18WP4452367 Whirlpool Top Cover
19261900 Whirlpool Microwave Spray
19Wire (12 Ga. 150 c Black)
1918 Ga. 80~c Rating (Red)
19Wire (14 Ga. 200 c Brown)
191
19Transformer, Control
19Wire, 25` Roll (Black 14 Ga.)
19WPL 591014
19WP4450952 Whirlpool Conduit
194451761 Whirlpool Oven Support Bracket
19Harness, Wire (Main)
19Wire (14 Ga. 150 c Yellow)
19285006 Whirlpool Spray
19WPW10339879 Whirlpool Wire Tie
194450800 Whirlpool Oven Screw
194448664 Whirlpool Oven Mounting Bracket
19Wire, 25“ Roll (White 14 GA.)
19Wire, 25` Roll (Red 14 Ga.)
19WP112432 Whirlpool Nut Assembly
19WP4449809 Whirlpool Screw
1972017 Whirlpool Appliance Touch-Up Paint White
1972032 Whirlpool Touch Up Paint Black
19WP482338 Whirlpool Refrigerator Adhesive
19814381 Whirlpool Pin
19Wire (14 Ga. 150 c Orange)
19Wire (14 Ga. 150 c Green)
19Wire (14 Ga. 150 c Brown)
19Wire (14 Ga. 150 c Blue)
19WP261869 Whirlpool Microwave Paint
19242831 Whirlpool Oven Wire
19Spacer, Harness
194452400 Whirlpool Microwave Wire Harness
19WP4448950 Whirlpool Screw
19350930 Whirlpool White Spray Paint
