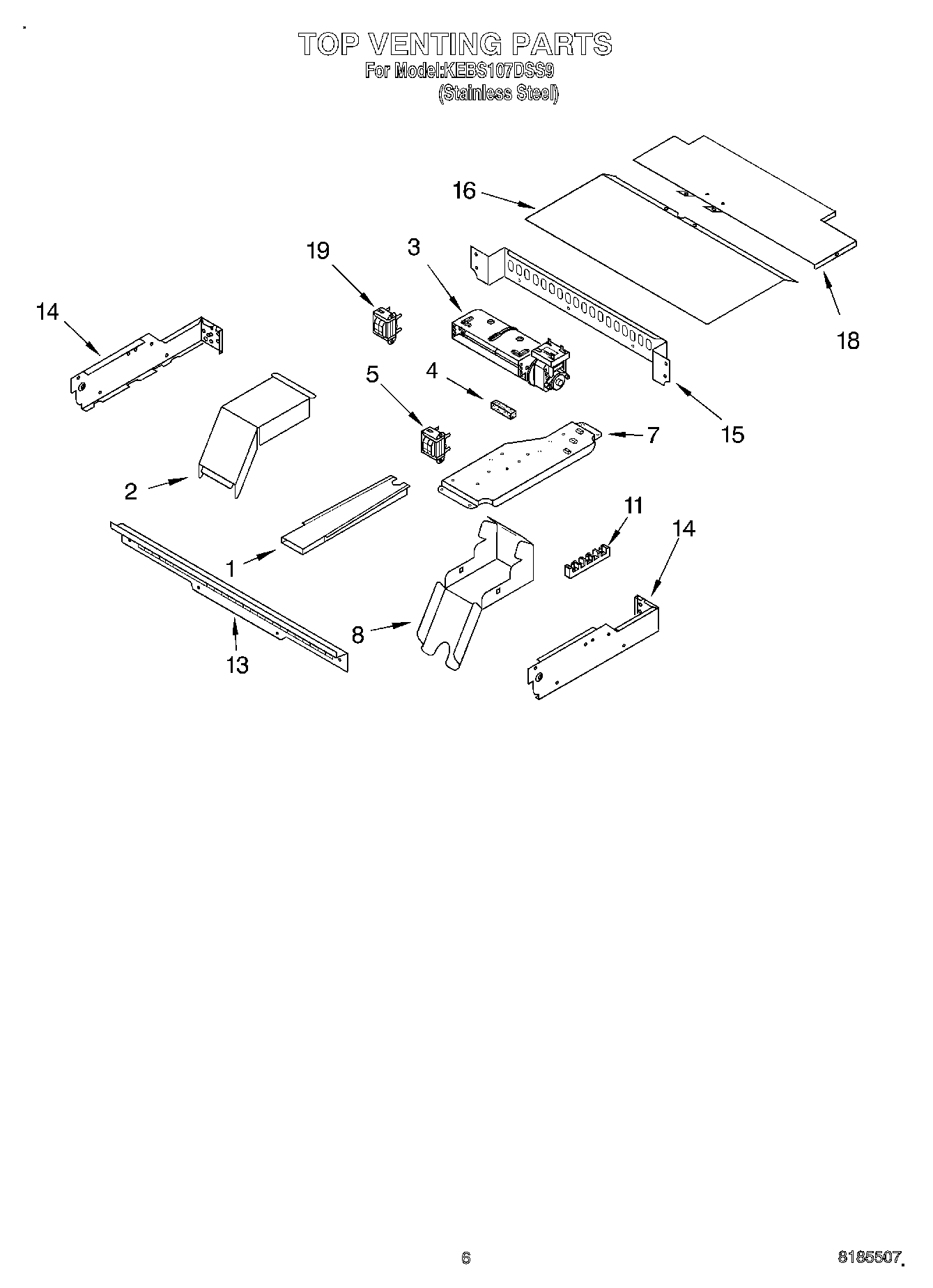

KEBS107DSS9 05 – TOP VENTING, OPTIONAL

Products

Position	Product
1	4451759 Whirlpool Oven Exhaust Vent
2	4455178 Whirlpool Oven Top Elbow
3	WP4455352 Whirlpool Mounting Bracket
3	Blower
4	W10491987 Whirlpool Foam Seal
5	WP9760588 Whirlpool Transformer
7	Plate, Mounting
8	4455177 Whirlpool Oven Bottom Elbow
11	Screw
11	WP8203546 Whirlpool Terminal Block
13	Vent, Control Panel
13	Screw, (2)
14	W10790240 Whirlpool Side Assembly Complete
14	W10755214 Whirlpool Side Complete
14	WP4449154 Whirlpool Screw
15	Back, Control
16	WP4450551 Whirlpool Top Cabinet
18	WP4452367 Whirlpool Top Cover
19	261900 Whirlpool Microwave Spray
19	Wire (12 Ga. 150 c Black)
19	18 Ga. 80~c Rating (Red)
19	Wire (14 Ga. 200 c Brown)
19	1
19	Transformer, Control
19	Wire, 25` Roll (Black 14 Ga.)
19	WPL 591014
19	WP4450952 Whirlpool Conduit
19	4451761 Whirlpool Oven Support Bracket
19	Harness, Wire (Main)
19	Wire (14 Ga. 150 c Yellow)
19	285006 Whirlpool Spray
19	WPW10339879 Whirlpool Wire Tie
19	4450800 Whirlpool Oven Screw
19	4448664 Whirlpool Oven Mounting Bracket
19	Wire, 25“ Roll (White 14 GA.)
19	Wire, 25` Roll (Red 14 Ga.)
19	WP112432 Whirlpool Nut Assembly
19	WP4449809 Whirlpool Screw
19	72017 Whirlpool Appliance Touch-Up Paint White
19	72032 Whirlpool Touch Up Paint Black
19	WP482338 Whirlpool Refrigerator Adhesive
19	Wire (14 Ga. 150 c Orange)
19	Wire (14 Ga. 150 c Green)
19	Wire (14 Ga. 150 c Brown)
19	Wire (14 Ga. 150 c Blue)
19	WP261869 Whirlpool Microwave Paint
19	242831 Whirlpool Oven Wire
19	Spacer, Harness
19	WP4448950 Whirlpool Screw
19	814381 Whirlpool Pin
19	350930 Whirlpool White Spray Paint
