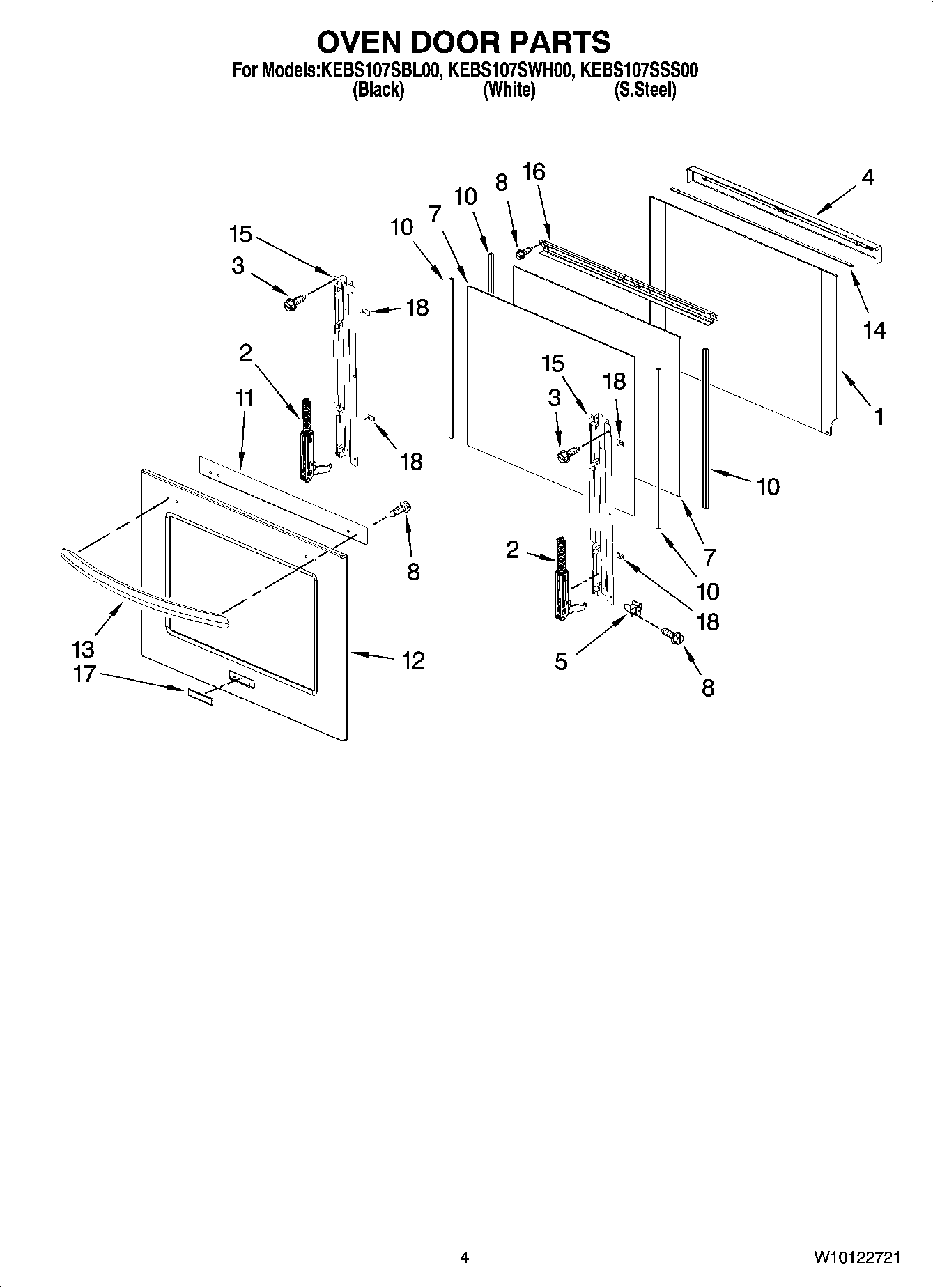

KEBS107SWH00 03 – OVEN DOOR PARTS

Products

Position	Product
1	W10755522 Whirlpool Door Glass
2	Hinge, Door (2)
3	WP3196183 Whirlpool Screw
4	Vent, Door Top
5	Bracket, Door (Right)
5	8304378 Whirlpool Oven Support Bracket
7	Glass, Inner
8	WP4449743 Whirlpool Screw
10	W10754409 Whirlpool Seal
11	Bracket, Handle
12	Door Glass, Assy Lower Includes 17 (White)
12	Door Glass, Assy Lower Includes 17 (Black)
12	Door Glass, Assy Upper No Nameplate (White)
12	Door Glass, Assy Upper No Nameplate (Stainless)
12	Door Glass, Assy Upper No Nameplate (Black)
12	Door Glass, Assembly
13	Door Handle
13	Handle, Door (Black)
13	Handle, Door (White)
14	W10754473 Whirlpool Seal
15	Frame, Door Side
15	Frame-Door Side (2) (Starfire Blue Flk)
15	Frame-Door Side (2) (Blue-Grey Flk)
16	8303746 Whirlpool Bracket Support
17	Nameplate (Lower Door)
18	Bumper, Glass
