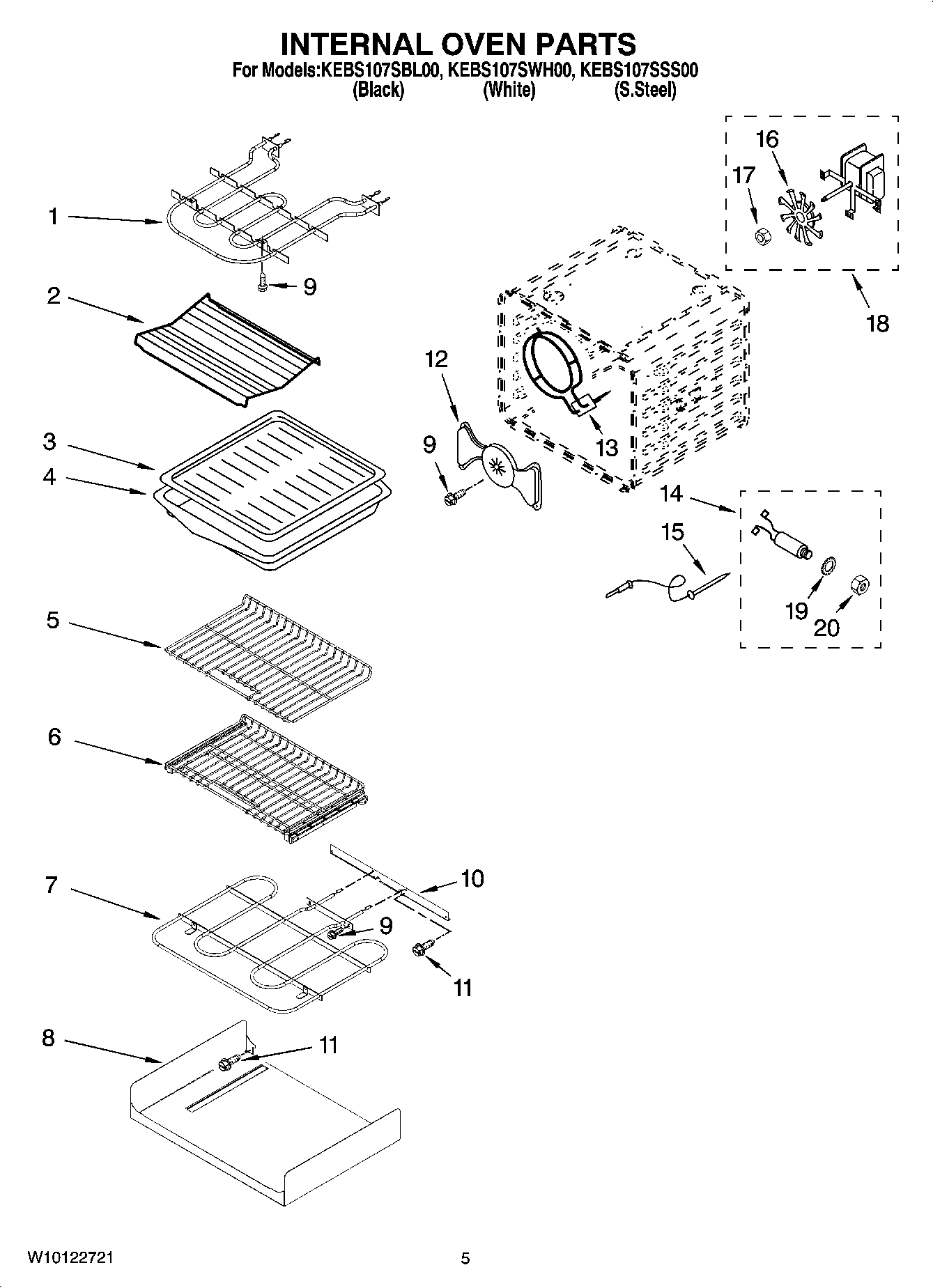

KEBS107SWH00 04 – INTERNAL OVEN PARTS

Products

Position	Product
1	ELMNT-BROL
2	Rack, Roasting
3	WP3195996 Whirlpool Pan Grid
4	W10737569 Whirlpool Broil Pan
5	W11550107 Whirlpool Oven Rack
6	W11186364 Whirlpool Oven Rack
7	ELMNT-BAKE
8	Tray, Hidden Bake
9	WP4449154 Whirlpool Screw
10	4450039 Whirlpool Oven Access Cover
11	WP4449809 Whirlpool Screw
12	8303962BU Whirlpool Convection Baffle
13	WP9760769 Whirlpool Element Assembly
14	8186589 Whirlpool Jack Probe
15	WP9755542 Whirlpool Oven Meat Probe
16	WP4452226 Whirlpool Convection Fan
17	Nut
18	Motor Convection
19	WP9755547 Whirlpool Lockwasher
20	WP9755546 Whirlpool Locknut
