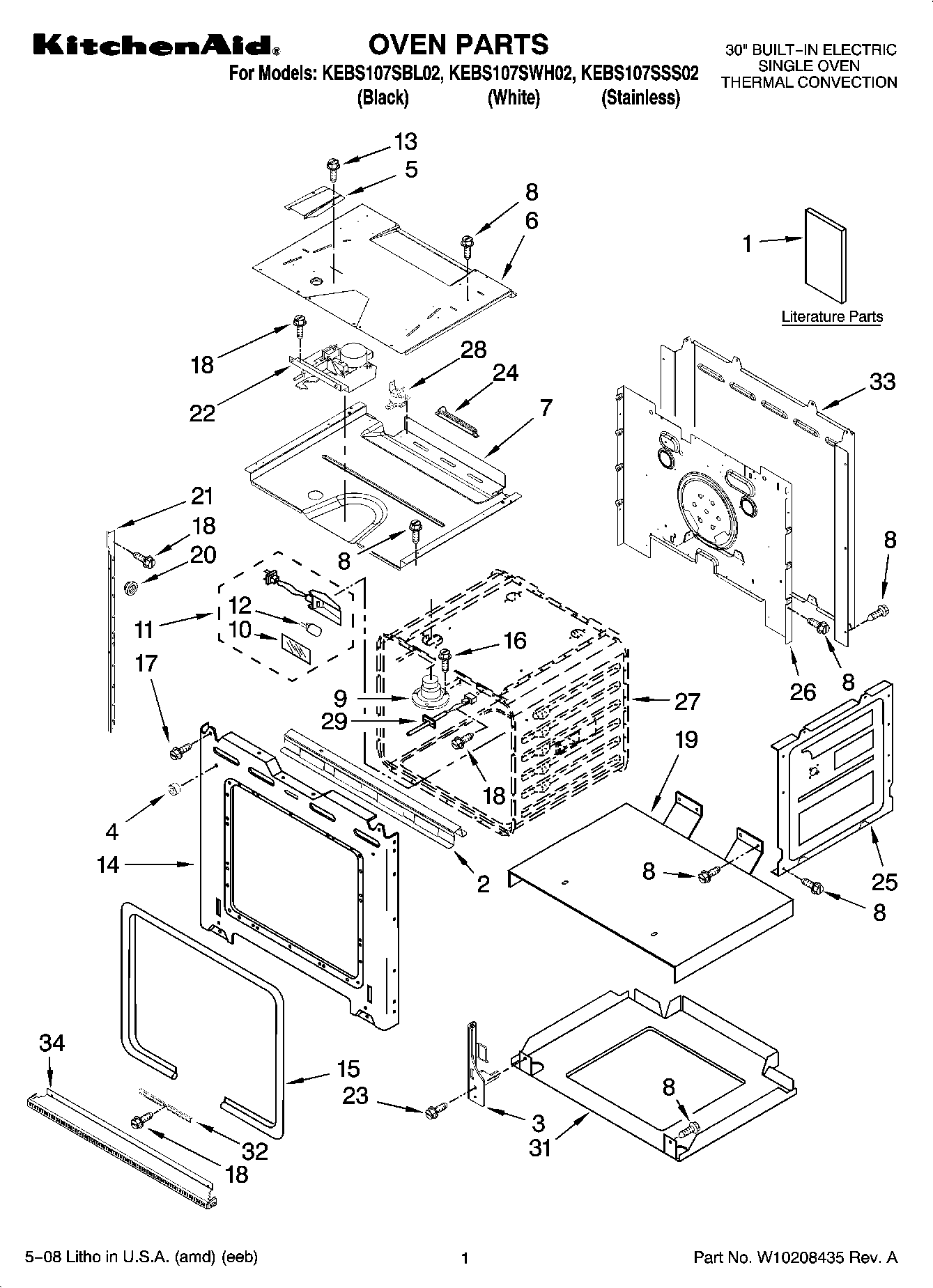

KEBS107SWH02 01 – OVEN PARTS

KEBS107SWH02 01 – OVEN PARTS

Written by

in

KEBS107SWH02 01 – OVEN PARTS

Products

PositionProduct
Insulation, Wrap
Insulation
Following Parts Not Illustrated
Insulation, Back
1Safer Cooking Tips (French)
1Installation Instructions (Undercounter Oven)
1Installation Instructions
1Tech Sheet (English)
1SAFER COOKING TIPS (ENGLISH
1Tech Sheet (French)
1Use & Care Guide
1Easy Set Guide
2Bracket, Base
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
4W10105790 Whirlpool Bumper
5Exhaust,Vent Slope
6Divider, Center Vent
7Top Chassis
8WP4449809 Whirlpool Screw
9W10861715 Whirlpool Vent Tube
10W10169756 Whirlpool Light Lens
11WPW10307114 Whirlpool Light
12BULB-LIGHT
13WP3400832 Whirlpool Screw
14Frame, Front
15WP8304493 Whirlpool Door Gasket
16SCREW
17Screw
18WP4449154 Whirlpool Screw
19Support, Insulation
20WP4448444 Whirlpool Grommet
21Mounting Rail, Side Right (Black)
21Mounting Rail, Side Left (Stainless)
21Mounting Rail, Side Right (Stainless)
21Mounting Rail, Side Left (White)
21Mounting Rail, Side Left (Black)
21Mounting Rail, Side Right (White)
22W11029221 Whirlpool Door Latch
23WP4449743 Whirlpool Screw
24BRACKET, THERMOSTAT
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
28WP8304452 Whirlpool Range Thermal Fuse
29WPW10131825 Whirlpool Oven Temperature Sensor
31Base, Chassis
32Retainer, Gasket
33Cover, Back
34Trim, Bottom Vent (Black)
34Trim, Bottom Vent (White)
34Trim, Bottom Vent (Stainless)
