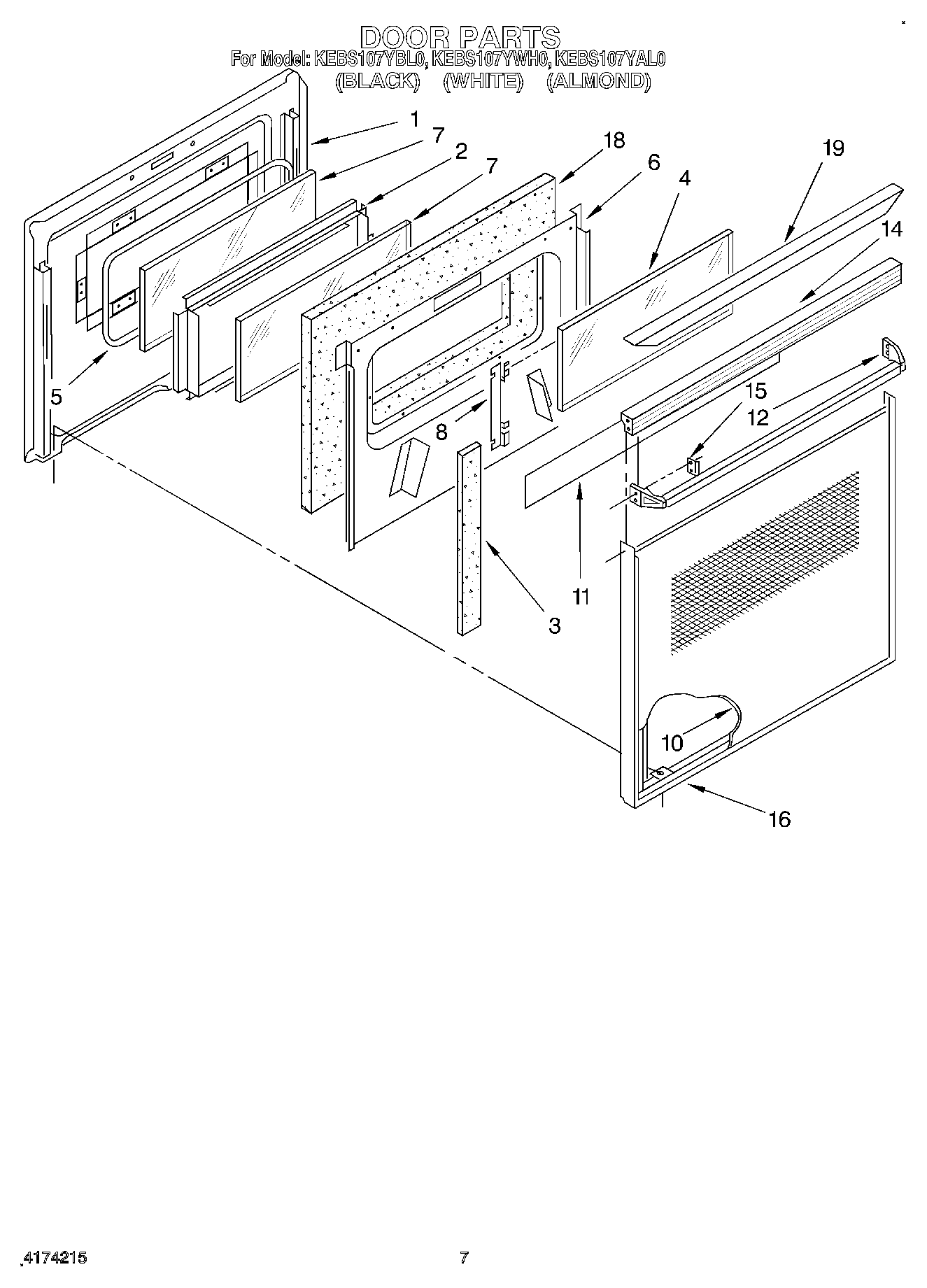

KEBS107YAL0 06 – DOOR

Products

Position	Product
1	Liner, Door
2	Frame, Inner
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Screw
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
10	Glass, Panel (White Model)
10	Glass, Panel (Black Model)
10	Glass, Panel (White)
11	Foil, Door
12	Handle, Door (Almond)
12	Handle, Oven Door (White Model)
12	Handle, Oven Door (Black Model)
14	WP355515 Whirlpool Screw
14	Top, Door (Black Model)
14	Top, Door (White Model)
15	Clip, Mtg (2)
16	Frame, Door
18	Insulation, Door
19	Cap, Top
19	WP308685 Whirlpool Microwave Screw
