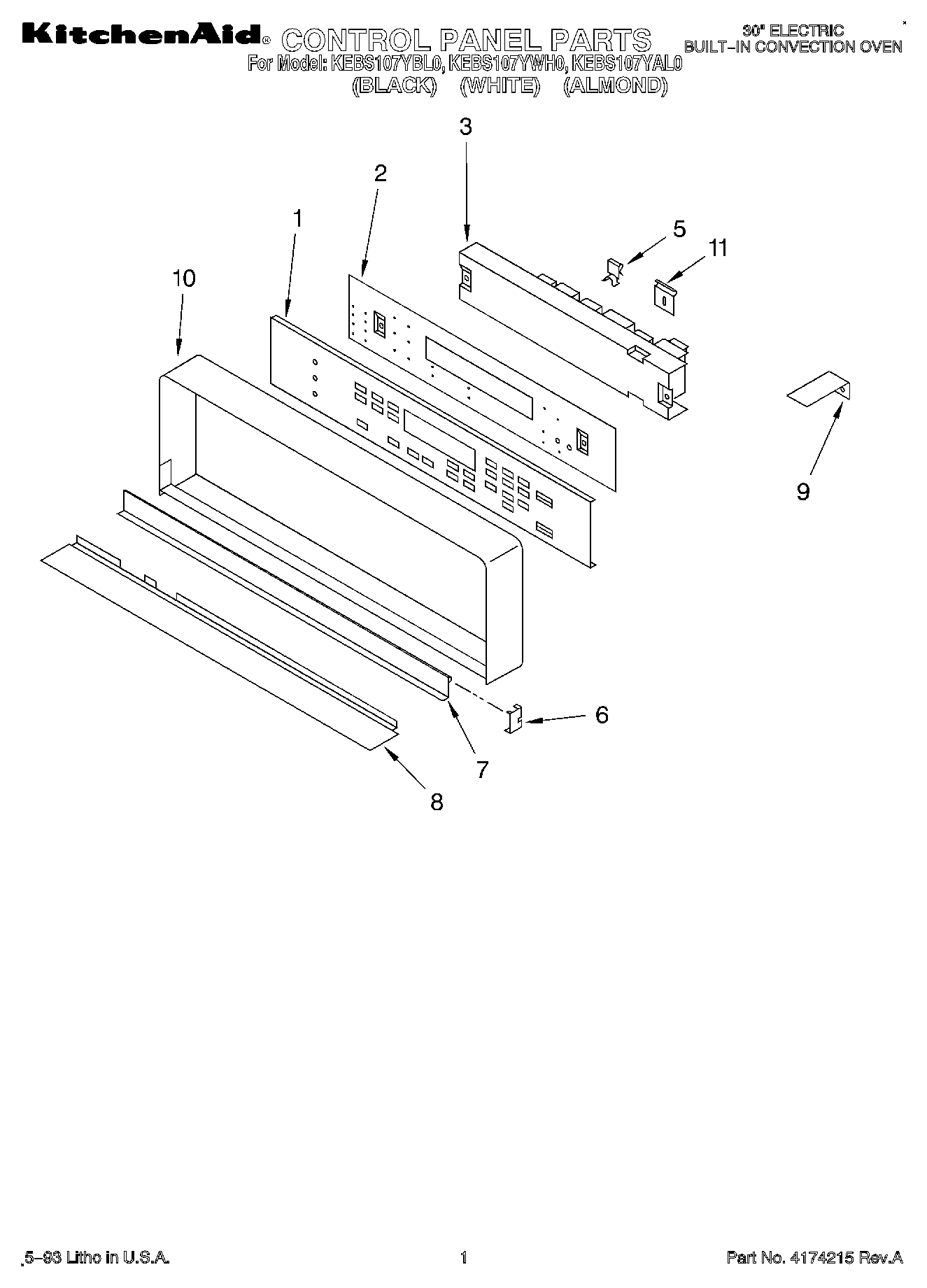

KEBS107YBL0 01 – CONTROL PANEL

KEBS107YBL0 01 – CONTROL PANEL

Written by

in

KEBS107YBL0 01 – CONTROL PANEL

Products

PositionProduct
1Switch, Membrane (Almond)
1Switch, Membrane (Black)
1Switch, Membrane (White)
2Bracket, Mounting Switch Membrane
3Screw (3)
3Microcomputer
5Clip, Retainer (3)
6Trim, Door (2)
7Door, Latch Handle (Black)
7Door, Latch Handle (Screw (2))
7Door, Latch handle (Almond)
7Door, Latch Handle (White)
8WP90767 Whirlpool Screw
8Trim, Panel
9Bracket (2)
9Screw (2)
10Frame, Control Panel
11Clip, Control Frame
