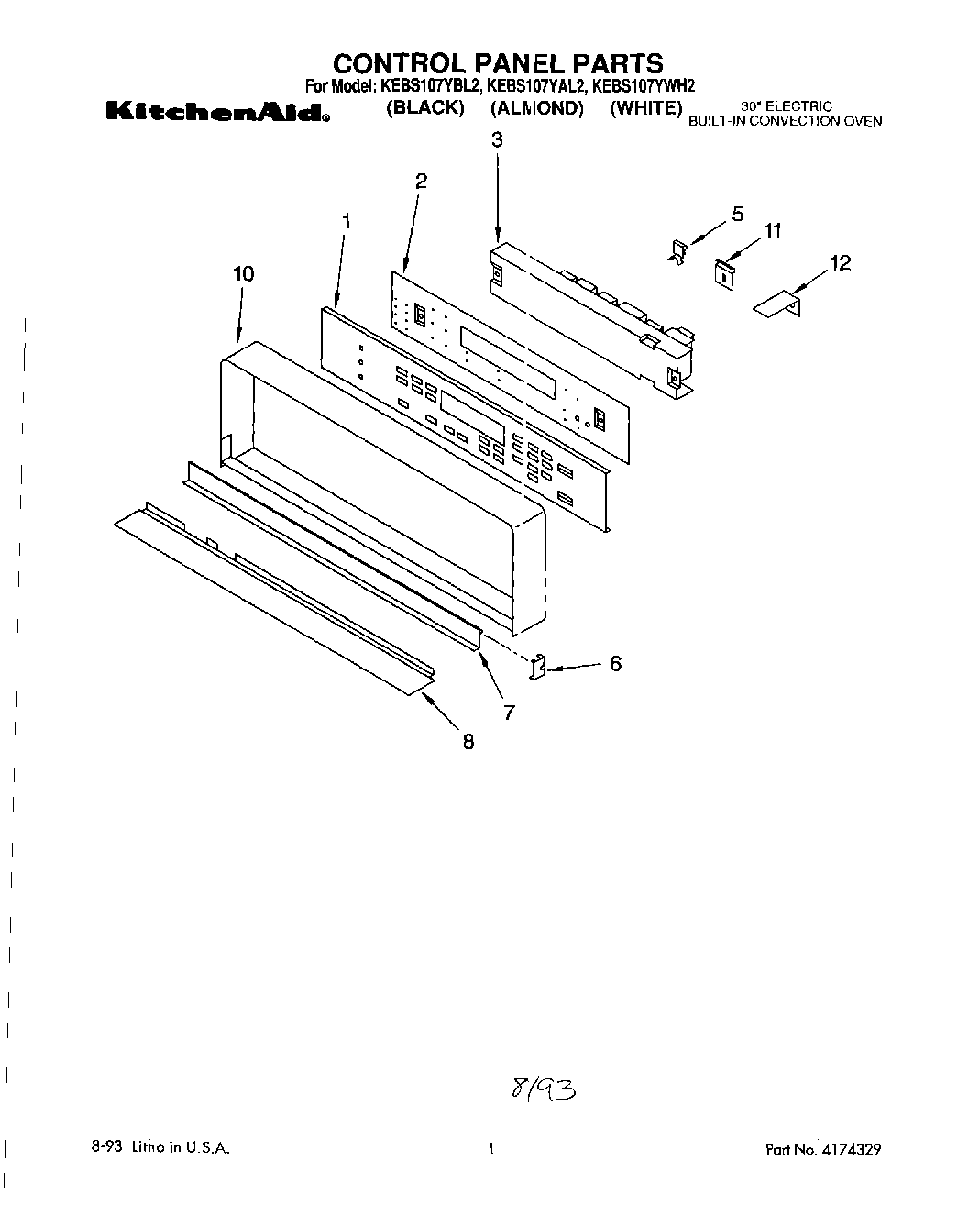

KEBS107YBL2 01 – CONTROL PANELadmin2025-04-26T12:35:25+00:00KEBS107YBL2 01 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Switch, Membrane (Almond) |
| 1 | Switch, Membrane (White) |
| 1 | Switch, Membrane (Black) |
| 2 | Bracket, Mounting Switch Membrane |
| 3 | Microcomputer |
| 5 | Clip, Retainer (3) |
| 6 | Trim, Door (2) |
| 7 | Door, Latch Handle (Black) |
| 7 | Door, Latch Handle (White) |
| 7 | Door, Latch Handle (Screw (2)) |
| 7 | Door, Latch handle (Almond) |
| 8 | Trim, Panel |
| 10 | Frame, Control Panel |
| 11 | Clip, Control Frame |
| 12 | Bracket (2) |
| 12 | Screw (2) |
