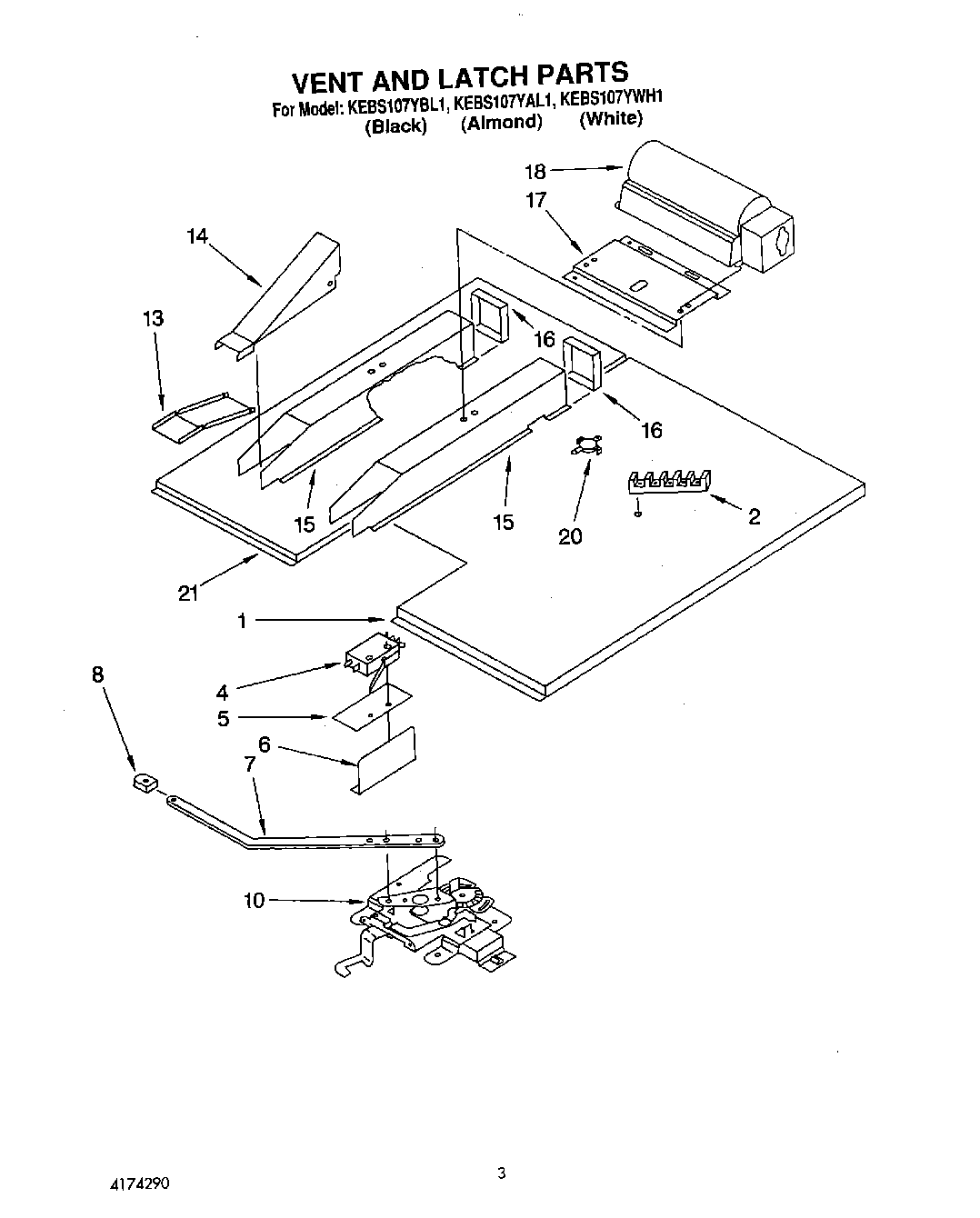

KEBS107YWH1 03 – VENT AND LATCH

KEBS107YWH1 03 – VENT AND LATCH

Written by

in

KEBS107YWH1 03 – VENT AND LATCH

Products

PositionProduct
1Baffle, Vent
2WP8203546 Whirlpool Terminal Block
4Switch, latch
5Screw
5Insulator, Switch
6Screw
6Shield, Latch
7Screw
7Handle, Latch
8Knob, Latch Handle
8Screw
10Latch, Mechanism
13Nozzle, Vent Bottom
14Nozzle, Vent Top
15Box, Vent (2)
15Screw
16End, Vent Box
17Bracket, Mounting
17WP3177991 Whirlpool Screw
18Blower, fan
20SPST Thermostat
20WP90767 Whirlpool Screw
21WP488729 Whirlpool Refrigerator Door Screw
21Baffle, Vent Mtg.
