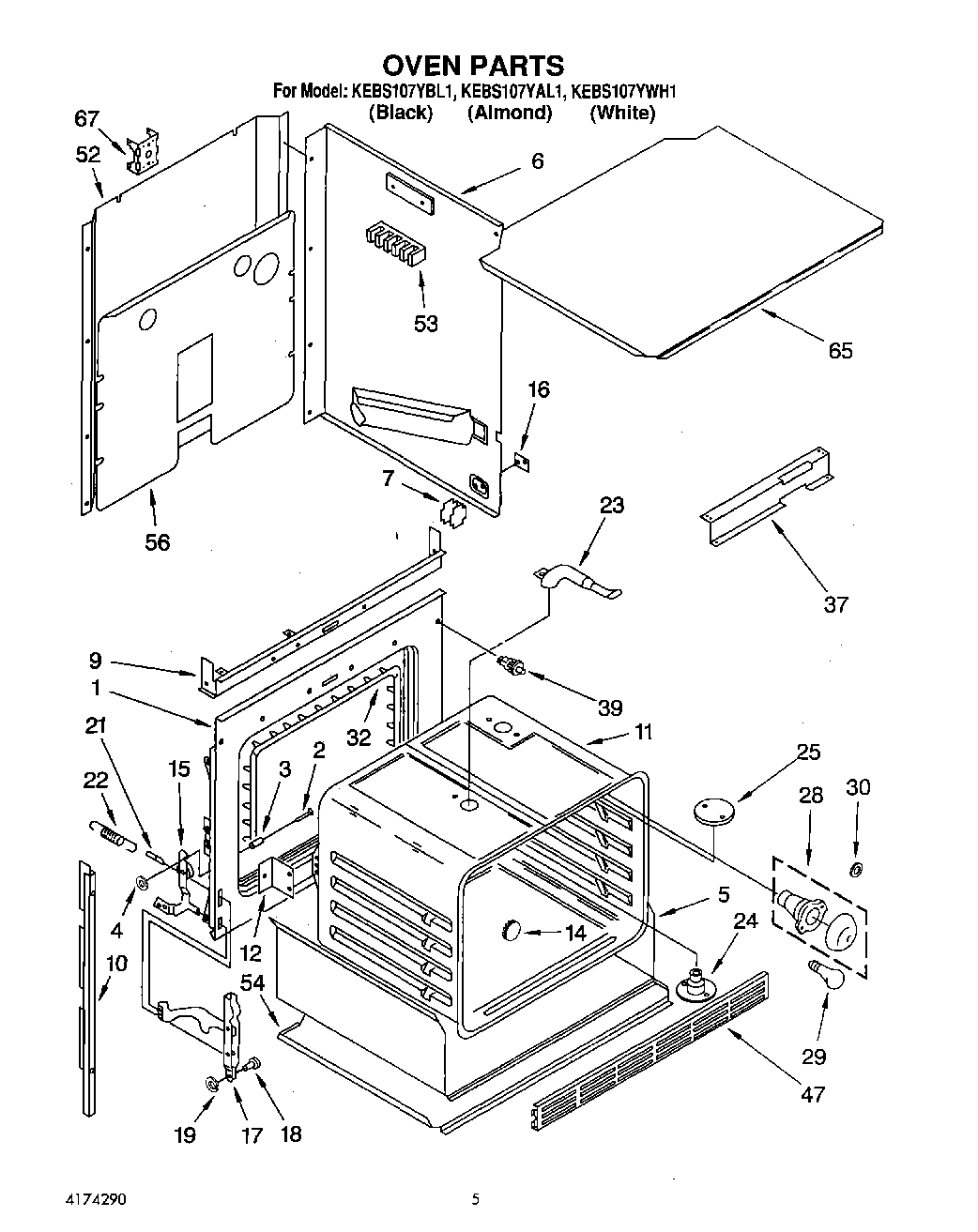

KEBS107YWH1 04 – OVEN, LIT/OPTIONAL

Products

Position	Product
	WPL LIT4174290
	Cookbook T/C Oven
	Guide, Auto Set
	Tech Sheet
	Use & Care Guide
	Installation Instructions
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (L.H.)
6	Side Wrapper (R.H.)
7	Support, Side Wrapper (4)
9	Baffle, Top Insulation
10	Side Trim (Left Side)
10	Side Trim (Right Side)
11	Oven (30`` Pyro)
11	Screw (3)
12	Bracket, Oven Mounting (2)
14	WPL 3185086
15	Hinge, Ear (Left Side)
15	Hinge, Ear (Right Side)
16	WP308544 Whirlpool Screw
16	Plate, Side Panel (2)
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	Tube, Vent
23	SCREW
24	Eliminator, Smoke
25	WPL 310662
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
30	WP3184533 Whirlpool Range Light Lens Gasket
32	WPL 3185197
37	Bracket, Mounting Control Frame
39	Switch, Door
47	Bottom Grill (Almond)
47	Grill, Bottom (Black)
47	Grill, Bottom (White)
52	WPL 311011
53	WP112432 Whirlpool Nut Assembly
53	WP8203546 Whirlpool Terminal Block
53	Screw (10-12 x .875)
54	WPL 310458
56	Panel, Back
56	WP488729 Whirlpool Refrigerator Door Screw
65	Cover, Top
67	WPL 3171507
67	WPL 310433
67	Plate, Mounting (Fan Motor)
67	WPL 310435
67	WPL 3149328
