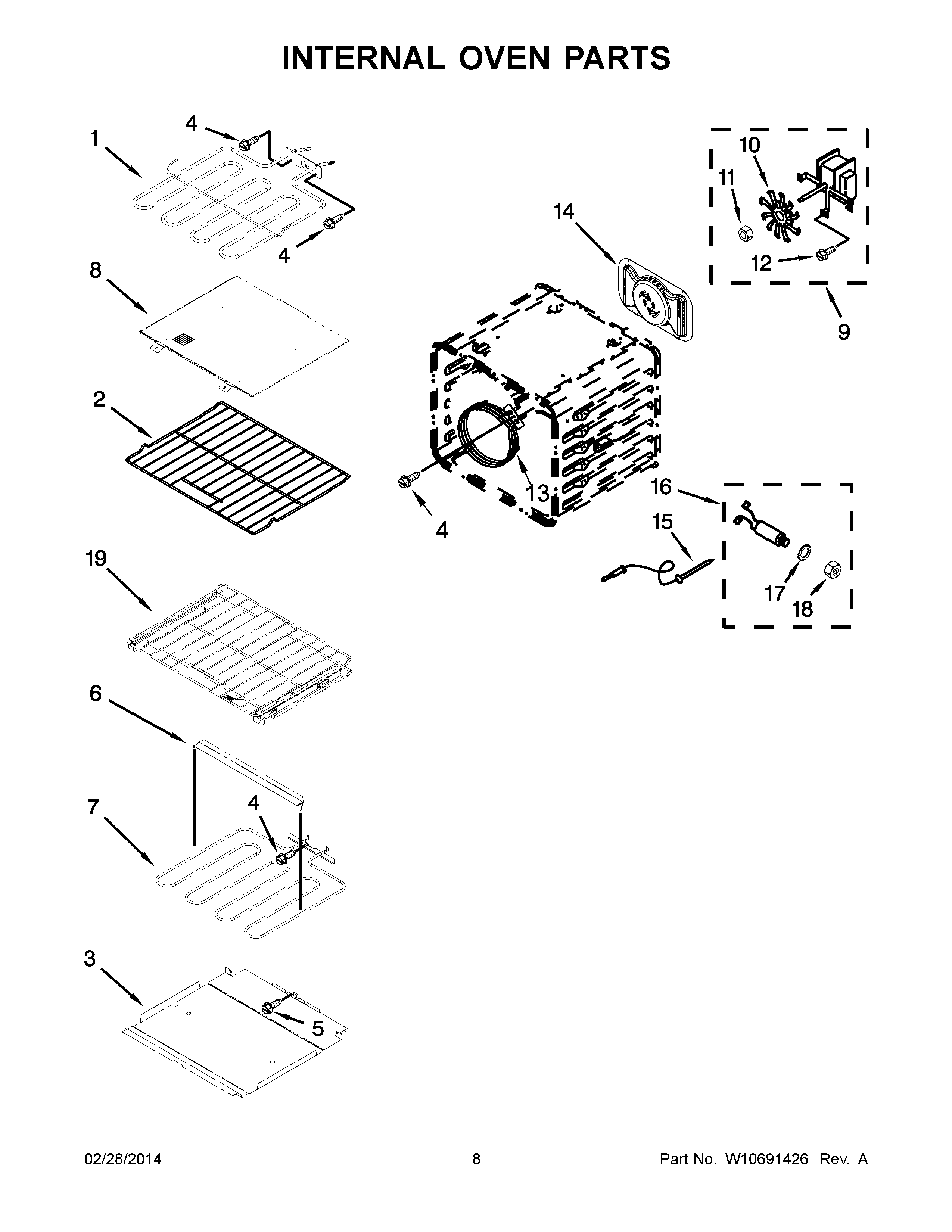

KEBS109BWH01 05 – INTERNAL OVEN PARTS

Products

Position	Product
1	W10804429 Whirlpool Broil Element
2	WPW10554526 Whirlpool Oven Rack
3	W10318198 Whirlpool Bake Tray
4	Screw
5	SCREW
6	W10282957 Whirlpool Bracket Support
7	BAKE ELEMENT
8	W11290999 Whirlpool Shield Heat
9	W10794022 Whirlpool Oven Cooktop Fan Motor
10	W10758272 Whirlpool Convection Fan
11	WPW10116349 Whirlpool Nut
12	WP4449154 Whirlpool Screw
13	W11678579 Whirlpool Element
14	W11234761 Whirlpool Baffle Convector
15	WP9755542 Whirlpool Oven Meat Probe
16	WPW10524044 Whirlpool Jack Probe
17	WP9755547 Whirlpool Lockwasher
18	WP9755546 Whirlpool Locknut
19	W11718046 Whirlpool Rack
