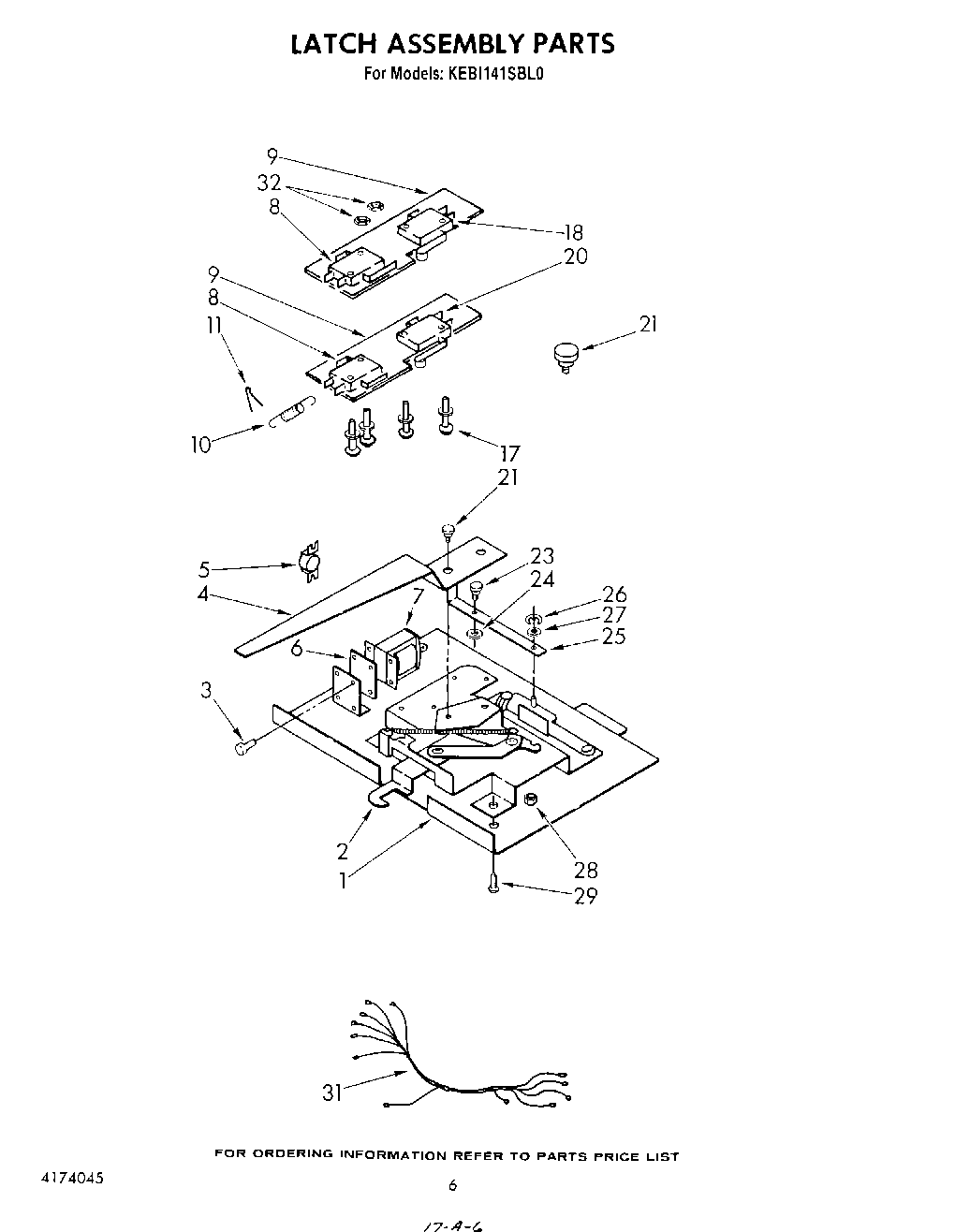

KEBS141SBL0 06 – LATCH ASSEMBLY

Products

PositionProduct
1Latch Mounting Plate
2Mechanism, Latch
3Screw, No.10-24 X 3/8“ Hex TCS
4Latch Lever
5Thermal Switch
6Solenoid Spacer
7Solenoid
8Latch Switch With Roller
9Insulator (2)
10Solenoid Spring
11Cotter Pin
17Screw, No.4-40 X 1 1/4“ Hex
18Latch Switch
20Latch Switch (2)
21Shoulder Screw Latch Lever Upper Oven
23Shoulder Screw, Actuator Arm
24Spacer, Actuator Arm
25Actuator Arm
26Retaining Ring
27Washer, Flat
28Nut, No.10-24 Hex Kep
29Screw, No.10-24 X 3/8“ PTHMS
31Wiring Harness, Latch Switch
32Nut (2)
