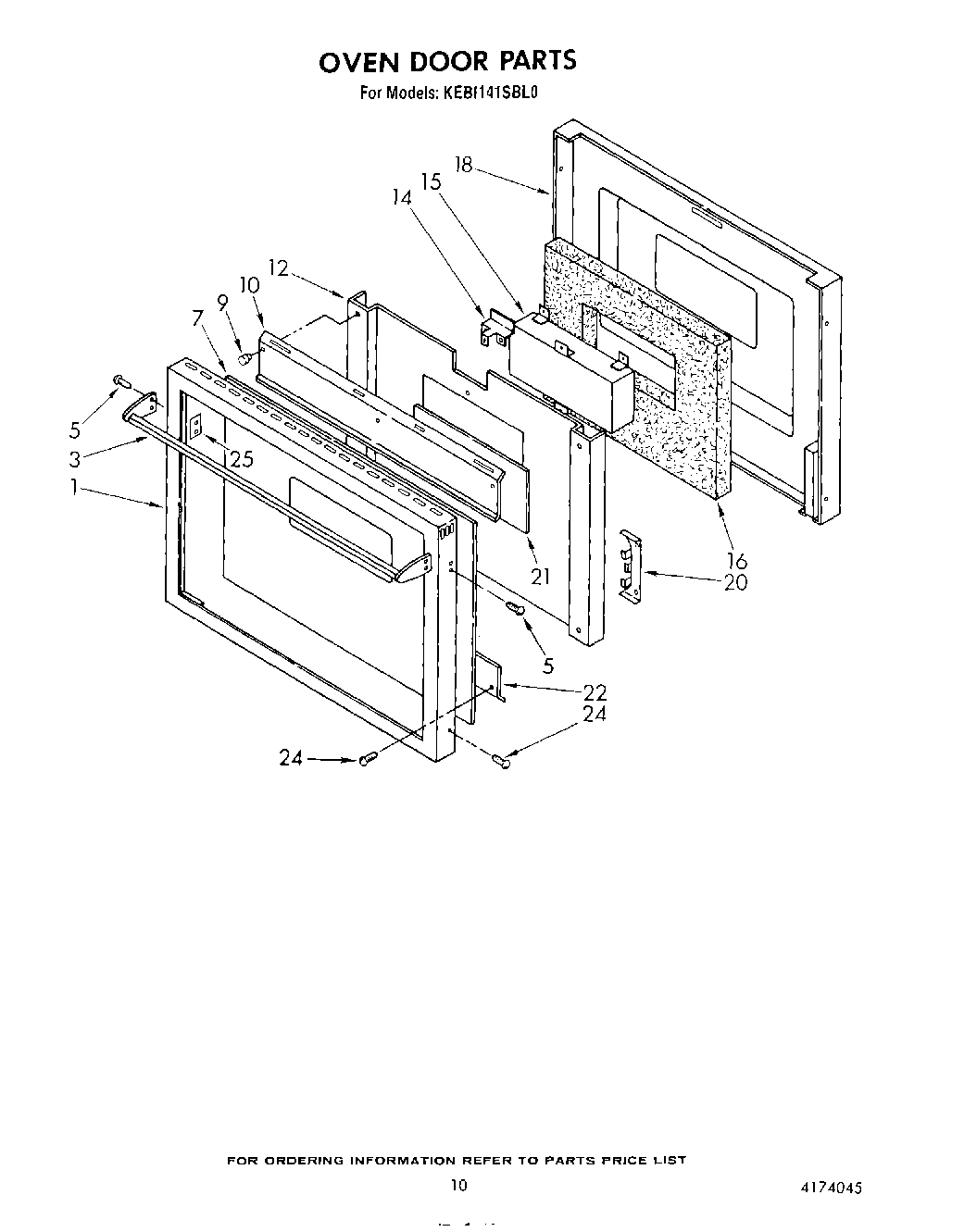

KEBS141SBL0 08 – OVEN DOOR , LIT/OPTIONAL

Products

PositionProduct
List, Repair Parts
Cookbook
Installation Instructions
Use and Care Guide
1Door Frame
3Door Handle
5Screw, 8-32 X 3/8“ PFHMS
7Door Glass
9Rubber Bumper
10Air Baffle
12Insulation Retainer
14Bracket, Lock
15Window Pack
16Insulation
18Door Liner
20Bracket, Glass Mtg.
21Glass, Reflective
22Air Baffle Bottom
24Vent, Lower Trim (Screw (2))
25Insert (4)
