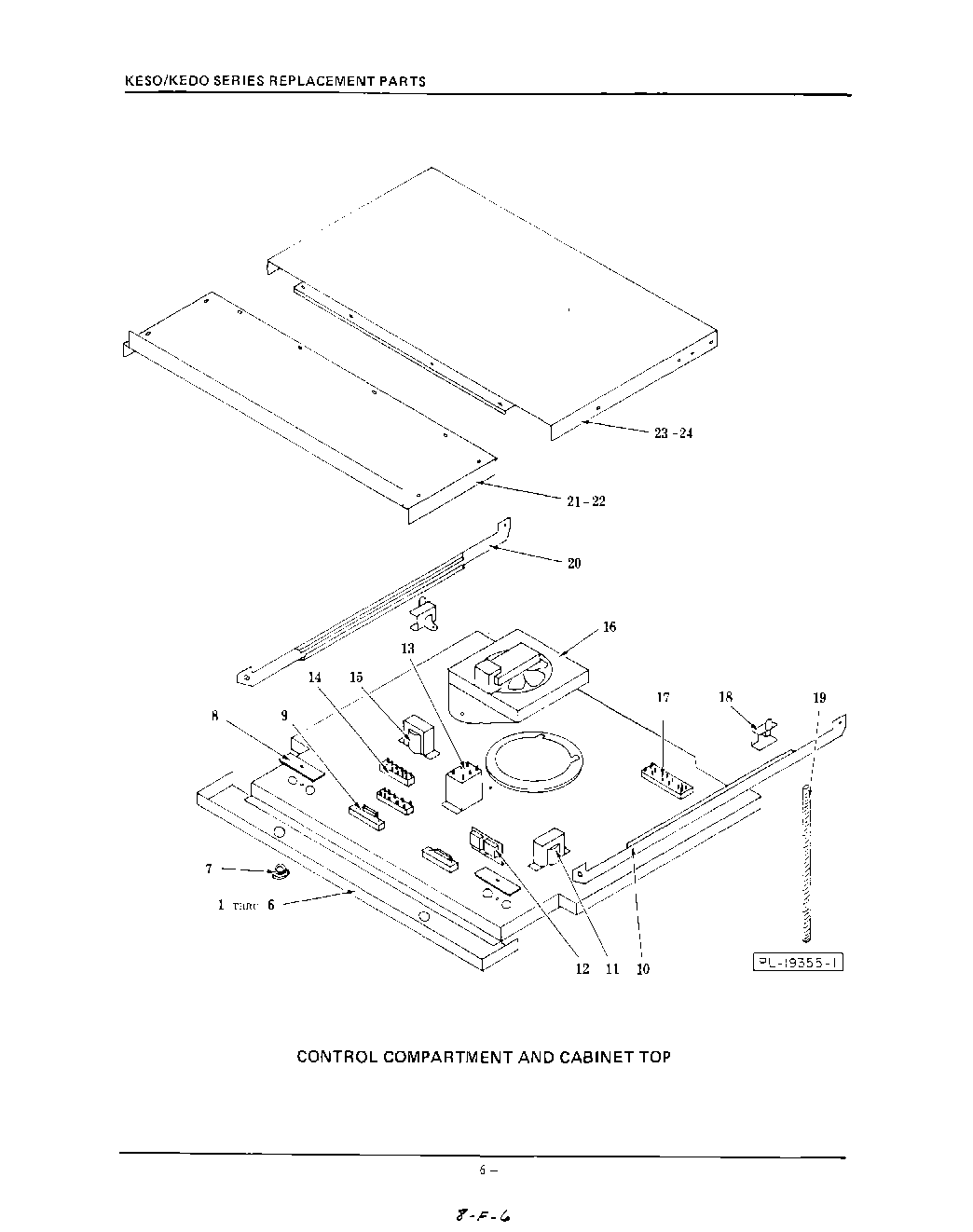

KEBS145SBL0 04 – CONTROL COMPARTMENT AND CABINET TOP

Products

PositionProduct
1Sandwich Panel Assembly KESO-140/145
2Sandwich Panel Assembly KESO-170/175
3Sandwich Panel Assembly KEDO-240
4Sandwich Panel Assembly KEDO-245
5Sandwich Panel Assembly KEDO-270
6Sandwich Panel Assembly KEDO-275
7Bushing
8Hole Cover
9Resistor Block
10Extension Arm, R.H.
11Ballast
12Thermal Relay KESO-145/175, KEDO-245/275
13Relay, Meat Probe KESO-145/175, KEDO-245/275
14Terminal Block, Distribution
15Transformer, Meat Probe KESO-145/175, KEDO-245/275
16Blower Assy
17Terminal Block, Power Supply
18Arm Guide
19Conduit, 1/2 x 56
20Extension Arm, L.H.
21Cabinet Top, Front KESO-140/145, KEDO-240/245
22Cabinet Top, Front KESO-170/175, KEDO-270/275
23Cabinet Top, Rear KESO-140/145, KEDO-240/245
24Cabinet Top, Rear KESO-170/175, KEDO-270/275
