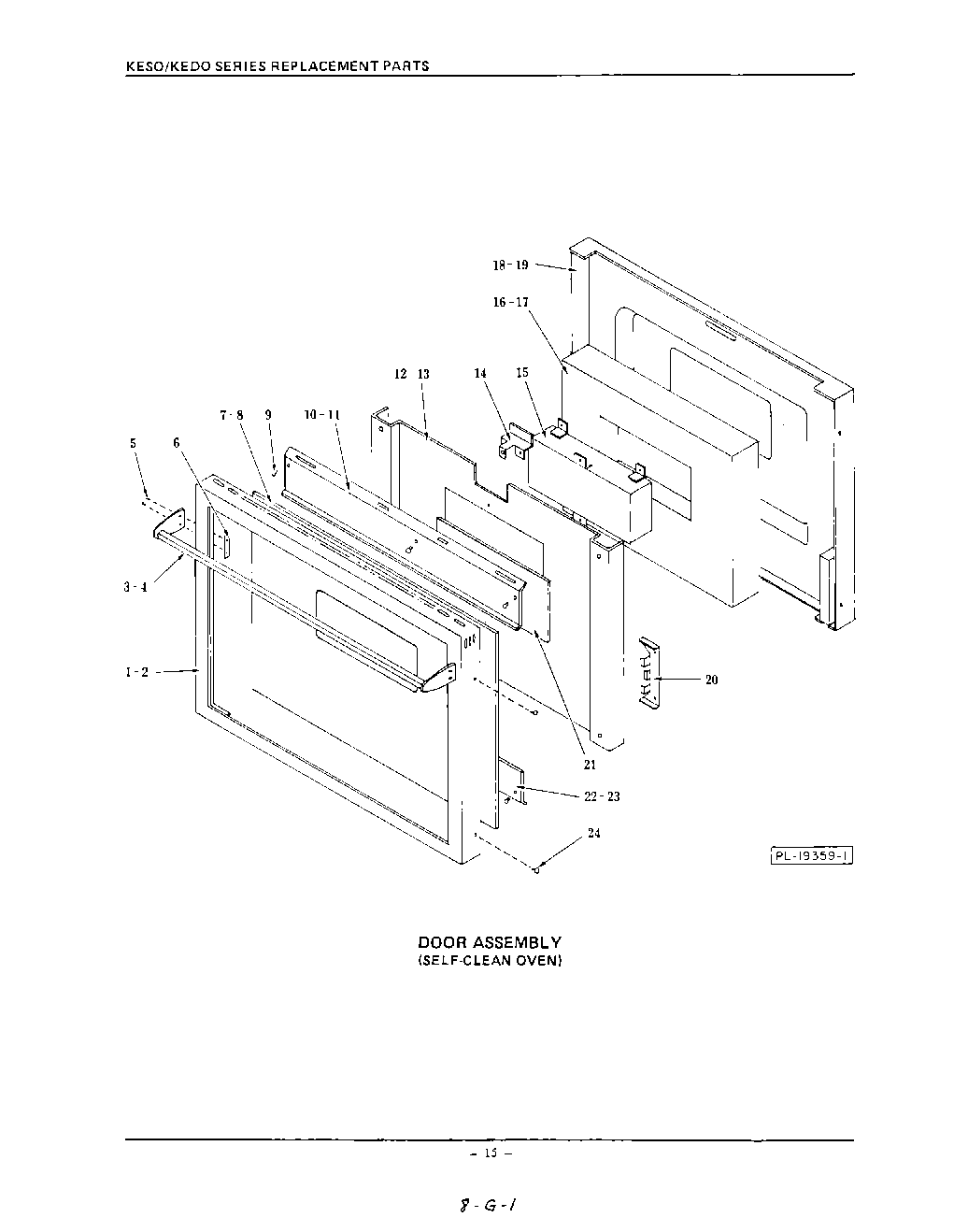

KEBS145SBL0 09 – SELF CLEAN OVEN

KEBS145SBL0 09 – SELF CLEAN OVEN

Products

PositionProduct
1Door Frame KEDO-240
2Door Frame KEDO-270
3Door Handle KEDO-240
4Door Handle KEDO-270
5Screw, 8-32 x 3/8`` PFHMS
6Tinnerman
7Door Glass KEDO-240
8Door Glass KEDO-270
9Rubber Bumper
10Air Baffle-Top KEDO-240
11Air Baffle-Top KEDO-270
12Insulation Retainer KEDO-240
13Insulation Retainer KEDO-270
14Lock Bracket
15Window Pack
16Insulation KEDO-240
17Insulation KEDO-270
18Door Liner KEDO-240
19Door Liner KEDO-270
20Glass Mounting Bracket
21Glass Panel
22Air Baffle-Bottom KEDO-240
23Air Baffle-Bottom KEDO-270
24Screw, 8A x 3/8`` PKESMS
