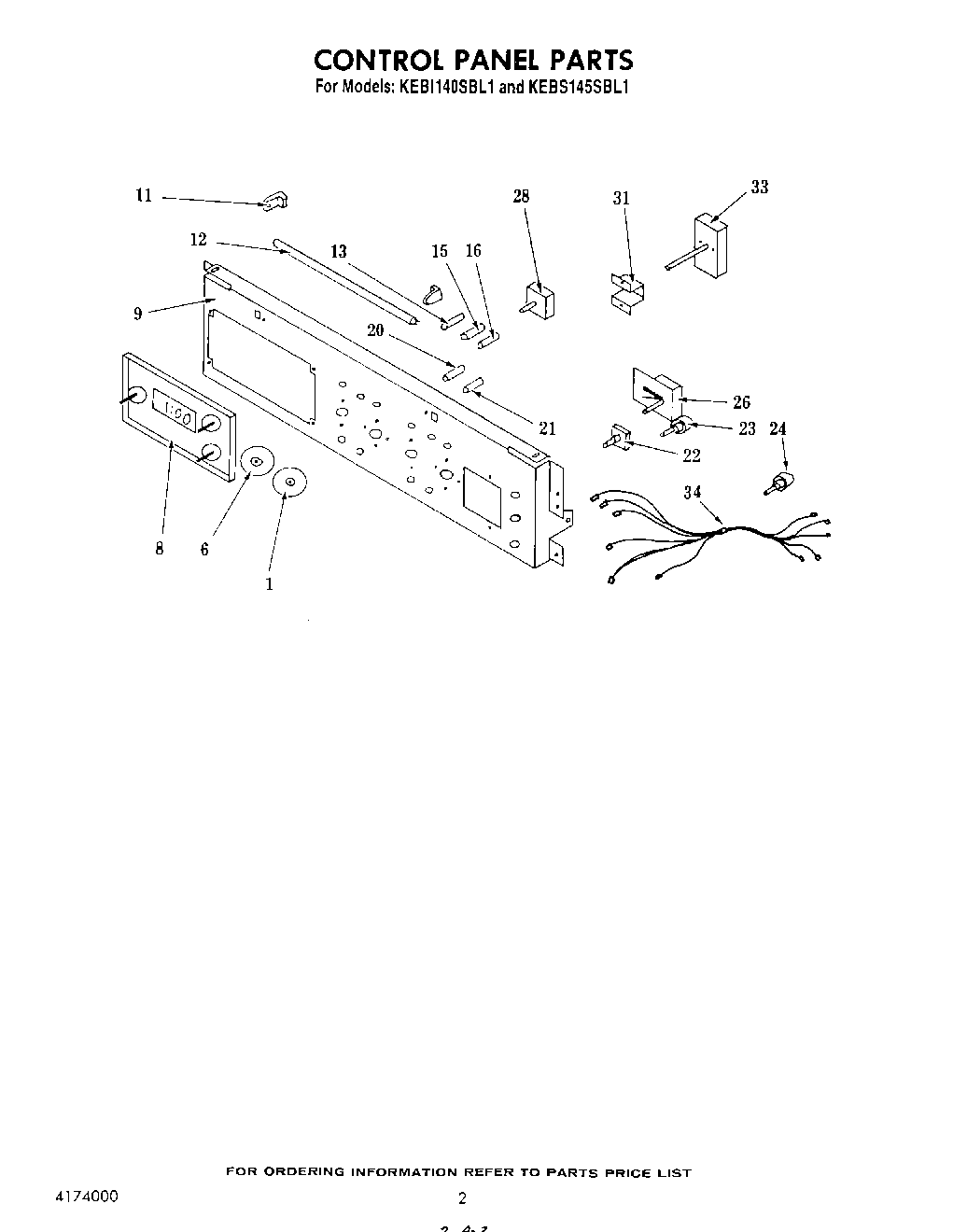

KEBS145SBL1 02 – CONTROL PANEL

Products

PositionProduct
1Thermostat Disc Lower Oven
1Selector Disc
6Selector Disc
6Selector Disc Single Oven (Model KEBS145SBL1)
8Clock, Digital
9Control Mounting Panel
11Lamp Socket (Model KEBS145SBL1)
12Lamp, Fluorescent
16Indicator Light,
21Indicator Light, Oven (Lower Oven)
22Switch, Heat
23Switch, Panel Light
24Oven Light Switch
26Meat Probe Indicator (Model KEBS145SBL1)
28Selector Switch (Model KEBS145SBL1)
28Selector Switch
31Bracket Thermostat
33Thermostat, Upper Oven
33Thermostat (Model KEBS145SBL1)
34Wiring Harness, Element (Upper Oven)
