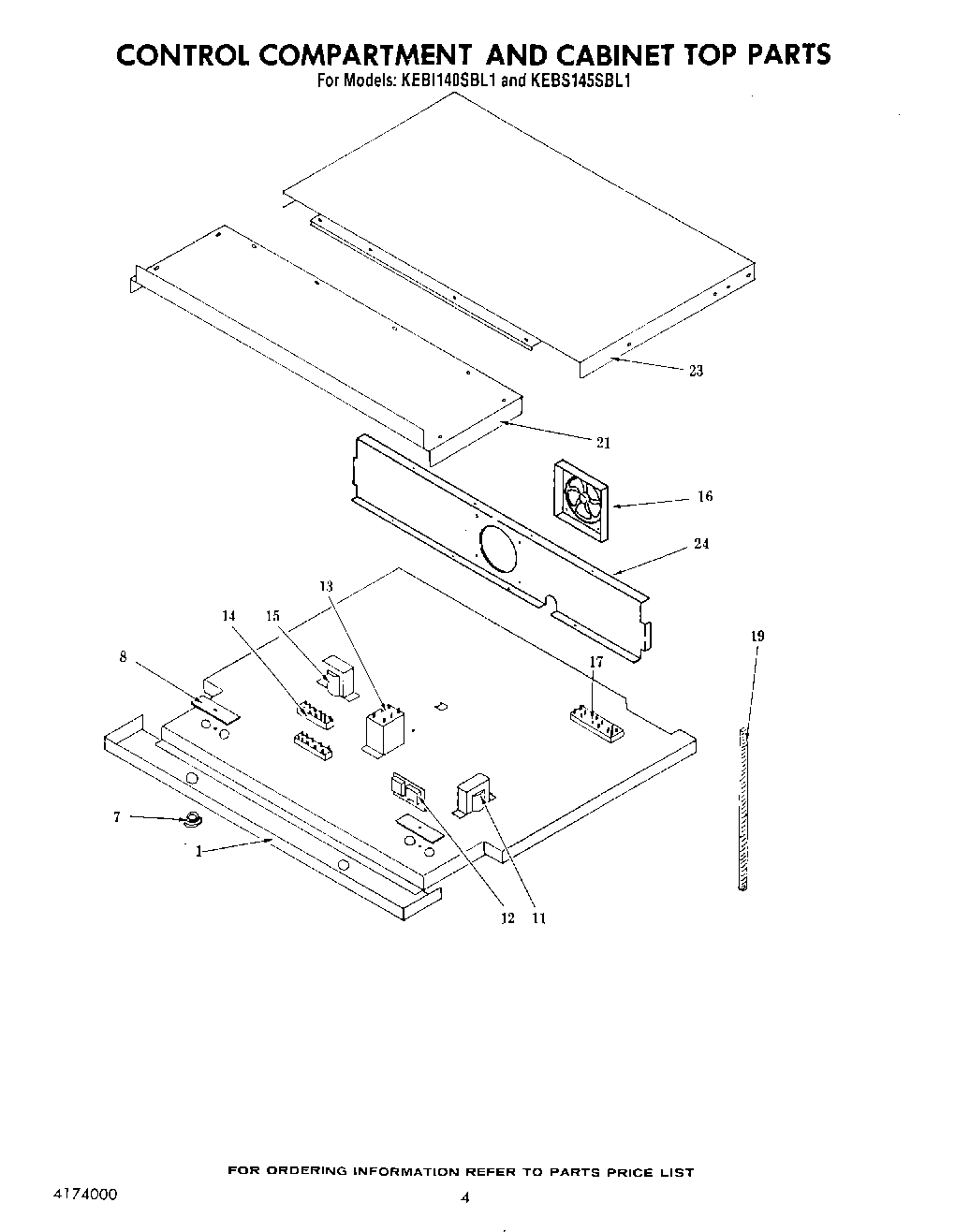

KEBS145SBL1 04 – CONTROL COMPARTMENT AND CABINET TOP

Written by

Products

Position	Product
1	Sandwich Panel
7	Bushing
8	Hole Cover
11	Transformer
12	Thermal Relay Model KEBS145SBL1
13	Relay, Meat Probe
14	Terminal Block
15	Transformer, Meat Probe Model KEBS145SBL1
16	Blower
17	Terminal Block, Power Supply
19	Conduit, 1/2“ X 56“
21	Cabinet Top, Front
23	Cabinet Top, Rear
24	Panel, Blower Mounting
