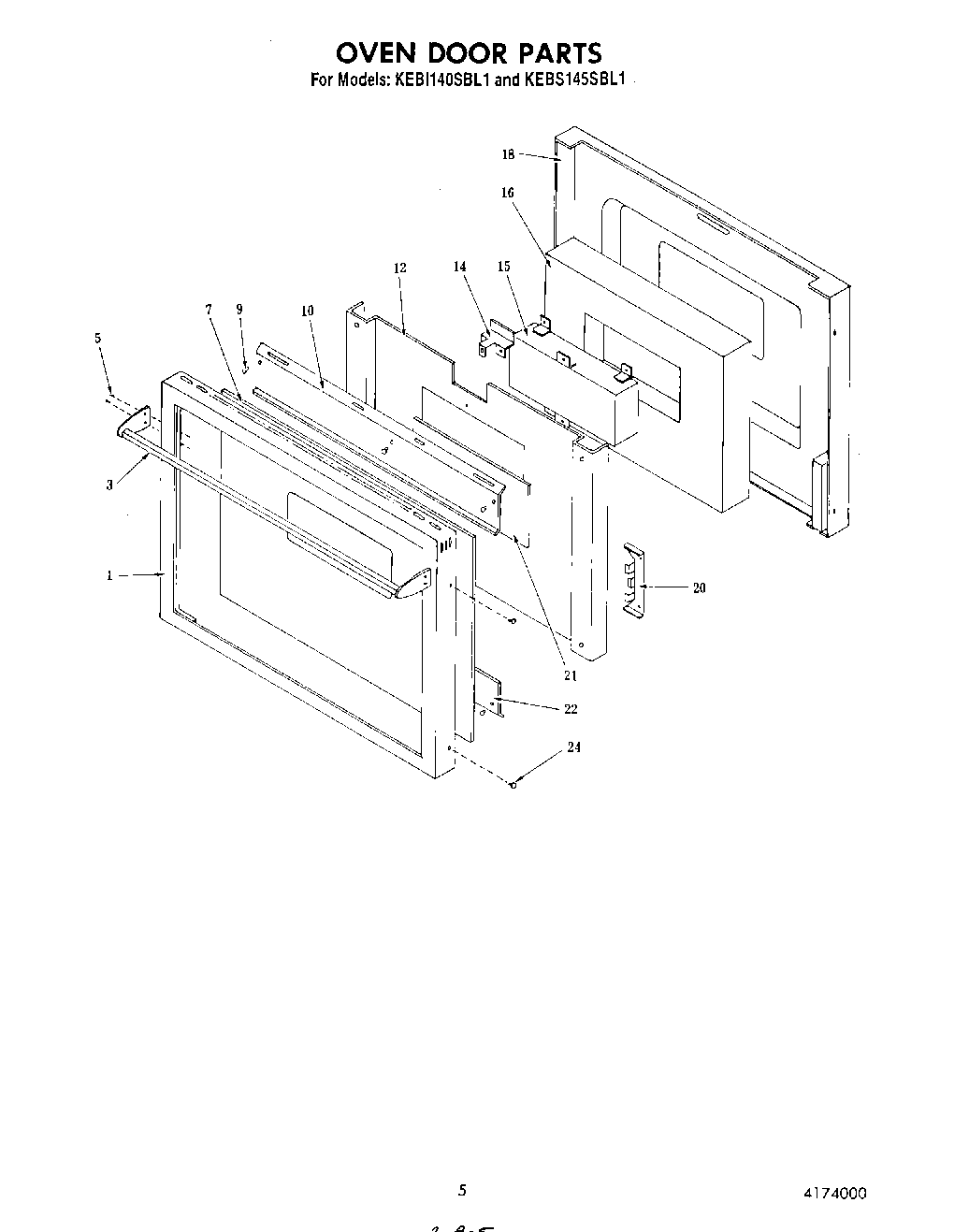

KEBS145SBL1 05 – OVEN DOOR

Products

Position	Product
	Use and Care Guide
	Installation Instructions
	Use & Care Guide Model KEBS145SBL1
	Cookbook, Retained Heat Model KEBS145SBL1
	List, Repair Parts
1	Door Frame
3	Door Handle
5	Screw, 8-32 X 3/8“ PFHMS
7	Door Glass
9	Rubber Bumper
10	Air Baffle
12	Insulation Retainer
14	Bracket, Lock
15	Window Package
16	Insulation
18	Door Liner
20	Bracket, Glass Mtg.
21	Glass, Reflective
22	Air Baffle Bottom
24	Vent, Lower Trim (Screw (2))
