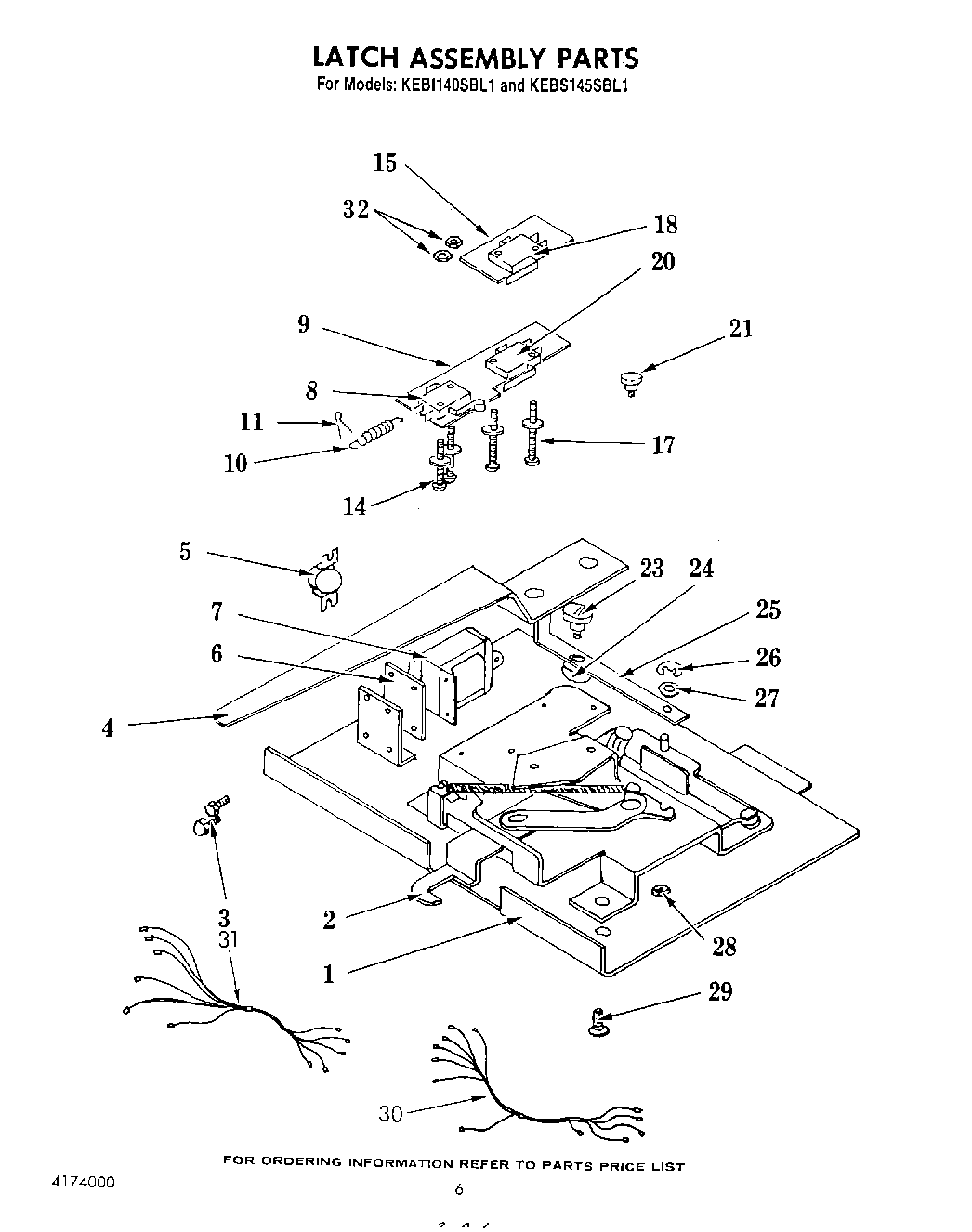

KEBS145SBL1 06 – LATCH ASSEMBLY

Products

Position	Product
1	Latch Mounting Plate
2	Mechanism, Latch
3	Screw, No.10-24 X 3/8“ Hex TCS
4	Latch Lever
5	Thermal Switch
6	Solenoid Spacer
7	Solenoid
8	Latch Switch With Roller
9	Insulator (2)
10	Solenoid Spring
11	Cotter Pin
14	Screw, 4-40 X 5/8 Hex
15	Insulator
17	Screw, No.4-40 X 1 1/4“ Hex
20	Latch Switch (2)
20	Latch Switch, Normally Open
21	Shoulder Screw Latch Lever Upper Oven
23	Shoulder Screw, Actuator Arm
24	Spacer, Actuator Arm
25	Actuator Arm
26	Retaining Ring
27	Washer, Flat
28	Nut, No.10-24 Hex Kep
29	Screw, No.10-24 X 3/8“ PTHMS
30	Wiring Harness, Latch Switch ((Use With Robert-Shaw Thermostat) Model KEBS145SBL1)
30	Wiring Harness, Latch Switch ((Use With G.E. Thermostat) Model KEBS145SBL1)
31	Wiring Harness, Latch Switch
32	Nut (2)
