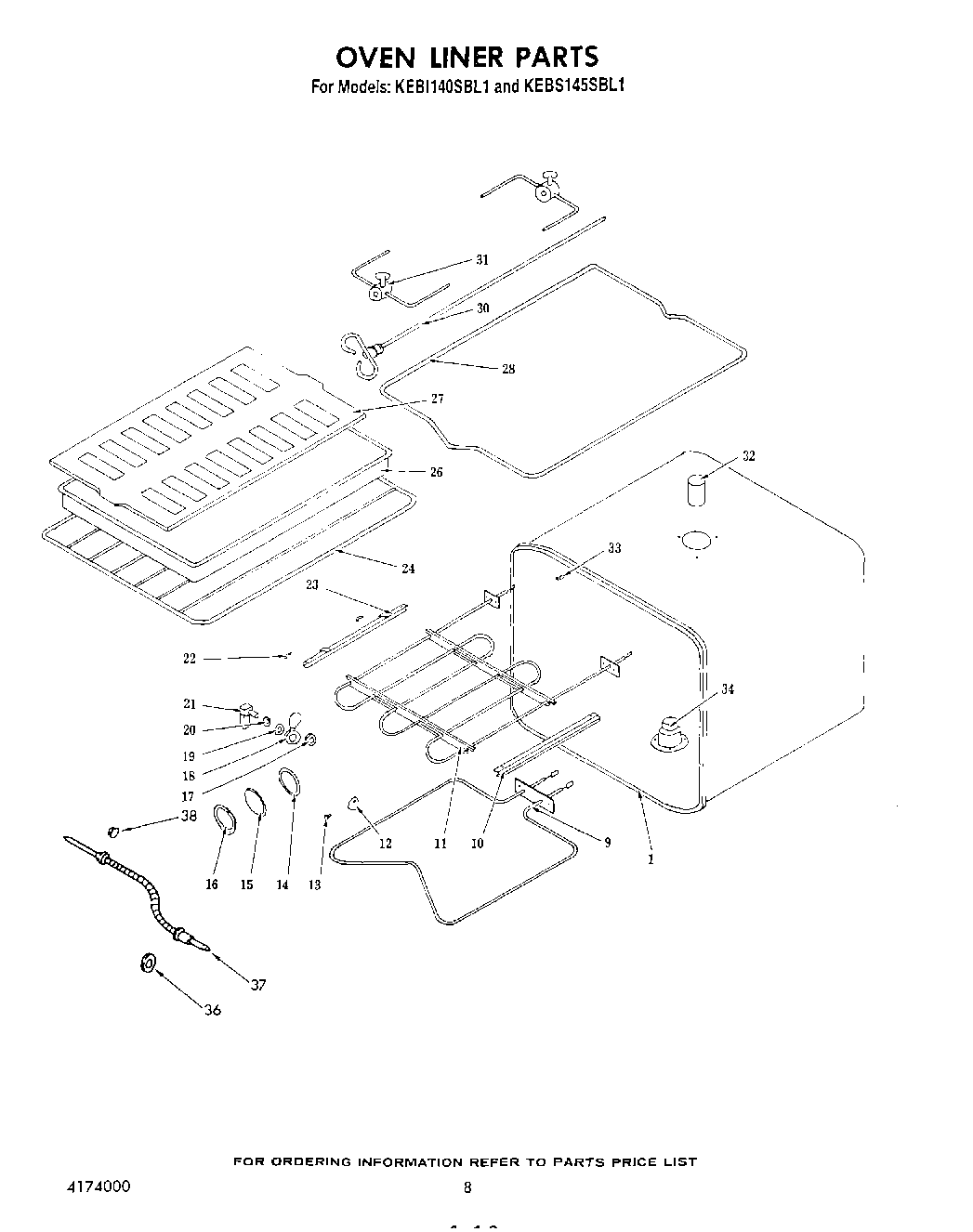

KEBS145SBL1 07 – OVEN LINER

Products

Position	Product
1	Liner, Oven (Upper & Lower Ovens)
9	WP3177420 Whirlpool Bake Element
10	Broiler Element Support-Right
11	Element, Broil
12	Plate, Cover
13	Shoulder Screw
14	Light Lens Gasket
15	Light Lens
16	Light Lens Retainer
17	Lock-Nut, Cvr.Jack
18	Jack Cover
19	Washer
20	Nut, Hex Jam Model KEBS145SBL1
21	Meat Probe Jack Model KEBI145SBL1
22	Thermostat Bulb Clip
23	Broiler Element Support-Left
24	Rack, Oven
26	4396923 Whirlpool Broil Pan Set Gray Porcelain
28	Rotisserie Rack Model KEBS145SBL1
30	Rotisserie Spear
31	Rotisserie Skewer
32	Vent Tube Extension
33	Cover, Cap Tube
34	Smoke Eliminator (Upper Oven)
36	Gasket, Meat Probe
37	Meat Probe
38	Plug Button (3/8`` Hole)
38	Plug Button (3/4`` Hole)
38	Plug Button (5/8`` Hole)
