KEBS145SBL1 08 – CABINET

KEBS145SBL1 08 – CABINET

Written by

in

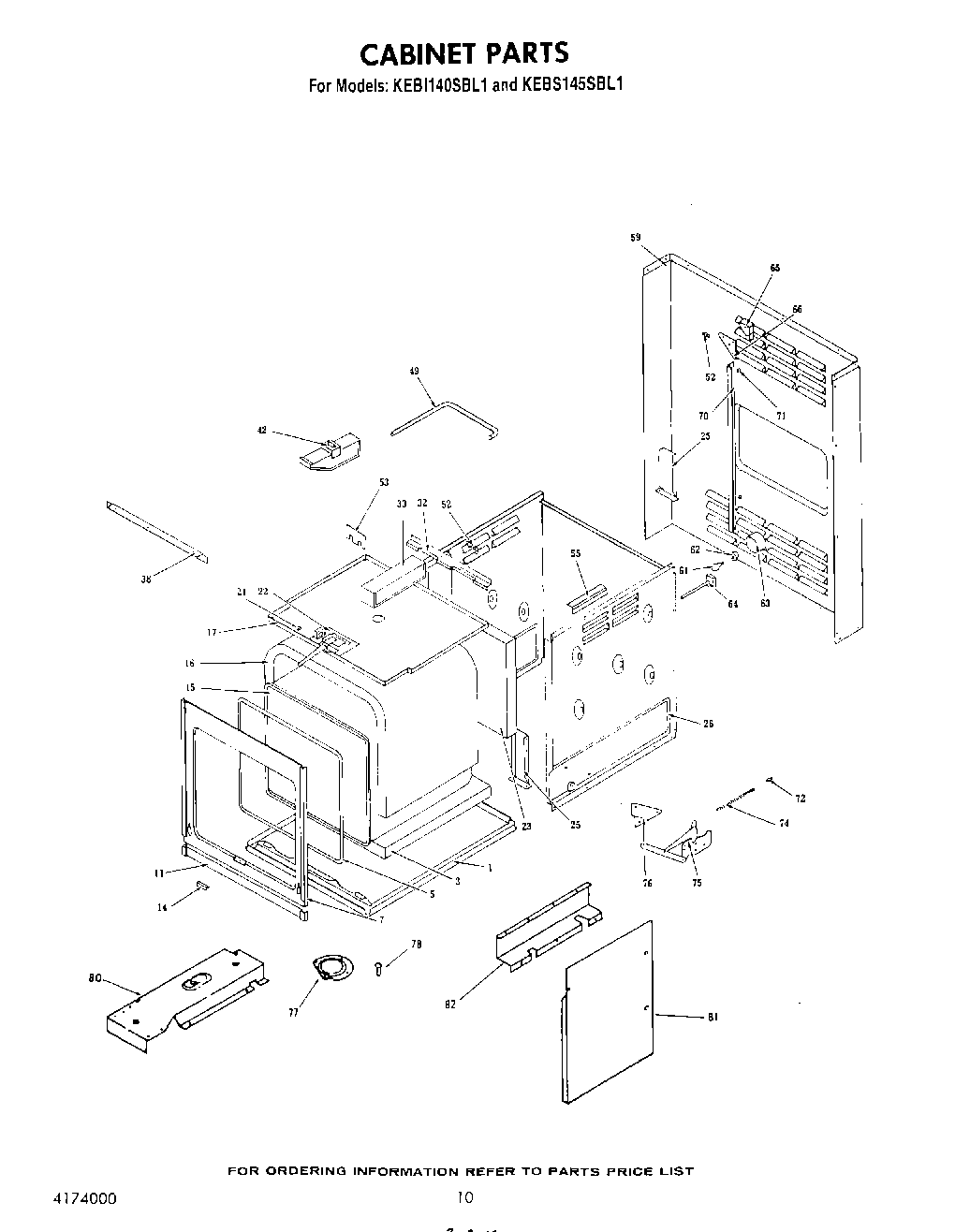

KEBS145SBL1 08 – CABINET

Products

PositionProduct
1Main Bottom
3Insulation, Bottom
5Door Gasket, Upper And Lower Oven
7Front Frame
11Bottom Trim
14Cover, Seal End
15Oven Liners (See Pages 8 & 9 For Further Breakdown)
16Insulation, Top and Sides
17Compartment Top (Upper Oven)
21Knob, Latch Lever
22Latch Assembly (See Latch Parts On Pages 6 & 7 For Further Breakdown)
23Insulation, Rear
25Rear Anchor
26Cabinet Side (Upper Oven)
32Front Frame Support
33Collector Box
38Control Frame Support
42Vent Box
49Vent Tube (Upper Oven)
52Conduit Clamp
53Vent Tube Mounting Bracket
55Cabinet Side Extension
59Cabinet Back
61Lamp, Fluorescent
62Socket, Lamp
63Light Shield
64RT Thermostat
65Rotisserie Motor
66Rotisserie Motor Mounting Plate
70Cabinet Support (Right)
70Cabinet Support (Left)
71Spacer
72Spring, Anchor
74Door Spring (Self Cleaning Oven)
75Hinge Assembly
76Cam Plate (Left Left)
76Cam Plate (Right)
77Probe Cover
78Vent, Lower Trim (Screw (2))
80Air Duct (Upper Oven) (Left Air Duct (Lower Oven))
80Air Duct (Upper Oven) (Right)
81WPL 4173016
81WPL 4173017
82Air Baffle Channel
