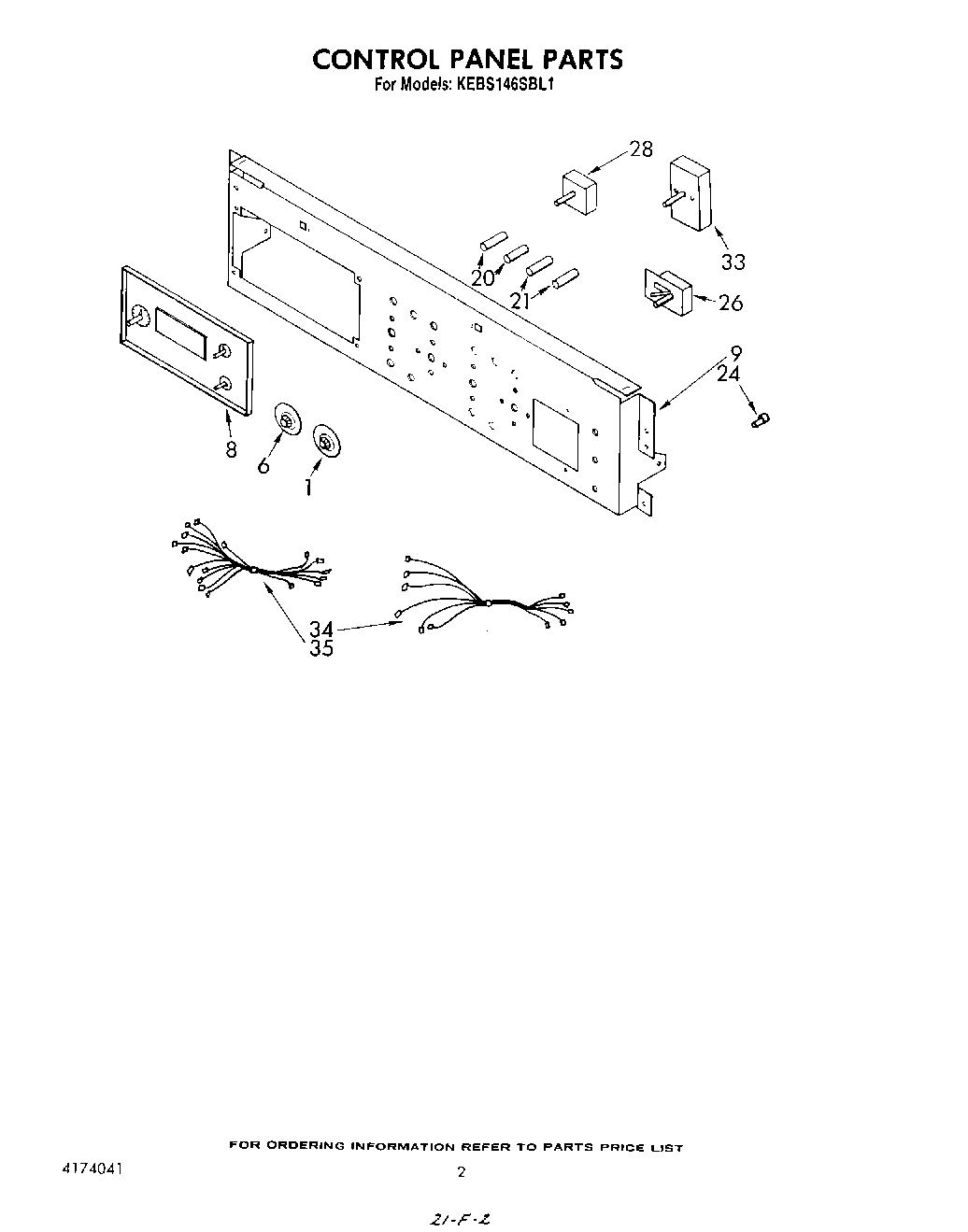

KEBS146SBL1 02 – CONTROL PANEL

Products

PositionProduct
1Thermostat Disc Lower Oven
6Selector Disc Single Oven (Model KEBS145SBL1)
8Clock
9Control Mounting Panel
20Indicator Light,
21indicator light (2)
24Oven Light Switch
26Meat Probe Indicator (Model KEBS145SBL1)
28Switch, Selector
33Thermostat, Upper Oven
34Harness, Wiring (High Temp) (KEBS176SBL1)
35wiring harness, low temp
