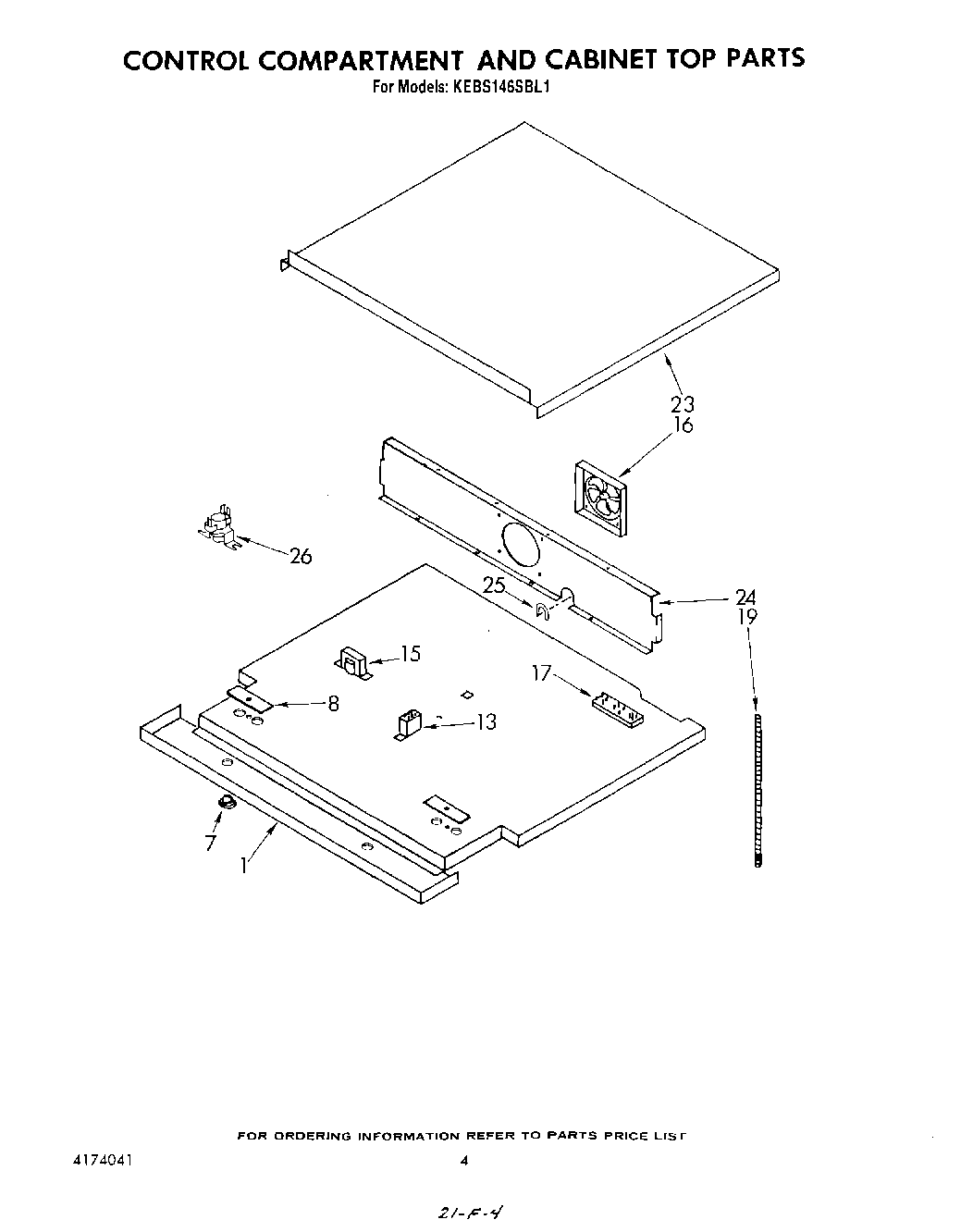

KEBS146SBL1 04 – CONTROL COMPARTMENT AND CABINET TOP

Written by

Products

Position	Product
1	Sandwich Panel
7	Bushing
8	Hole Cover
13	Relay, Meat Probe
15	Transformer, Meat Probe Model KEBS145SBL1
16	Blower
17	Terminal Block, Power Supply
19	Conduit, 1/2“ X 56“
23	Cabinet Top, Front
24	Panel, Blower Mounting
25	Bushing, Flexible
26	Switch, Fan
