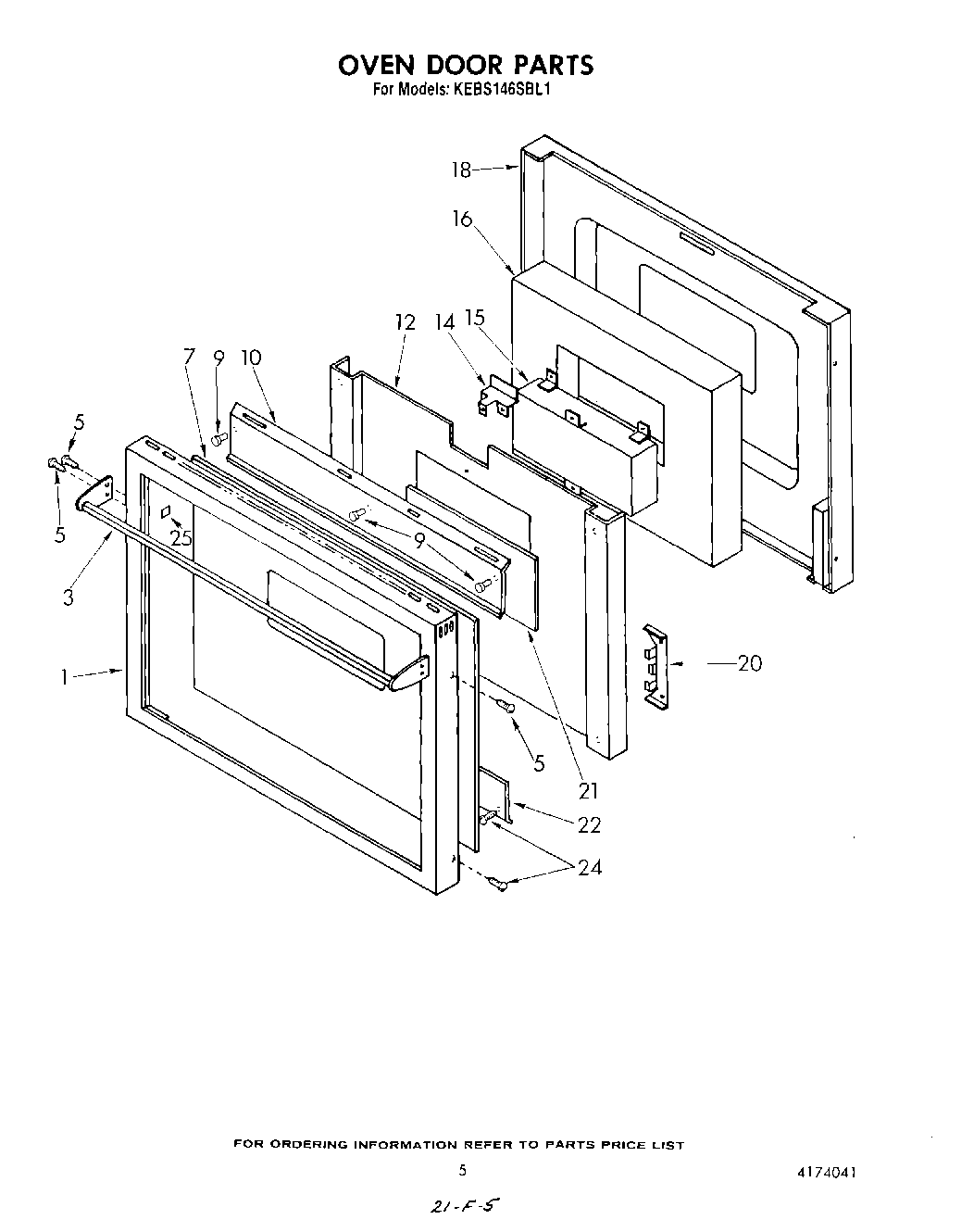

KEBS146SBL1 05 – OVEN DOOR , LIT/OPTIONAL

Products

Position	Product
1	Door Frame
3	door handle
5	Screw, 8-32 X 3/8“ PFHMS
7	Door Glass
9	Rubber Bumper
10	Air Baffle
12	Insulation Retainer
14	Bracket, Lock
15	Window Pack
16	Insulation
18	Door Liner
20	Bracket, Glass Mtg.
21	Glass, Reflective
22	Air Baffle Bottom
24	Vent, Lower Trim (Screw (2))
25	Insert (4)
