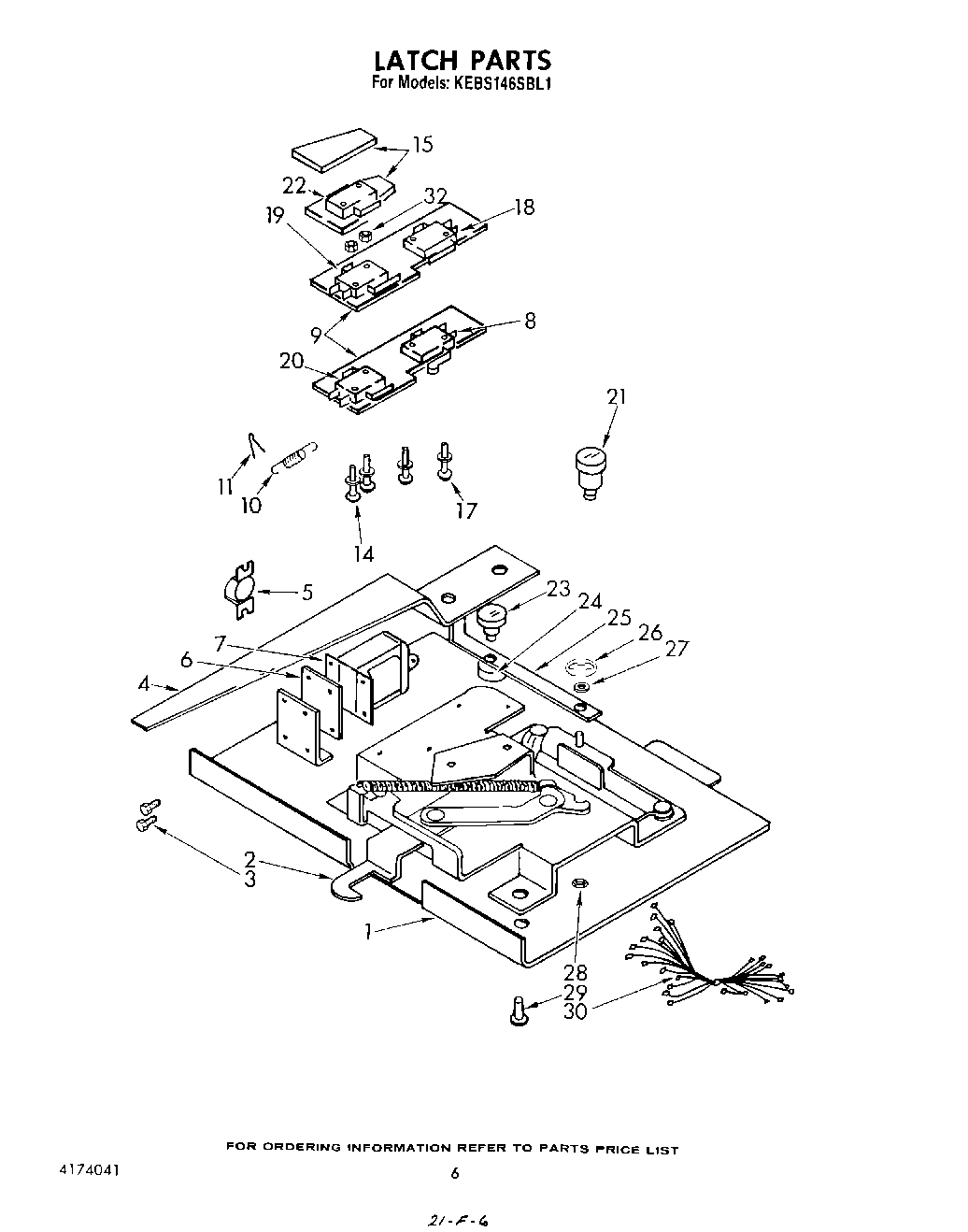

KEBS146SBL1 06 – LATCH

Products

Position	Product
1	Latch Mounting Plate
2	Mechanism, Latch
3	Screw, No.10-24 X 3/8“ Hex TCS
4	Latch Lever
5	Thermal Switch
6	Solenoid Spacer
7	Solenoid
8	Latch Switch With Roller
9	Insulator (2)
10	Solenoid Spring
11	Cotter Pin
14	Machine Screw, 4-40 X 1 3/4
15	Insulator
17	Screw, No.4-40 X 1 1/4“ Hex
18	Latch Switch
19	Latch Switch, Normally Open
20	Latch Switch (2)
21	Shoulder Screw Latch Lever Upper Oven
22	Latch Switch,
23	Shoulder Screw, Actuator Arm
24	Spacer, Actuator Arm
25	Actuator Arm
26	Retaining Ring
27	Washer, Flat
28	Nut, No.10-24 Hex Kep
29	Screw, No.10-24 X 3/8“ PTHMS
30	wiring harness, upper latch
32	Nut (2)
