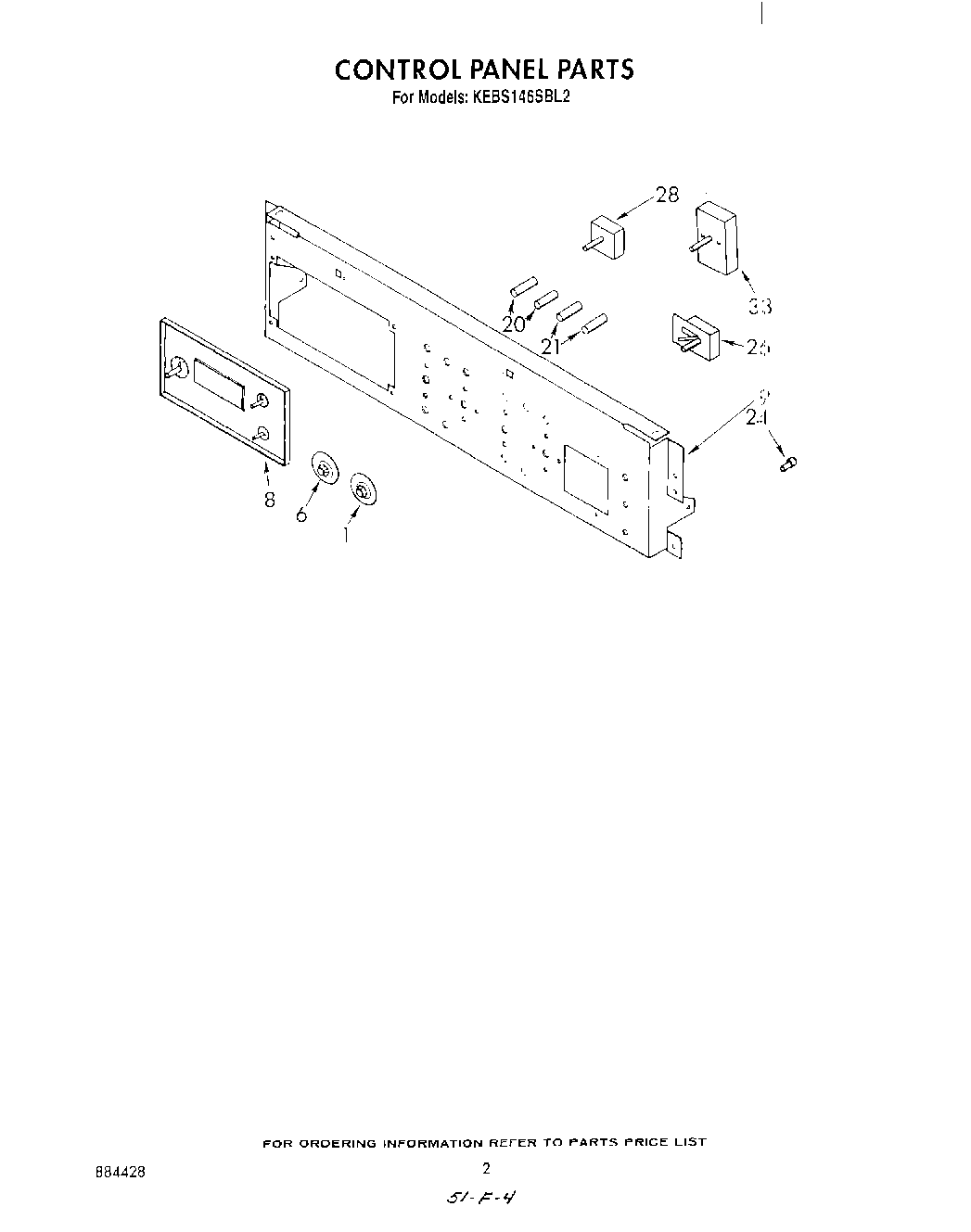

KEBS146SBL2 02 – CONTROL PANEL , LIT/OPTIONAL

KEBS146SBL2 02 – CONTROL PANEL , LIT/OPTIONAL

Written by

in

KEBS146SBL2 02 – CONTROL PANEL , LIT/OPTIONAL

Products

PositionProduct
List, Repair Parts
Cookbook
Installation Instructions
Use & Care Guide
1Thermostat Disc Lower Oven
6Selector Disc Single Oven (Model KEBS145SBL1)
8Screw (2)
8nut (3)
8Clock
8Nut, Timer (4)
9Control Mounting Panel
9Screw,
20Indicator Light,
21Indicator Light (2)
24Oven Light Switch
26Meat Probe Indicator (Model KEBS145SBL1)
26Screw, (2)
28Switch, Selector
33Thermostat, Upper Oven
33WP486579 Whirlpool Air Conditioner Screw
