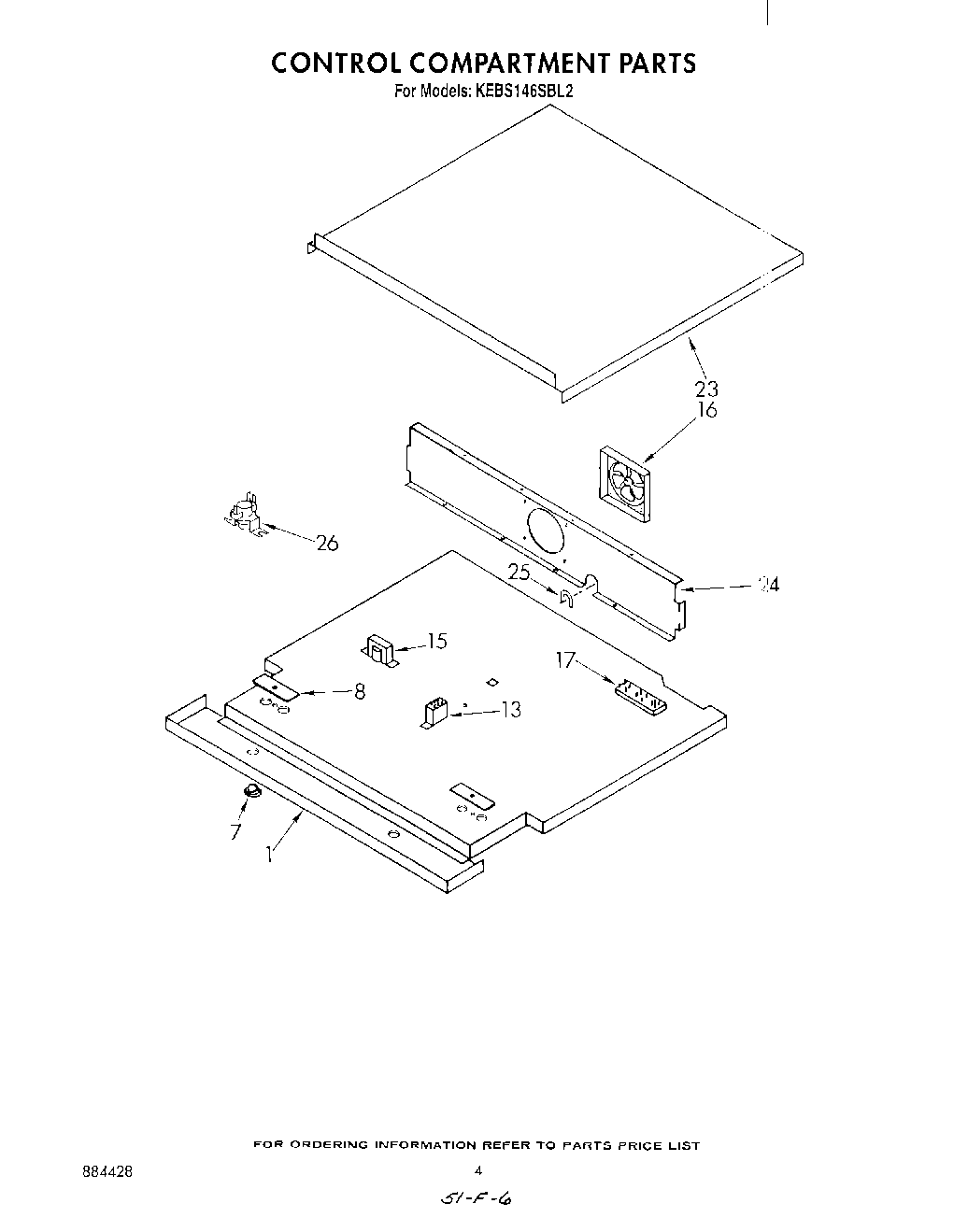

KEBS146SBL2 04 – CONTROL COMPARTMENT

Products

PositionProduct
1Sandwich Panel
7Bushing
8Hole Cover
13Relay, Meat Probe
15Wire Clamp
15Transformer, Meat Probe Model KEBS145SBL1
16Blower
17Wire, Bare 10 GA. 65“
17Wire Assembly 10 GA. 70“
17Wire Assembly 10 GA. 70“
17Wire Assembly 10 GA. 70“
17Terminal Block, Power Supply
23Cabinet Top, Front
24Panel, Blower Mounting
25Bushing, Flexible
25Screw (4)
26Switch, Fan
26Screw, (2)
