KEBS146SBL2 05 – OVEN DOOR

KEBS146SBL2 05 – OVEN DOOR

Written by

in

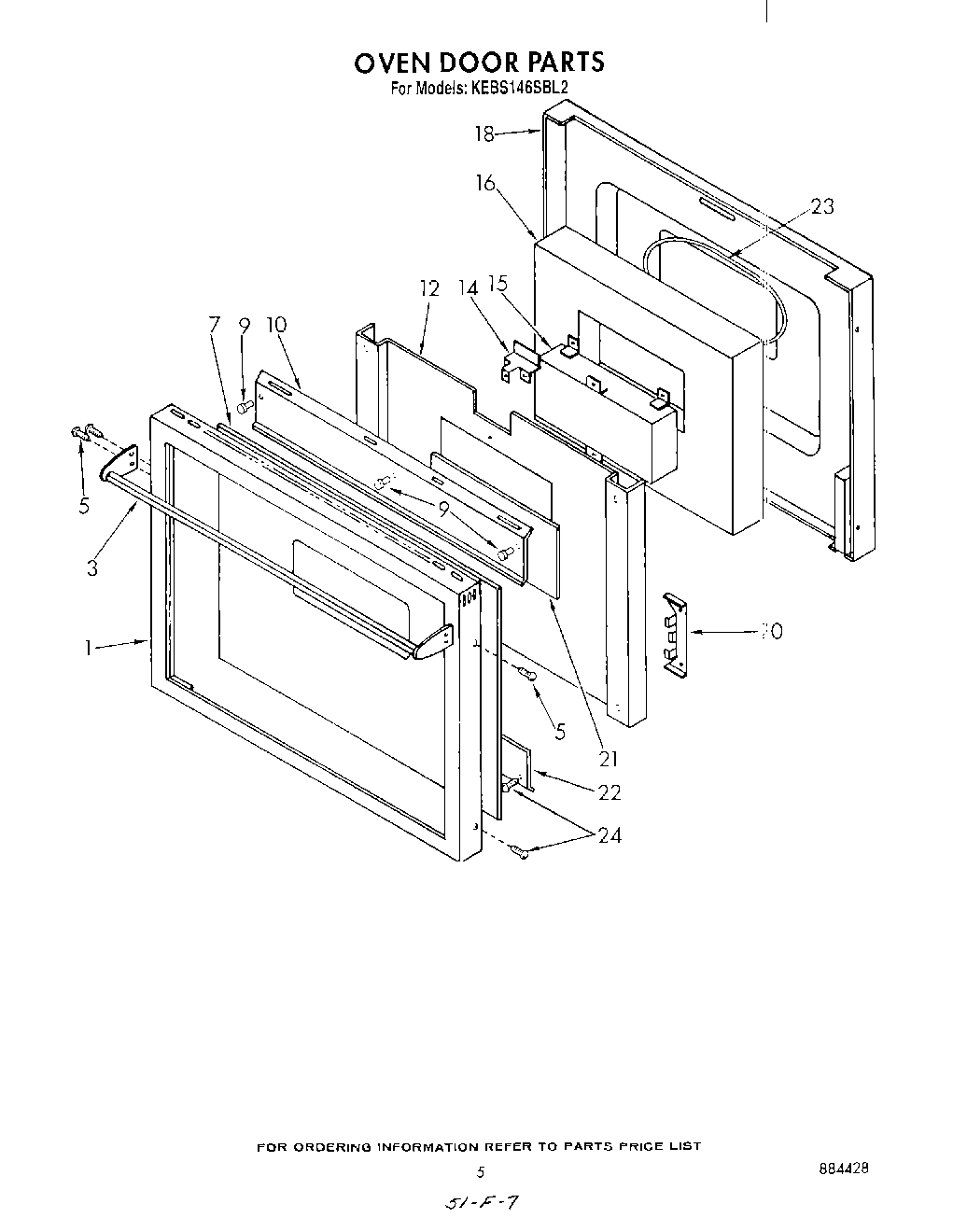

KEBS146SBL2 05 – OVEN DOOR

Products

Position	Product
1	Door Frame
3	door handle
5	Screw, 8-32 X 3/8“ PFHMS
7	Door Glass
9	Rubber Bumper
10	Air Baffle
12	Insulation Retainer
14	Bracket, Lock
15	Window Package
16	Insulation
18	Liner, Door
20	Screw, (2)
20	Bracket, Glass Mtg.
21	Glass, Reflective
22	Air Baffle Bottom
23	Seal, Window
24	Vent, Lower Trim (Screw (2))
