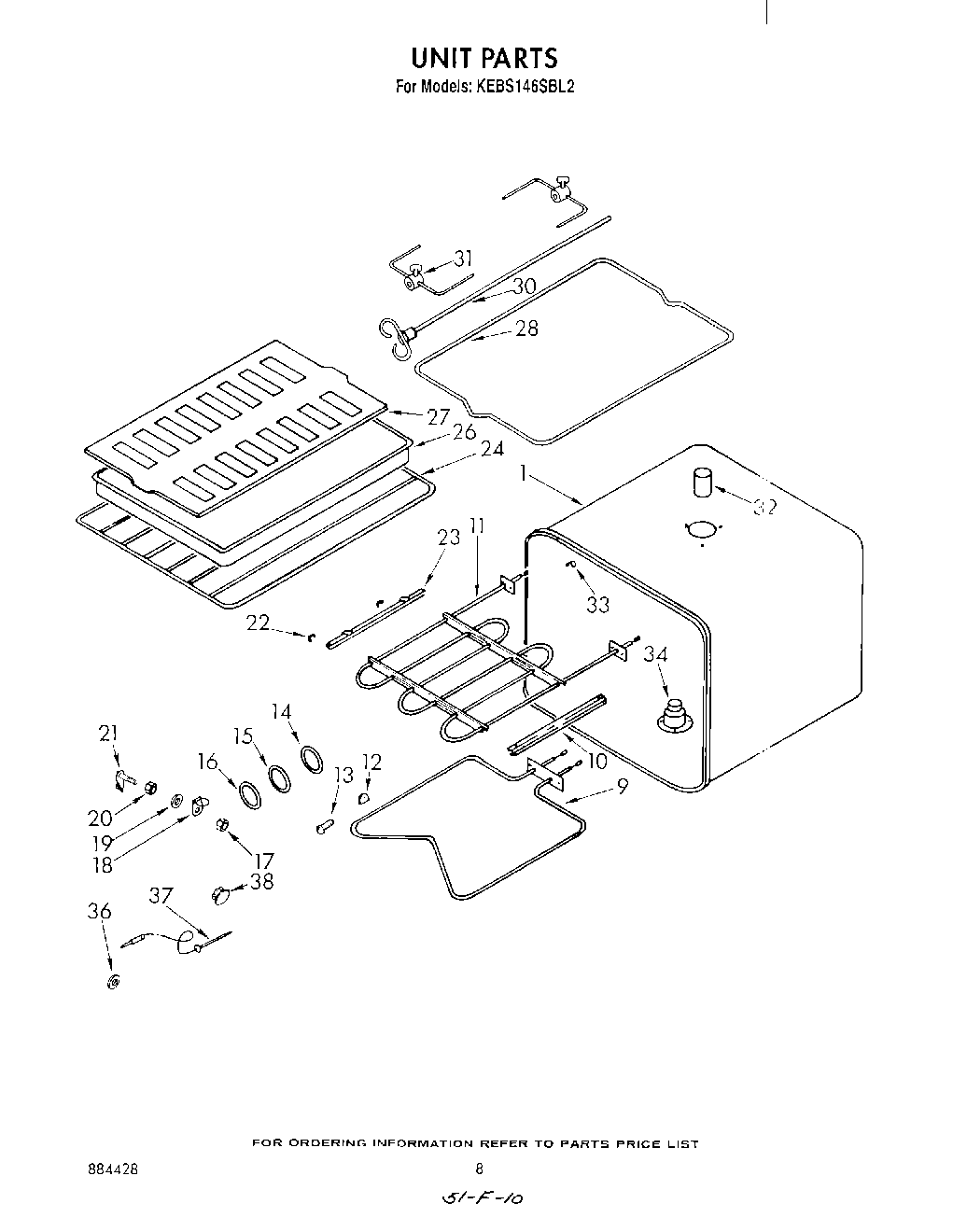

KEBS146SBL2 07 – UNIT

Written by

Products

Position	Product
1	Liner, Oven
9	WP3177420 Whirlpool Bake Element
10	Broiler Element Support-Right
11	Element, Broil
12	Plate, Cover
13	Shoulder Screw
14	Light Lens Gasket
15	Light Lens
16	Light Lens Retainer
16	Screw (3)
17	Lock-Nut, Cvr.Jack
18	Jack Cover
19	Washer
20	Nut, Hex Jam (2)
21	Meat Probe Jack Model KEBI145SBL1
22	Clip, Thermostat Bulb
23	Broiler Element Support-Left
24	Rack, Oven
26	4396923 Whirlpool Broil Pan Set Gray Porcelain
28	Rotisserie Rack Model KEBS145SBL1
30	Rotisserie Spear
31	Rotisserie Skewer
32	Screw, (2)
32	Vent Tube Extension
33	Cover, Cap Tube
33	Screw
34	Smoke Eliminator (Upper Oven)
36	Gasket, Meat Probe
37	Meat Probe
38	Plug Button (5/8“ Hole)
