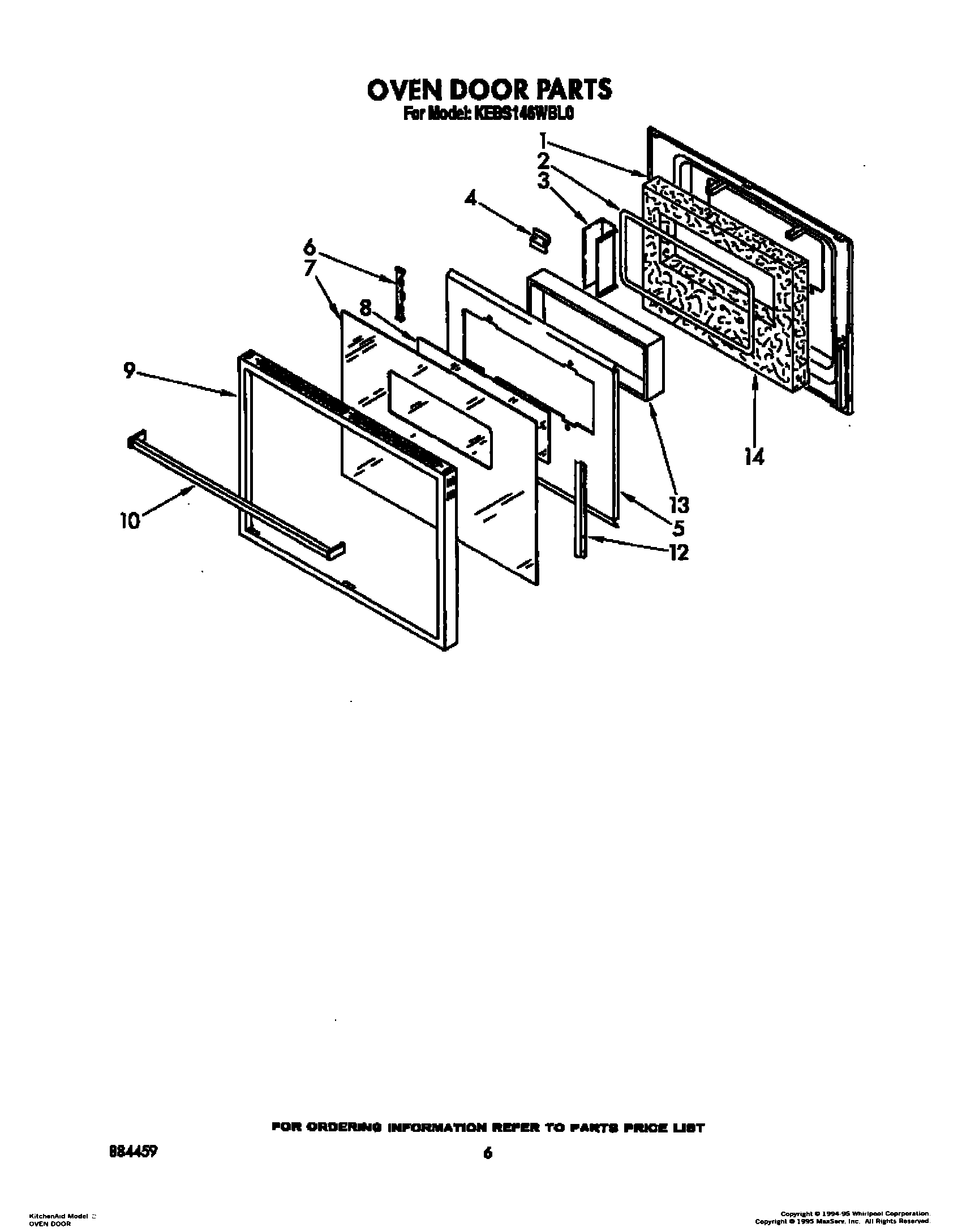

KEBS146WBL0 04 – OVEN DOOR

KEBS146WBL0 04 – OVEN DOOR

Written by

in

KEBS146WBL0 04 – OVEN DOOR

Products

PositionProduct
1Liner, Door
1Screw, Black (2)
2Seal, Window
3Spacer, Window
4Latch, Strike
5Retainer, Insulation
6WP90767 Whirlpool Screw
6Bracket, Glass Mtg.
7Glass, Door
8Glass, Reflective
9Frame, Door
10Handle, Door
10Handle, Door (Screw)
12Vent, Lower Trim (Screw (2))
12Screw (6)
12Retainer, Glass
13Window Package
14Insulation, Door
