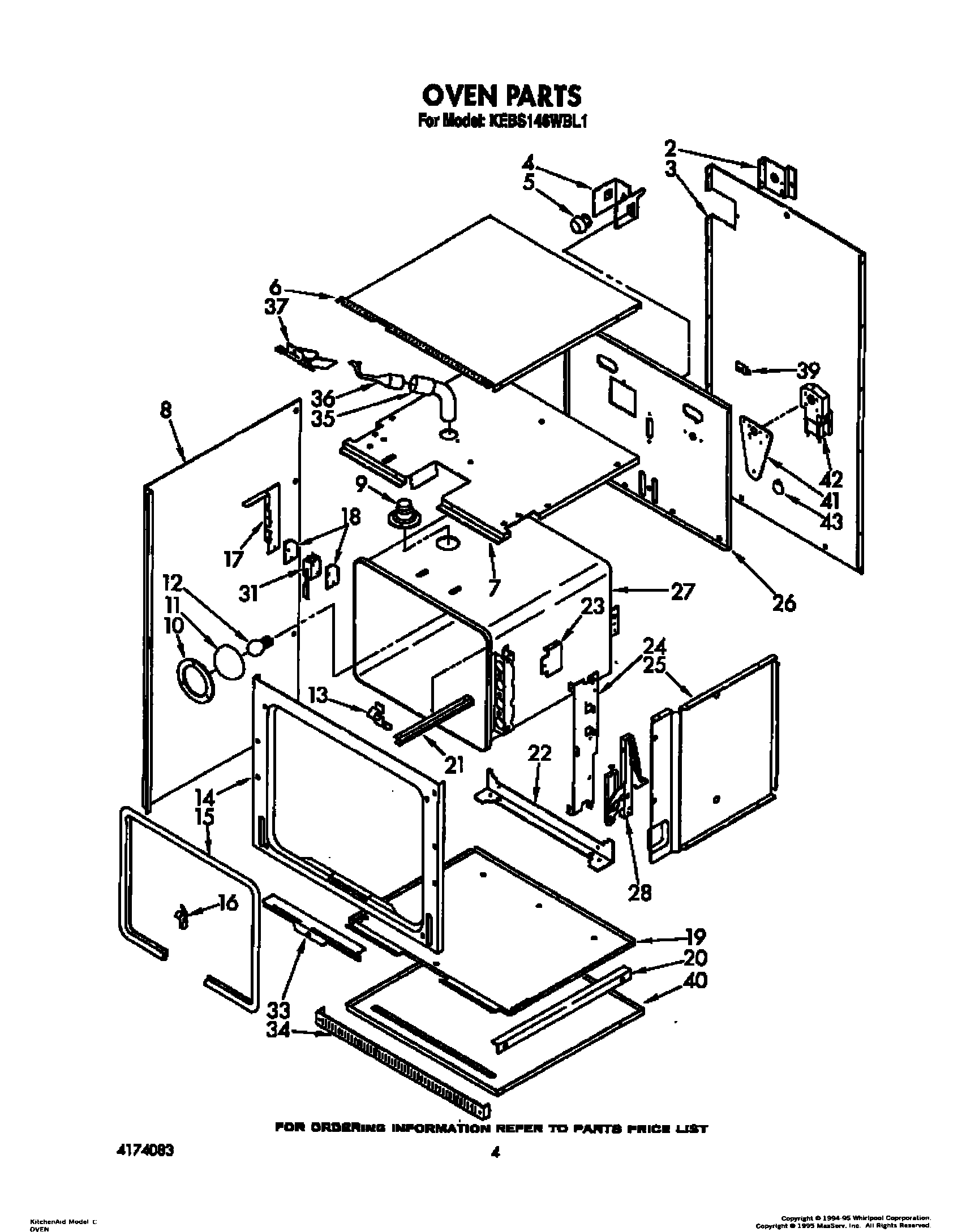

KEBS146WBL1 03 – OVEN

Products

Position	Product
2	Bracket, Conduit
3	Cabinet, Back
4	Housing, Light
5	Socket, Light
6	Cabinet, Top
7	Top, Module
8	Side, Cabinet (R.H. & L.H.)
9	Smoke Eliminator (Upper Oven)
10	Retainer, Glass
11	Light Lens
12	RANGE ONLY 40W 120V APPL BULB
13	98005642 Whirlpool Clip
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
21	Screw (3)
21	Broiler Element Support-Right
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
27	Liner, Oven
28	Hinge, Door
28	Screw (6)
31	Screw (2)
31	Nut (2)
31	Switch, Door
33	Screw
33	Screw (4)
33	Retainer, Seal
34	Vent, Lower Trim (Black Model)
34	Vent, Lower Trim (Screw (4))
34	Vent, Lower Trim (Screw (2))
35	Vent, Tube (Upper, Female)
36	Vent, Tube (Upper, Male)
37	WP90767 Whirlpool Screw
37	Shield, Vent
39	Screw
39	Cover, Cap Tube
40	Bottom, Oven
41	Rotisserie Motor Mounting Plate
42	WP488234 Whirlpool Air Conditioner Screw
42	Rotisserie Motor
42	Washer, Lock Tooth
43	WPL 3177870
43	Plate, Cover
43	Shoulder Screw
43	Insulation, Wrap
