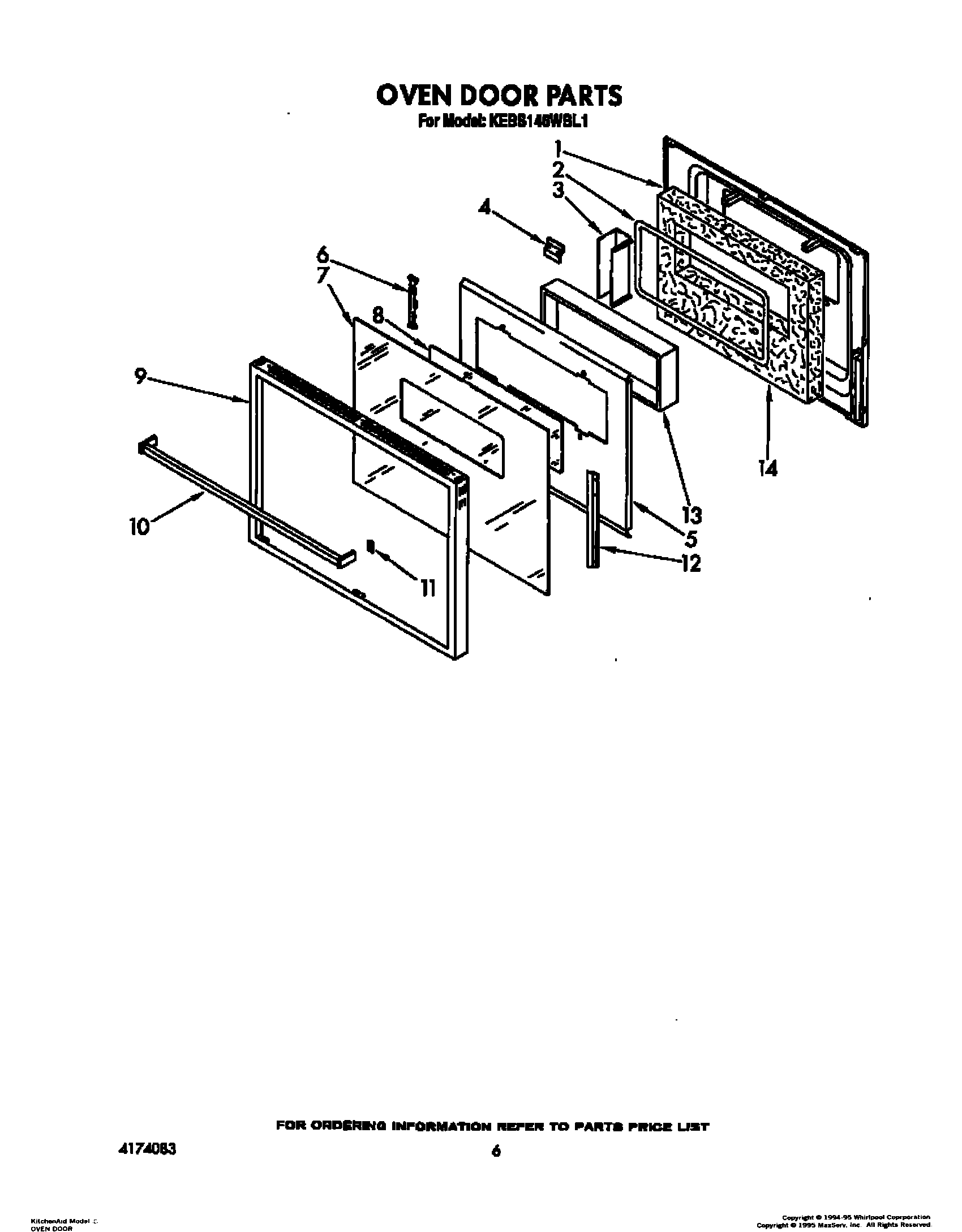

KEBS146WBL1 04 – OVEN DOOR

KEBS146WBL1 04 – OVEN DOOR

Written by

in

KEBS146WBL1 04 – OVEN DOOR

Products

Position	Product
1	Liner, Door
1	Screw, Black (2)
1	Vent, Lower Trim (Screw (2))
2	Seal, Window
3	Spacer, Window
4	Latch, Strike
5	Retainer, Insulation
6	WP90767 Whirlpool Screw
6	Bracket, Glass Mtg.
7	Glass, Door
8	Glass, Reflective
9	Frame, Door
10	Handle, Door
10	Handle, Door (Screw)
11	Spacer (2)
12	Screw (6)
12	Retainer, Glass
13	Window Package
14	Insulation, Door
