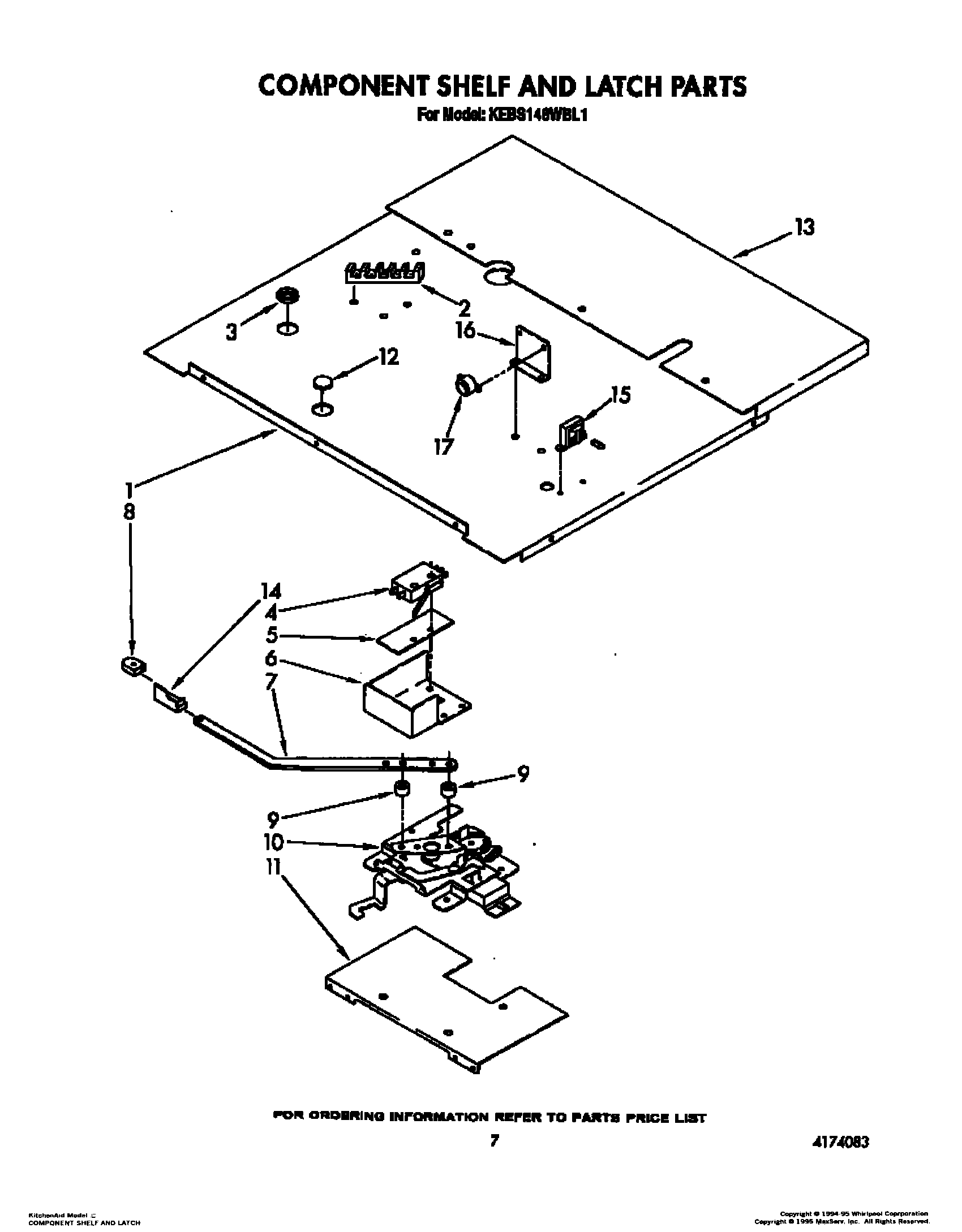

KEBS146WBL1 05 – COMPONENT SHELF AND LATCH

KEBS146WBL1 05 – COMPONENT SHELF AND LATCH

Written by

in

KEBS146WBL1 05 – COMPONENT SHELF AND LATCH

Products

PositionProduct
1Shelf, Component
2WP8203546 Whirlpool Terminal Block
2W10841059 Whirlpool Screw
3Bushing
4Switch, Latch
4Screw
5Insulator, Switch
6Screw,
6Guard, Latch
7Screw (2)
7Handle, Latch
7WP90767 Whirlpool Screw
7Screw, 8-18 X 3/4 (4)
8Knob, Latch Handle
9Spacer, Handle (2)
10Latch, Mechanism
11Plate, Mounting
12Plug, Button
13Extension, Shelf
14Support, Latch
14WP488234 Whirlpool Air Conditioner Screw
15WP3177991 Whirlpool Screw
15Transformer
16Bracket, Buzzer
16Screw (2)
17Buzzer, Meat Probe
