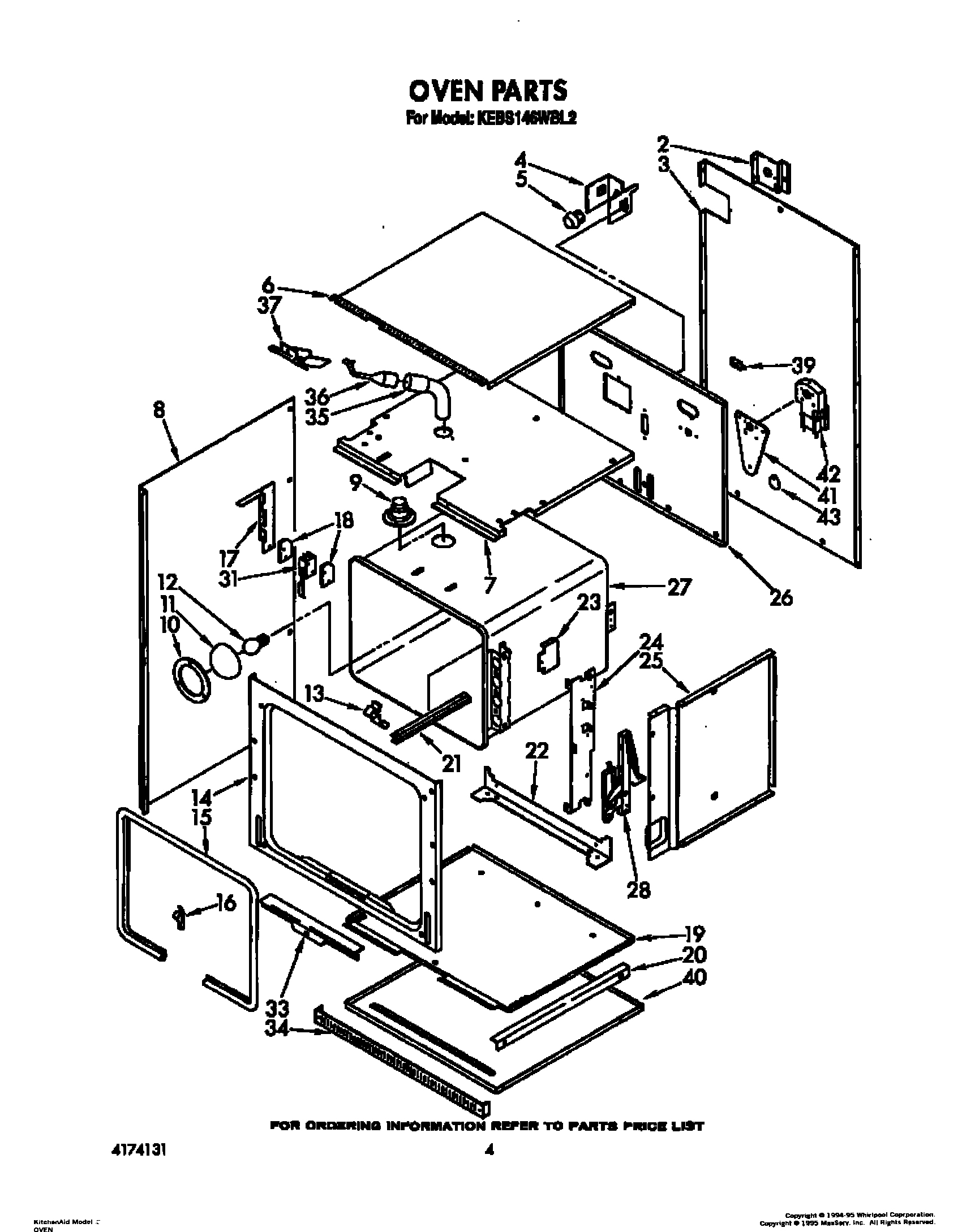

KEBS146WBL2 03 – OVEN, OPTIONAL

KEBS146WBL2 03 – OVEN, OPTIONAL

Written by

in

KEBS146WBL2 03 – OVEN, OPTIONAL

Products

Position	Product
2	Bracket, Conduit
3	Cabinet, Back
4	Housing, Light
5	Socket, Light
6	Cabinet, Top
7	Top, Module
8	Side, Cabinet (R.H. & L.H.)
9	Smoke Eliminator (Upper Oven)
10	Retainer, Glass
11	Light Lens
12	RANGE ONLY 40W 120V APPL BULB
13	98005642 Whirlpool Clip
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
19	Bottom, Modual
20	Rail, Support (2)
21	Screw (3)
21	Broiler Element Support-Right
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
27	Liner, Oven
28	Hinge, Door
28	Screw (6)
29	Plug, Button
31	Switch, Door
31	Nut (2)
31	Screw (2)
32	Insulator, Switch
33	Retainer, Seal
33	Screw (4)
33	Screw
34	Vent, Lower Trim (Screw (2))
34	Vent, Lower Trim (Screw (4))
34	Vent, Lower Trim (Black Model)
35	Vent, Tube (Upper, Female)
36	Vent, Tube (Upper, Male)
37	WP90767 Whirlpool Screw
37	Shield, Vent
39	Screw
39	Cover, Cap Tube
40	Bottom, Oven
41	Rotisserie Motor Mounting Plate
42	WP488234 Whirlpool Air Conditioner Screw
42	Rotisserie Motor
42	Washer, Lock Tooth
43	Wire (12 Ga. 150 c Black)
43	Rotisserie Kit
43	WPL 832985
43	WPL 591014
43	WPL 350806
43	WPL 3177870
43	1
43	Wire (14 Ga. 200 c Brown)
43	18 Ga. 80~c Rating (Red)
43	WPL 786020
43	Wire (14 Ga. 150 c Yellow)
43	Shoulder Screw
43	350956 Whirlpool Spray Assembly
43	72017 Whirlpool Appliance Touch-Up Paint White
43	261900 Whirlpool Microwave Spray
43	Plate, Cover
43	799344 Whirlpool Refrigerator Paint
43	WP72107 Whirlpool Touchup
43	350930 Whirlpool White Spray Paint
43	WPL 786032
43	Leveler (Thinner)
43	Wire (14 Ga. 150 c Orange)
43	Toast
43	Paint, Spray (13 Oz.) (Platinum)
43	Enamal, Toast (1 Qt. Uncut)
43	Platinum (Uncut)
43	WPL 72112
43	WPL 799832
43	Wire, 25` Roll (Black 14 Ga.)
43	Wire, 25` Roll (Red 14 Ga.)
43	Wire, 25“ Roll (White 14 GA.)
43	285006 Whirlpool Spray
43	WP482338 Whirlpool Refrigerator Adhesive
43	Golden Harvest (Uncut)
43	Golden Harvest
43	Wire (14 Ga. 150 c Green)
43	Almond (Uncut)
43	Wire (14 Ga. 150 c Brown)
43	Wire (14 Ga. 150 c Blue)
43	350942 Whirlpool Spray Paint
43	WP261869 Whirlpool Microwave Paint
43	Insulation, Wrap
43	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
43	242831 Whirlpool Oven Wire
43	72113 Whirlpool Touch-Up Paint
43	72032 Whirlpool Touch Up Paint Black
