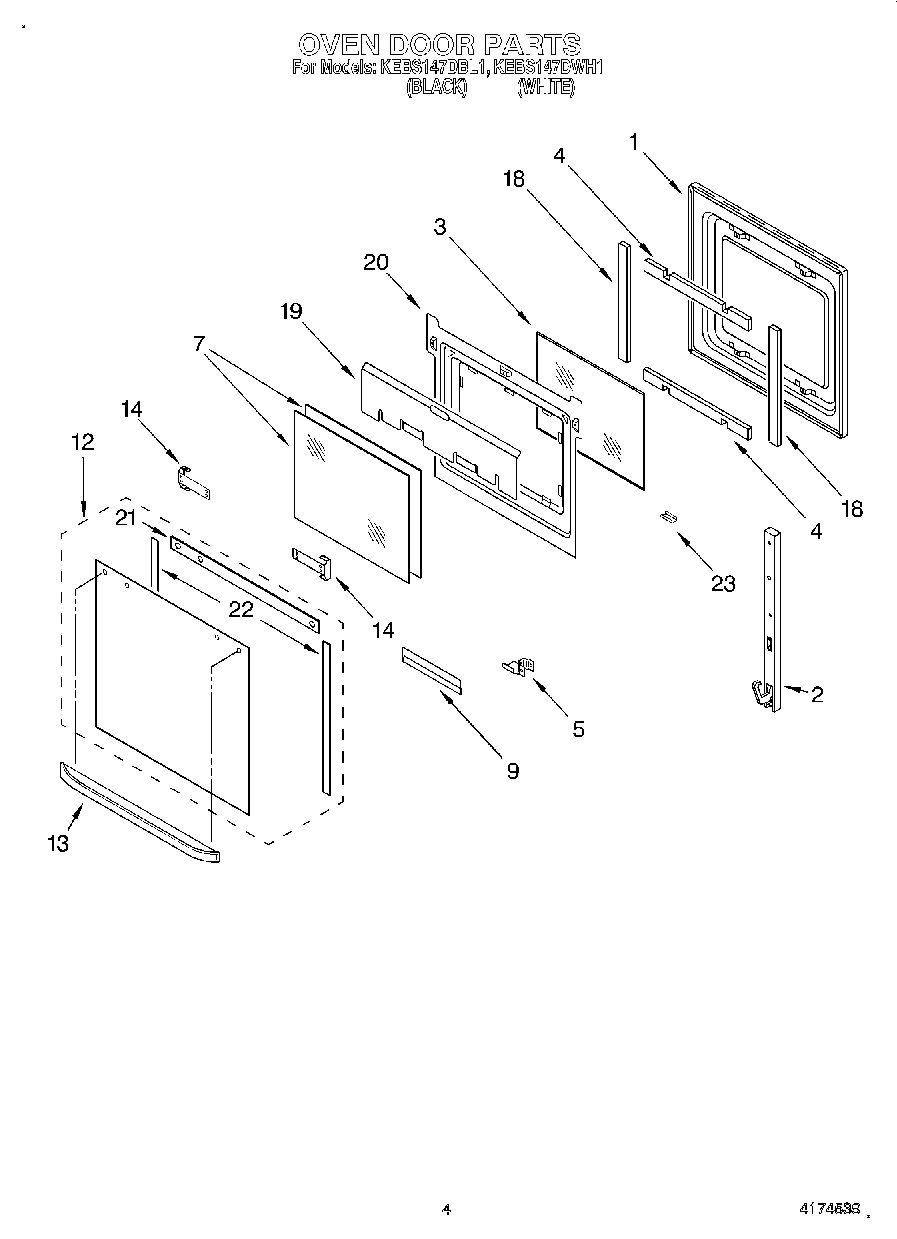

KEBS147DWH1 03 – OVEN DOORadmin2025-04-26T12:36:57+00:00KEBS147DWH1 03 – OVEN DOOR
Products
| Position | Product |
|---|
| 1 | Liner, Door |
| 2 | WP4449743 Whirlpool Screw |
| 2 | WP4455523 Whirlpool Oven Door Hinge |
| 3 | WP4449247 Whirlpool Inner Door Glass |
| 4 | Insulation, Top and Bottom Door |
| 5 | Retainer, Glass |
| 7 | Glass, Inner |
| 9 | Retainer, Glass |
| 12 | Door Glass, Outer (White Model) |
| 12 | Door Glass, Outer (Black Model) |
| 13 | Door Handle (White Model) |
| 13 | Door Handle (Black Model) |
| 14 | Bracket, Handle |
| 14 | Screw |
| 18 | W11688413 Whirlpool Insulation |
| 19 | Shield, Heat |
| 20 | Retainer, Glass |
| 20 | WP4449809 Whirlpool Screw |
| 21 | Seal, Door Top |
| 22 | Seal, Sides |
| 23 | Clip, Retainer (Black Model) |
| 23 | Clip, Retainer (White Model) |
