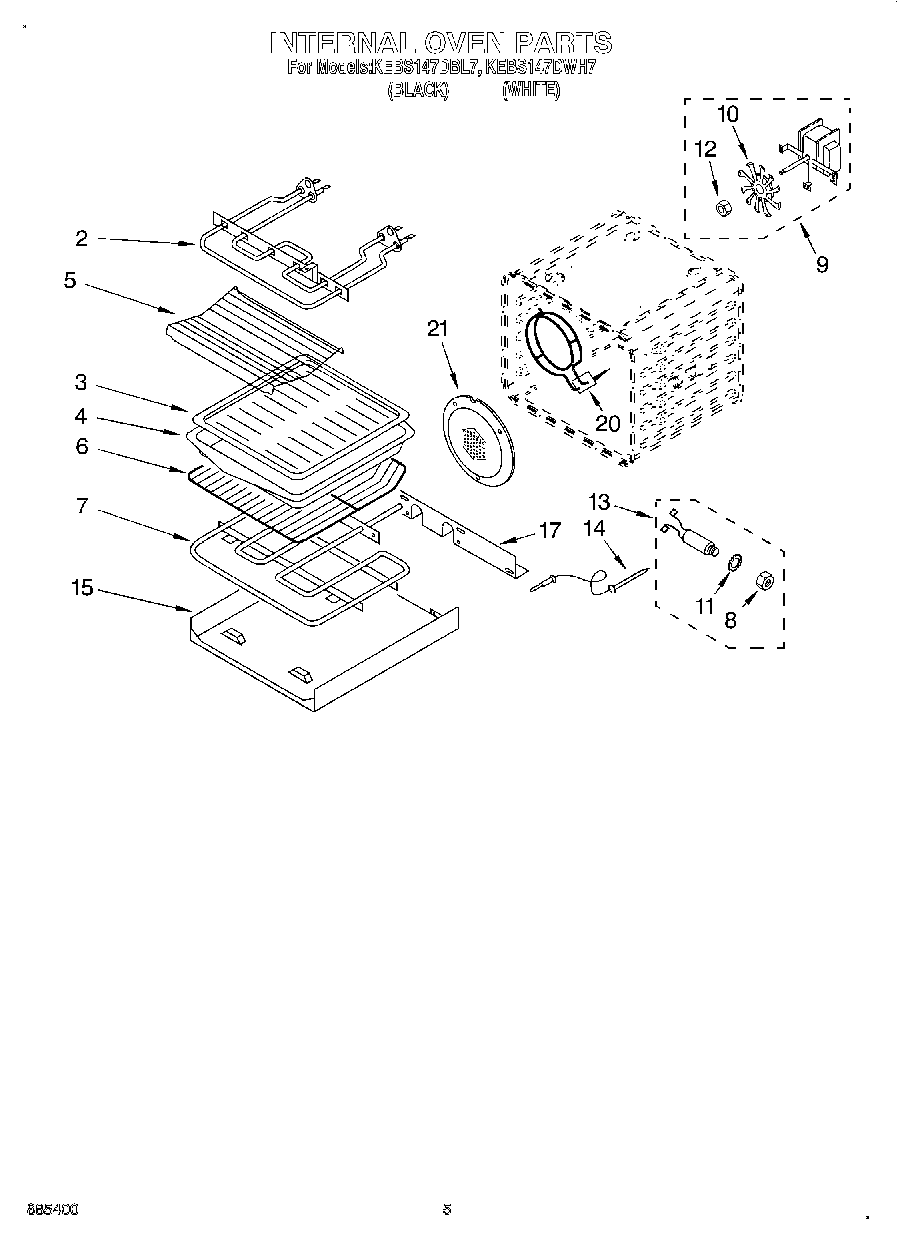

KEBS147DWH7 04 – INTERNAL OVEN

KEBS147DWH7 04 – INTERNAL OVEN

Written by

in

KEBS147DWH7 04 – INTERNAL OVEN

Products

PositionProduct
2WPW10207400 Whirlpool Broil Element
34396923 Whirlpool Broil Pan Set Gray Porcelain
5Rack, Roasting
64448716 Whirlpool Oven Rack 24"
74451175 Whirlpool Bake Element
8WP9755546 Whirlpool Locknut
9Motor Convection
10WP4452226 Whirlpool Convection Fan
11WP9755547 Whirlpool Lockwasher
12Nut
138186589 Whirlpool Jack Probe
14WP9755542 Whirlpool Oven Meat Probe
154455035 Whirlpool Bake Tray
17WP4449809 Whirlpool Screw
174450039 Whirlpool Oven Access Cover
20WP9760769 Whirlpool Element Assembly
21WP4449154 Whirlpool Screw
21WPW10160821 Whirlpool Fan Cover
