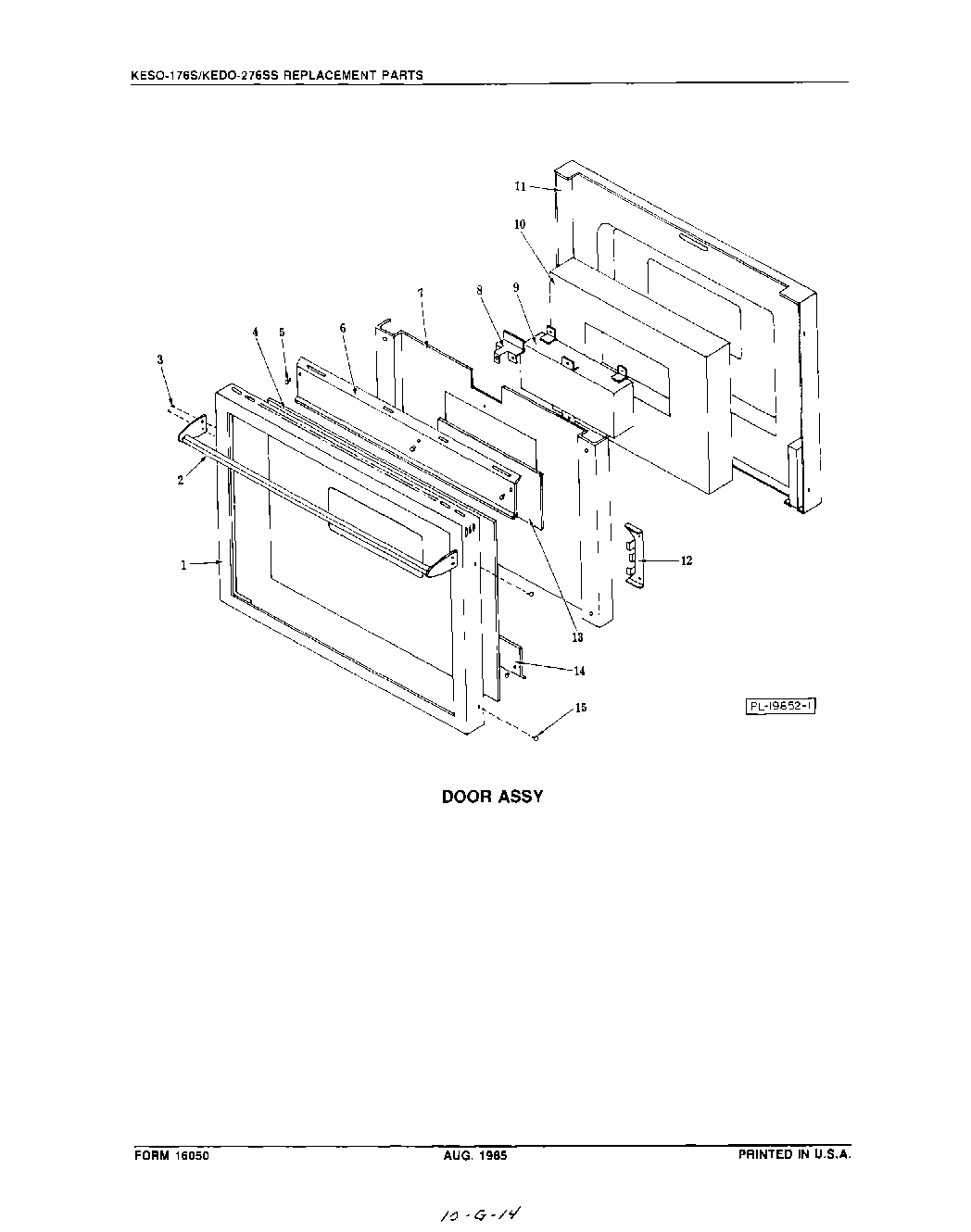

KEBS176SBL0 08 – DOOR ASSEMBLY

KEBS176SBL0 08 – DOOR ASSEMBLY

Written by

in

KEBS176SBL0 08 – DOOR ASSEMBLY

Products

PositionProduct
1Door Frame
2Door Handle KEDO-270
3Screw, 8-32 x 3/8“ PFHMS
4Door Glass
5Rubber Bumper
6Air Baffle-Top KEDO-270
7Insulation Retainer KEDO-270
8Lock Bracket
9Window Pack
10Insulation KEDO-270
11Door Liner
12Glass Mounting Bracket
13Glass Panel
14Air Baffle-Bottom KEDO-270
15Screw, 8A x 3/8“ PKESMS
